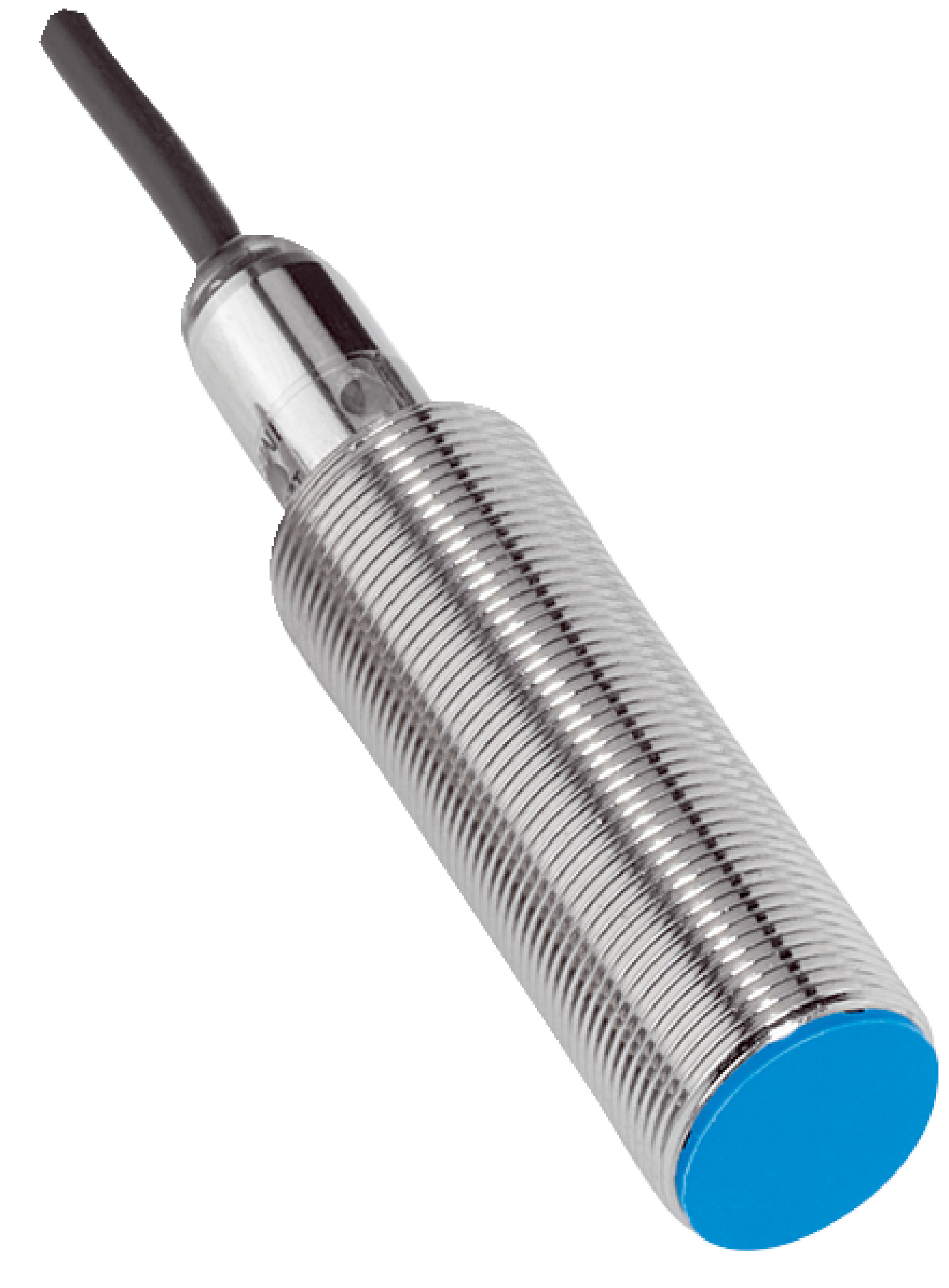

Inductive Proximity Sensor M18 | 12mm Sensing Range | IP67 Rated | NPN Output | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a 12mm sensing range and IP67 rated enclosure for dust and water protection. With a robust brass housing and low power consumption, it's perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 67 mm
- Thread length: 52 mm
- Max tightening torque: ≤ 30 Nm
- Dimensions (H x L x W): 18mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- Quasi-flush installation type
- Switching frequency up to 500 Hz
- NPN normally open switching output
- Cable connection, 3-wire, 2 meters long
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating for long service life reducing waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

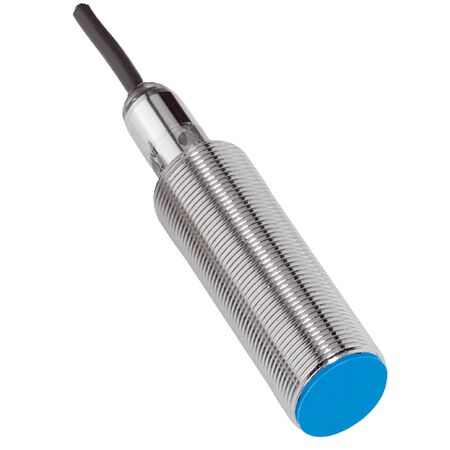

The SICK IME18-12BNSZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
