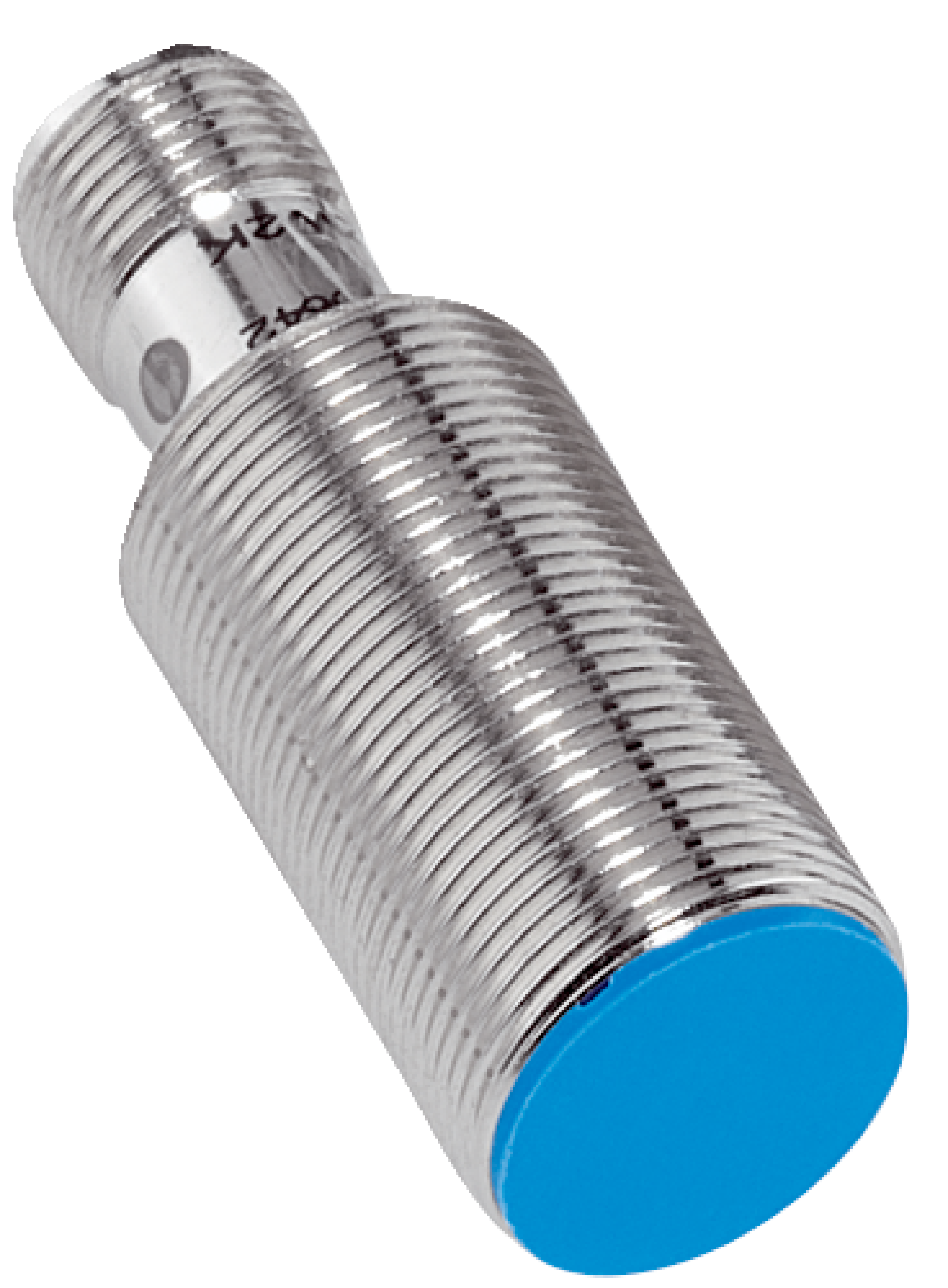

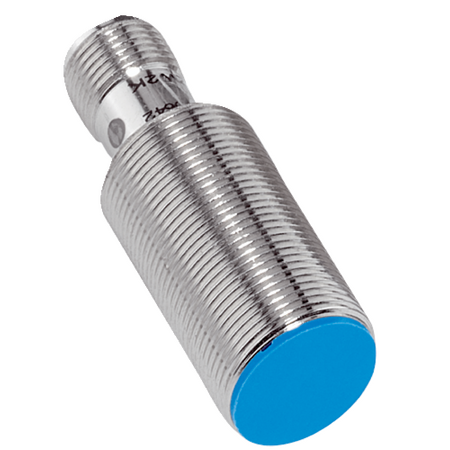

Inductive Proximity Sensor M18 | 12mm Sensing Range | IP67 Rated | PNP Output | by SICK
The Inductive Proximity Sensor M18 is designed for precise object detection with a 12mm sensing range and IP67 rated enclosure for dust and water protection. Ideal for industrial automation and metal detection applications, this sensor features a short-body housing and PNP switching output, ensuring reliable performance in manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, SICK Proximity Sensor 12mm, M18 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 50 mm
- Thread length: 33 mm
- Tightening torque max: ≤ 30 Nm
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- Quasi-flush installation type
- Switching frequency of 500 Hz
- PNP switching output with normally open function
- Male connector M12, 4-pin connection type
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Mounting nut included, brass nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against defects.
Available Now
The SICK IME18-12BPSZC0K Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
