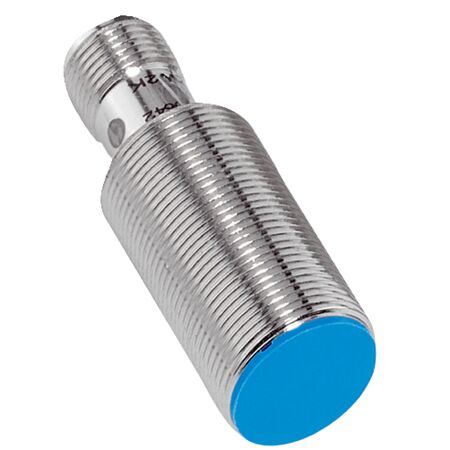

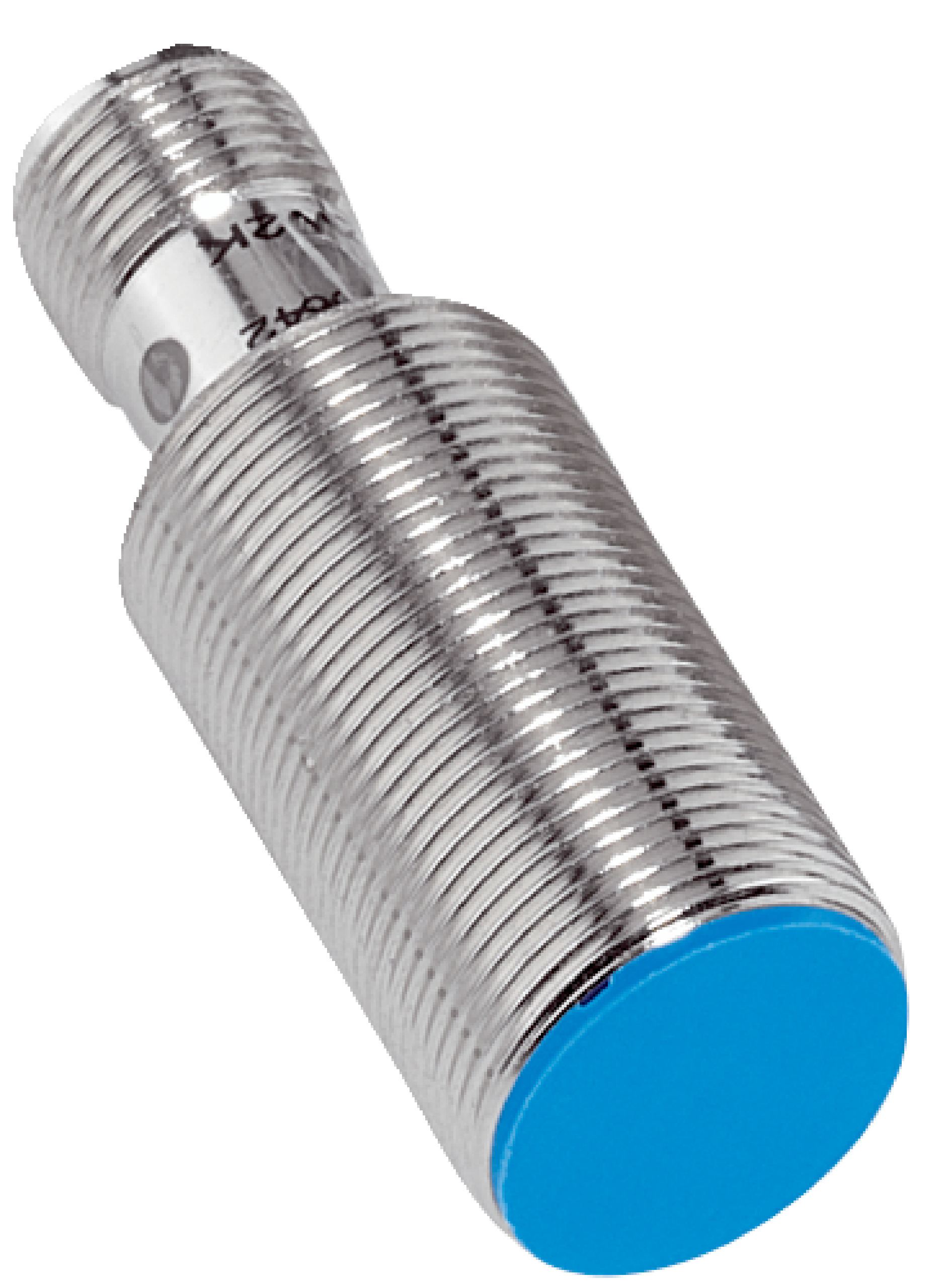

Inductive Proximity Sensor M18 | 12mm Sensing Range | IP67 Rated | PNP Output | by SICK
The Inductive Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a 12mm sensing range and an IP67 rated enclosure for dust and water protection. With a PNP output and a robust brass housing, this sensor is perfect for manufacturing lines and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 30 Nm
- Switching output: PNP, normally open
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- Quasi-flush installation type
- Switching frequency up to 500 Hz
- PNP switching output with normally open function
- Male connector M12, 4-pin connection type
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating for long service life reducing waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME18-12BPSZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
