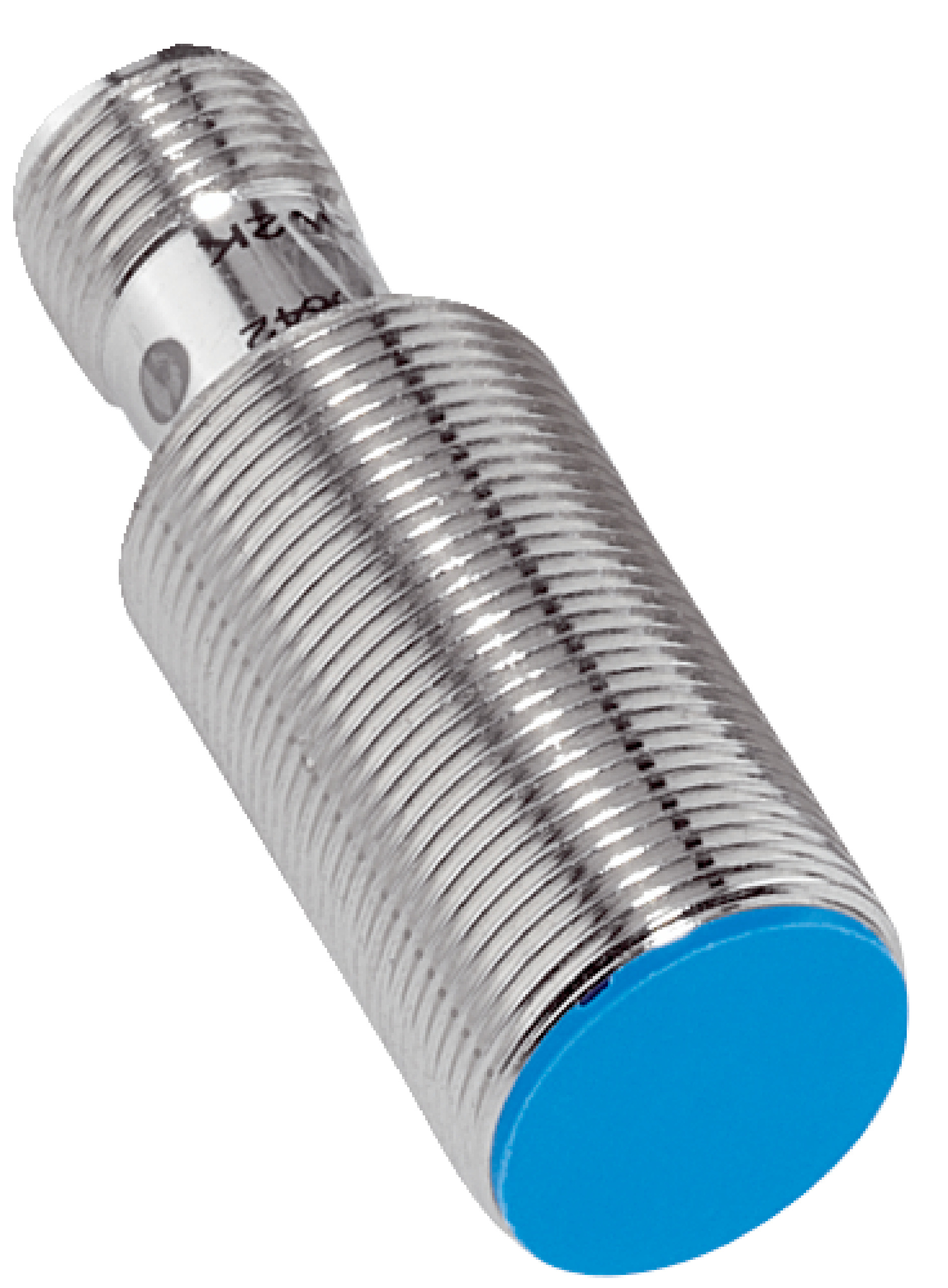

Inductive Proximity Sensor M18 | 5mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M18 is designed for precise object detection with a sensing range of 5 mm and a safe sensing range of 4.05 mm. Ideal for industrial automation and metal detection, this sensor features a robust IP67 enclosure for dust and water protection, ensuring reliable performance in harsh environments. With a high switching frequency of 1,000 Hz and PNP normally open output, it’s perfect for manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | 5mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1040933
Alternatively Known As: M18 Inductive Proximity Sensor, SICK IME18 Sensor, Proximity Switch M18, Inductive Sensor 5mm
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 5 mm
- Safe sensing range Sa: 4.05 mm
- Installation type: Flush
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 50 mm
- Thread length: 33 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range of 5 mm with safe sensing range of 4.05 mm
- Flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- Male connector M12, 4-pin connection type
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

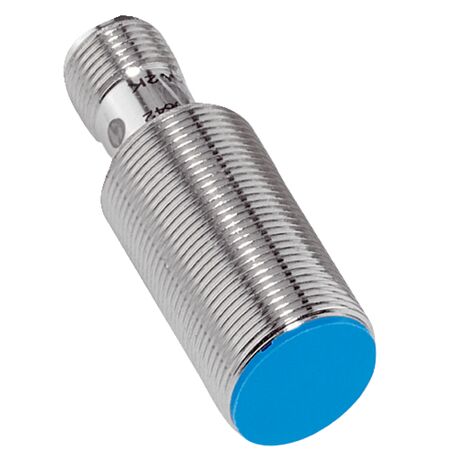

The SICK IME18-05BPSZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
