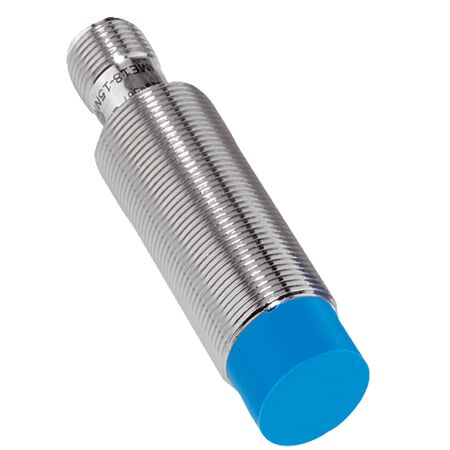

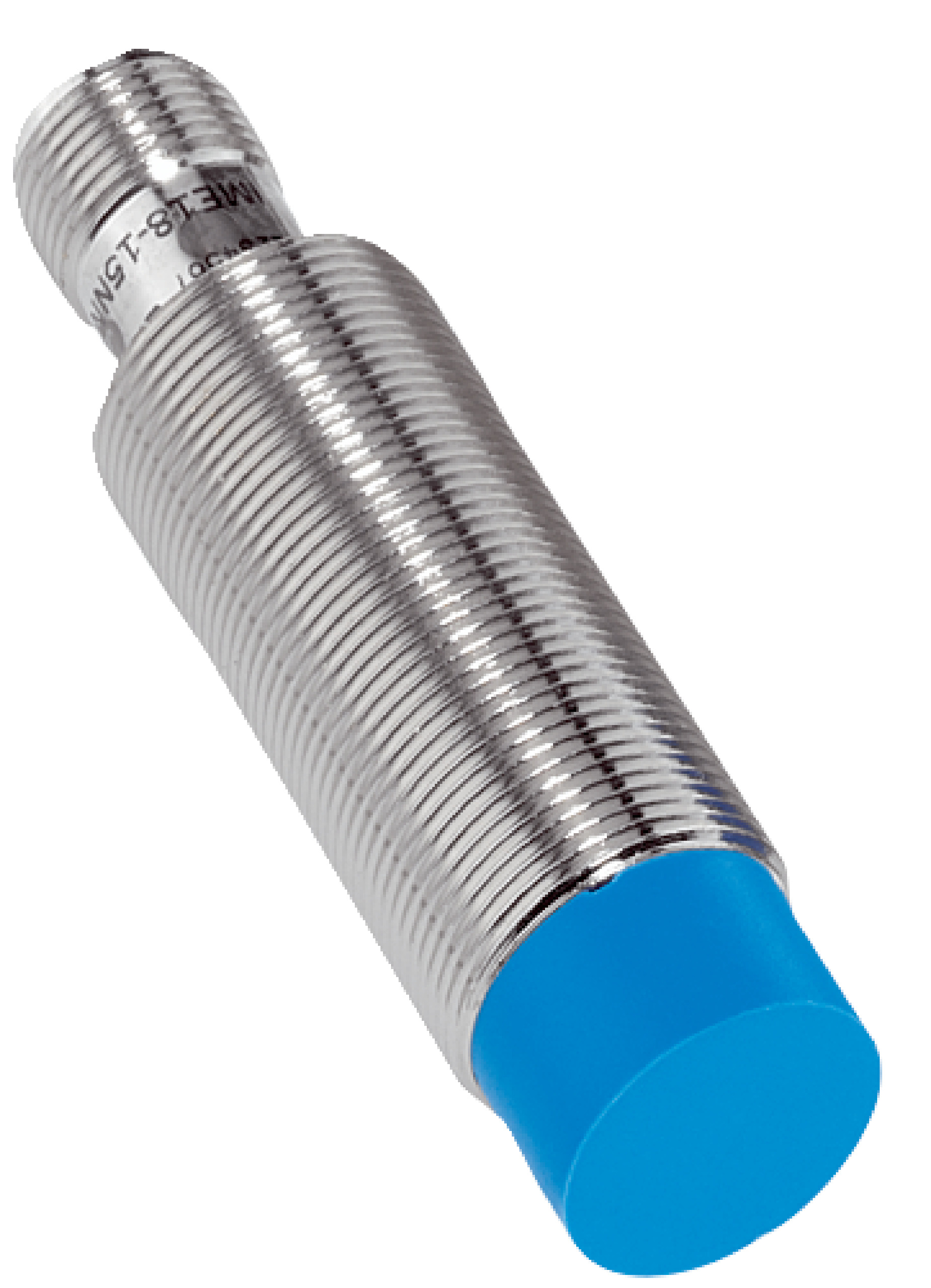

Inductive Proximity Sensor M18 | 8mm Sensing Range | IP67 Rated | 1000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for harsh environments. Perfect for position sensing and non-contact switching in manufacturing lines, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | 8mm Sensing Range | IP67 Rated | 1000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040954
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Sensor, PNP Proximity Switch, Non-flush Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 1,000 Hz
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Output function: Normally closed (NC)
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Enclosure rating: IP67
- Connection type: Male connector M12, 4-pin
- Thread length: 42 mm
- Housing length: 69 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with 8 mm sensing range
- Non-flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with NC function
- Connection via male M12, 4-pin connector
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper wiring and mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in production processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Energy-efficient operation with low current consumption
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-08NPOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
