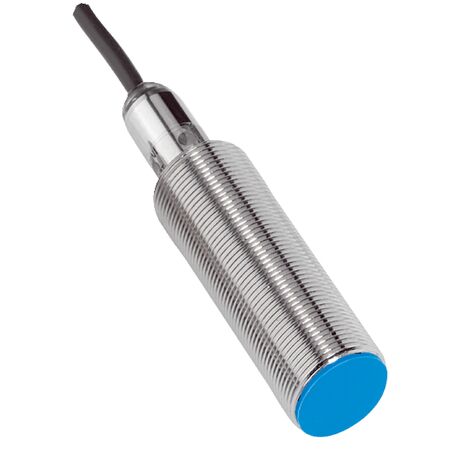

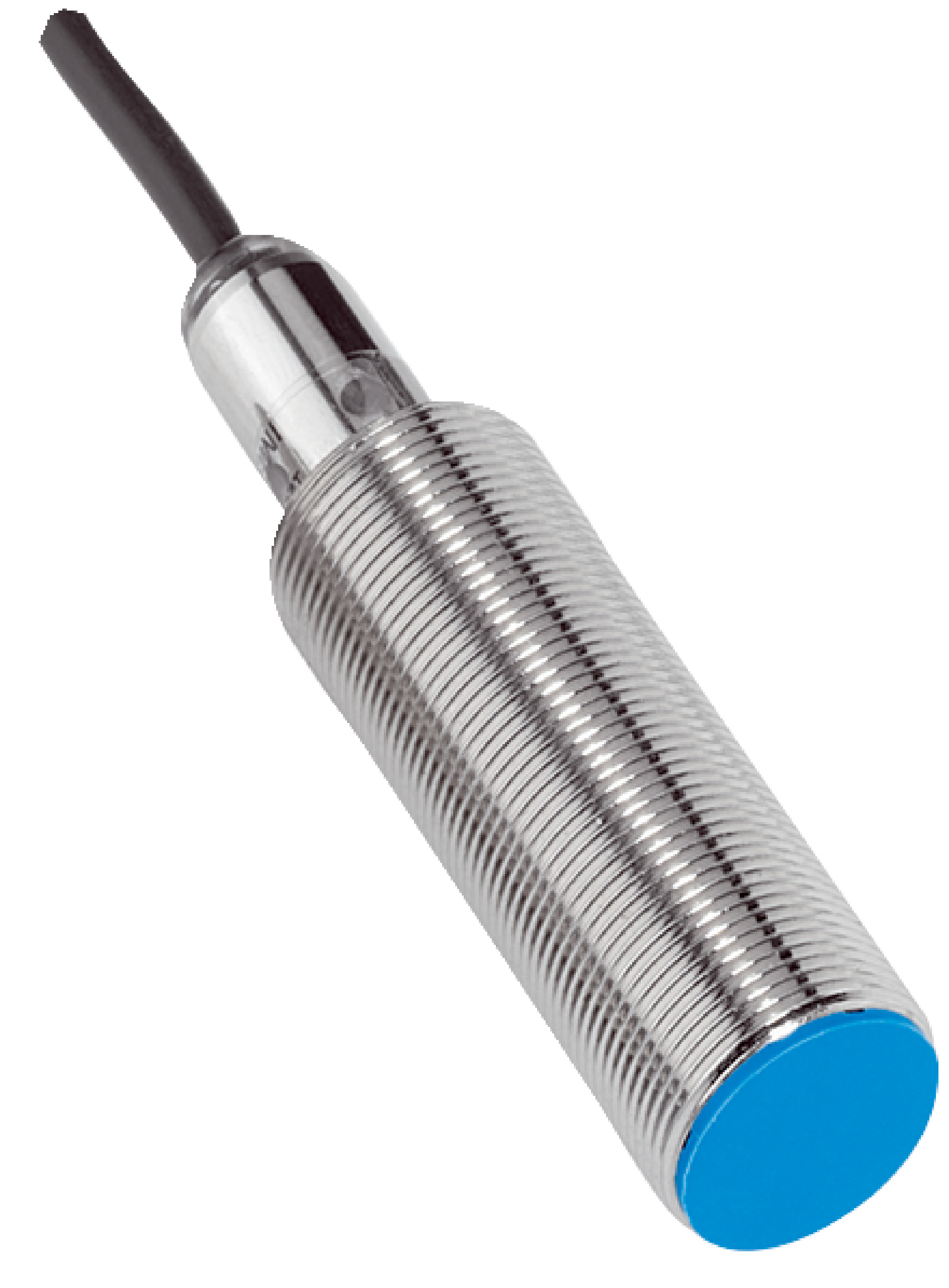

Inductive Proximity Sensor M18 | 8mm Sensing Range | IP67 Rated | Flush Installation | by SICK
The Inductive Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring an 8mm sensing range and a robust IP67 rated enclosure for dust and water protection. With a high switching frequency of 1,000 Hz and flush installation type, it's perfect for machine safety and control systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, brass nickel-plated
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Installation type: Flush
- Switching frequency: 1,000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 0.3 m
- Output function: Normally Open (NO)
- Electrical wiring: DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Cable material: PVC
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse: ≤ 5 ms
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +75 °C
- Housing length: 67 mm
- Thread length: 52 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 18mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Flush installation type for seamless integration
- High switching frequency of 1,000 Hz
- Cable with M12 male connector, 4-pin, 0.3 m length
- Normally open (NO) output function with DC 2-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Mounting nut included, brass and nickel-plated
- Short-circuit protection and power-up pulse ≤ 5 ms
- Shock and vibration resistance up to 30 g
- Wide ambient operating temperature range from –25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing processes
- Position sensing in robotics and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-08BDSZQ9S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
