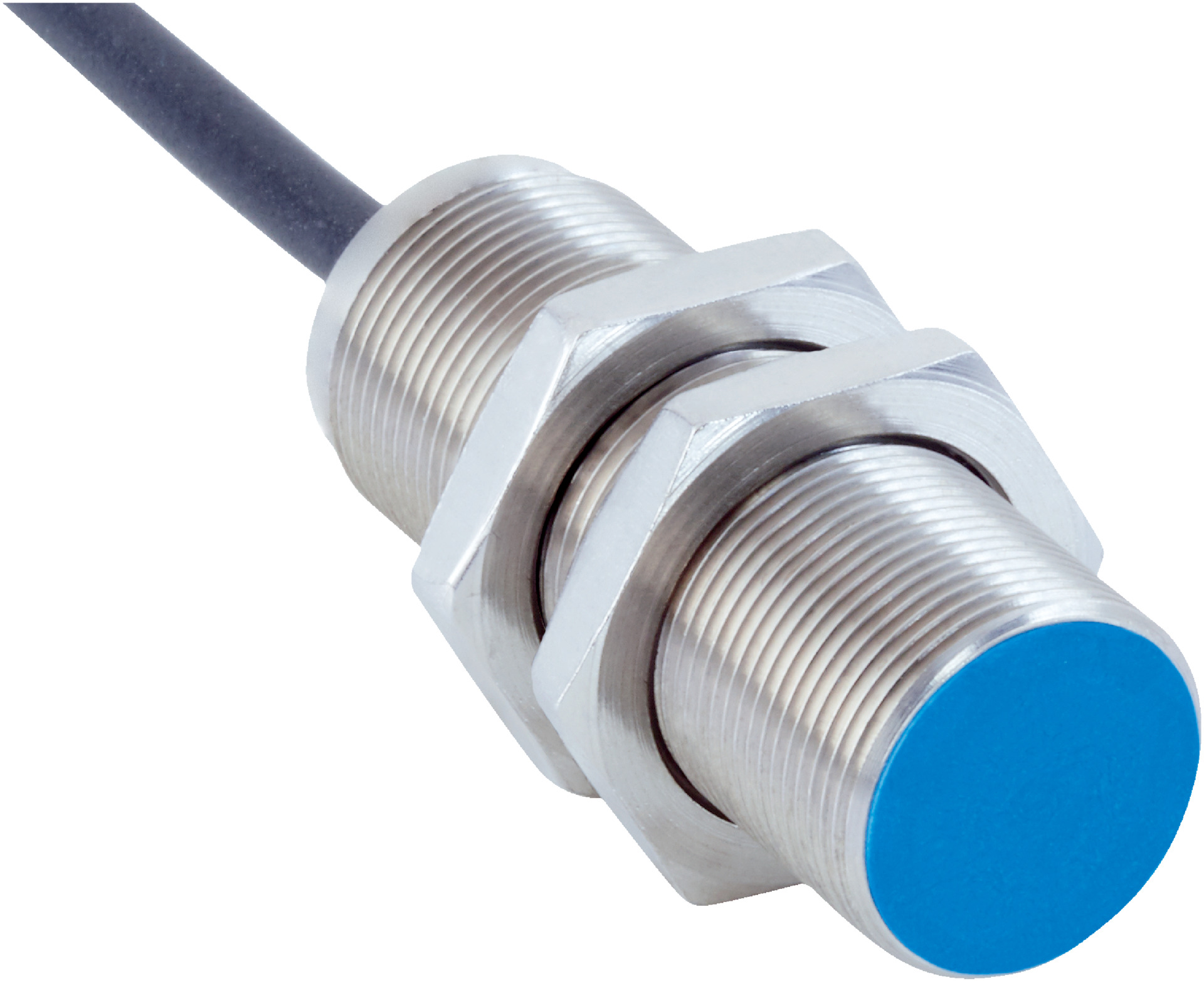

Inductive Proximity Sensor M18 | 8mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation. With an 8mm sensing range and robust IP67/IP68/IP69K protection, it excels in harsh environments, including zones with coolants and lubricants. Built for durability, this sensor features a nickel-plated brass housing and is resistant to shock and vibration, making it ideal for mobile machines and challenging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 3.9 mm
- Bending radius: fixed installation > 5x cable diameter, flexible use > 10x cable diameter
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Protection class: III
- LED yellow indicator for switching status
- Housing length: 59.4 mm, Thread length: 54.9 mm
- Tightening torque max: ≤ 30 Nm
- Dimensions (H x L x W): 59mm x 64mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Flush installation type
- Switching frequency of 1,000 Hz with PNP normally open output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP67, IP68, and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic LCP sensing face
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMG18-08BPSZU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
