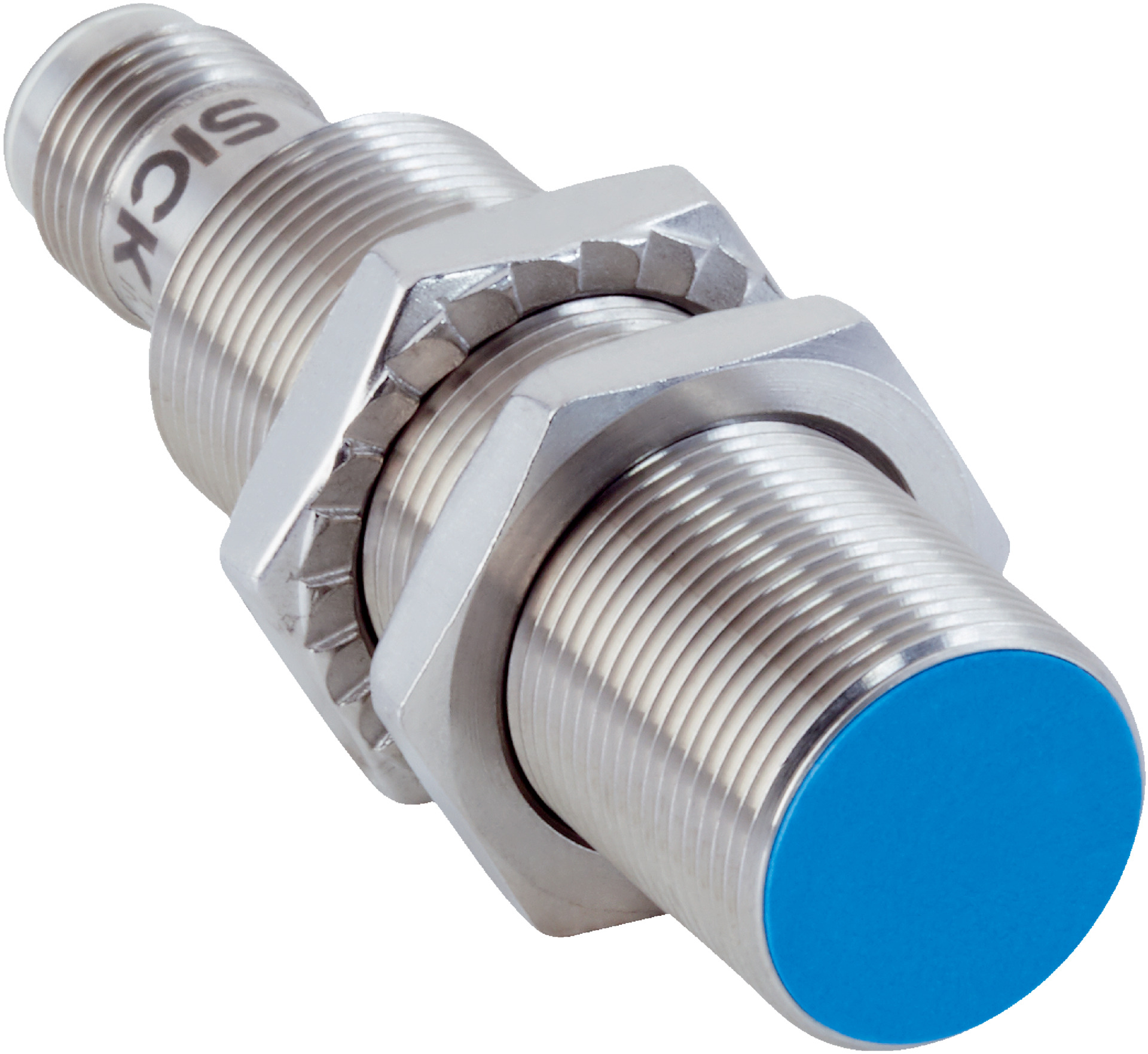

Inductive Proximity Sensor M18 | Up to 8mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a sensing range of up to 8mm and an IP68/IP69K enclosure rating for harsh environments. With up to 4 adjustable switching points and a robust stainless steel housing, this sensor is perfect for machine safety and control systems, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M18 x 1 thread
- Diameter: 18 mm
- Sensing range Sn: 0 to 8 mm
- Safe sensing range Sa: 6.48 mm
- Number of switching points: Up to 4 adjustable
- Switching frequency: 250 Hz
- Installation type: Quasi-flush
- Connection type: Male M12, 4-pin
- Switching output: PNP programmable NC/NO
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Operating temperature: -40 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Thread length: 47 mm
- Tightening torque max: 90 Nm
- Communication interface: IO-Link V1.1 COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Dimensions (H x L x W): 18mm x 65mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Sensing range up to 8 mm with safe sensing range of 6.48 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency of 250 Hz
- Quasi-flush installation type
- Male connector M12, 4-pin connection
- PNP programmable switching output with NC/NO function
- Electrical wiring DC 4-wire
- Enclosure rating IP68 and IP69K for harsh environments
- Smart Task functionality with time measurement and debouncing
- Resistant against coolant lubricants
- Communication via IO-Link V1.1 with COM2 38.4 kBaud
- Shock and vibration resistant with high durability
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- High resistance to harsh environments reduces environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

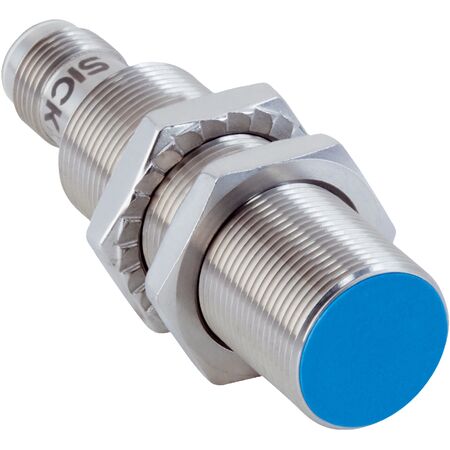

The SICK IMC18-08BPPVC0SA70 inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
