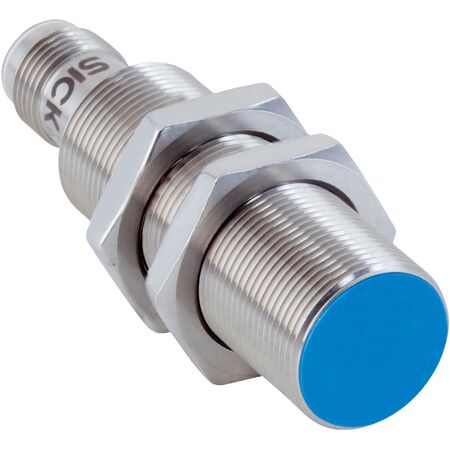

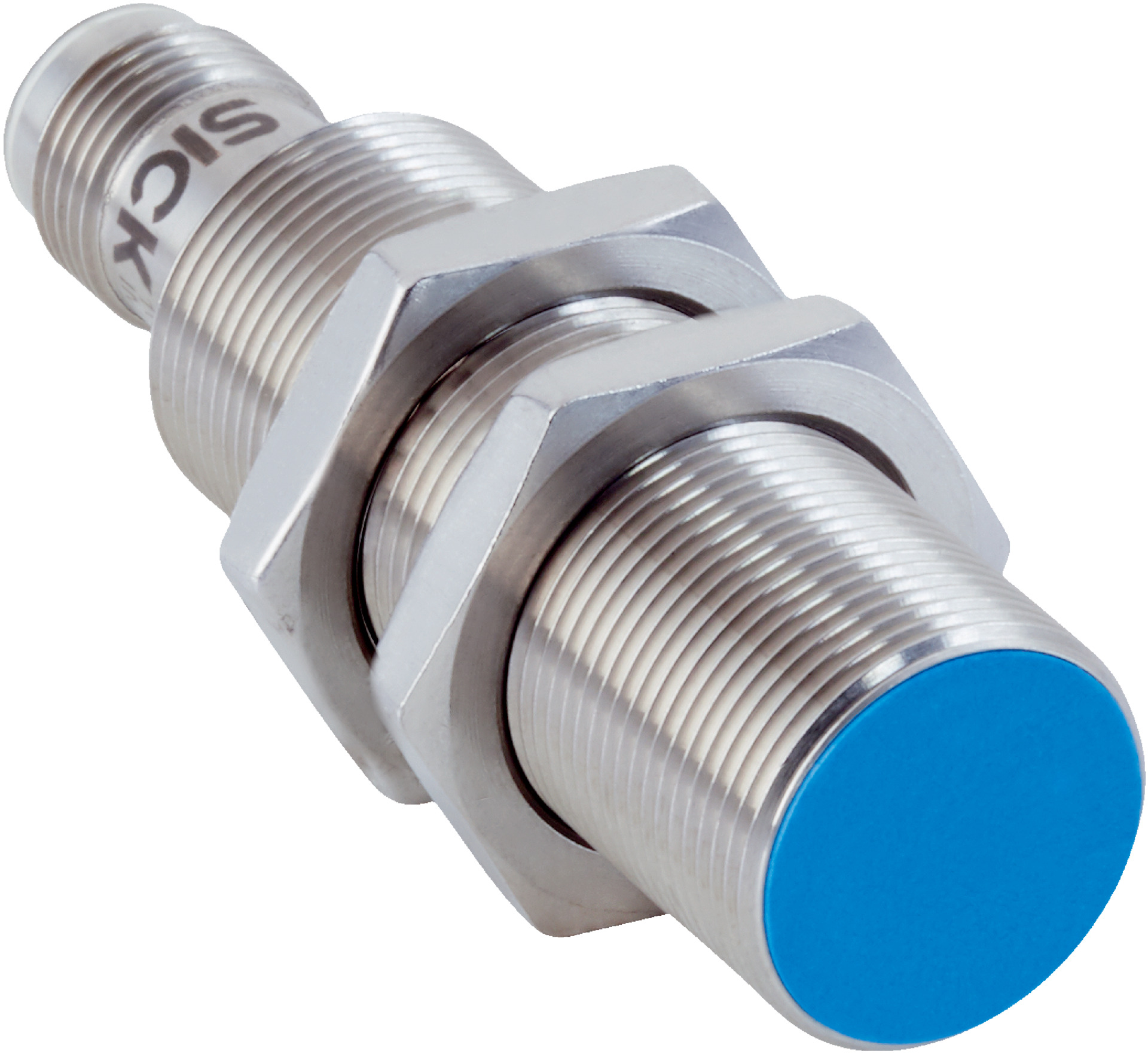

Inductive Proximity Sensor M18 | 8mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M18 is designed for robust sensing in challenging environments, featuring an 8mm sensing range and IP68/IP69K protection. Ideal for mobile machines and areas with coolants, this sensor ensures reliable performance with a switching frequency of 1,000 Hz and NPN normally closed output, making it perfect for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance per EN 60068 standards
- Ambient operating temperature: –40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Protection class: III
- Switching output: NPN, normally closed (NC)
- Connection type: Male M12, 4-pin connector
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Quasi-flush installation type
- Switching frequency of 1,000 Hz
- NPN switching output with NC function
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Includes mounting nut, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMS18-08BNOVC0S inductive proximity sensor is available for immediate purchase, ideal for industrial and mobile machine applications requiring reliable sensing in harsh environments.
