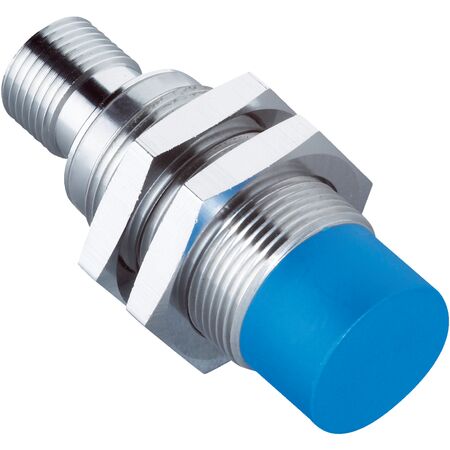

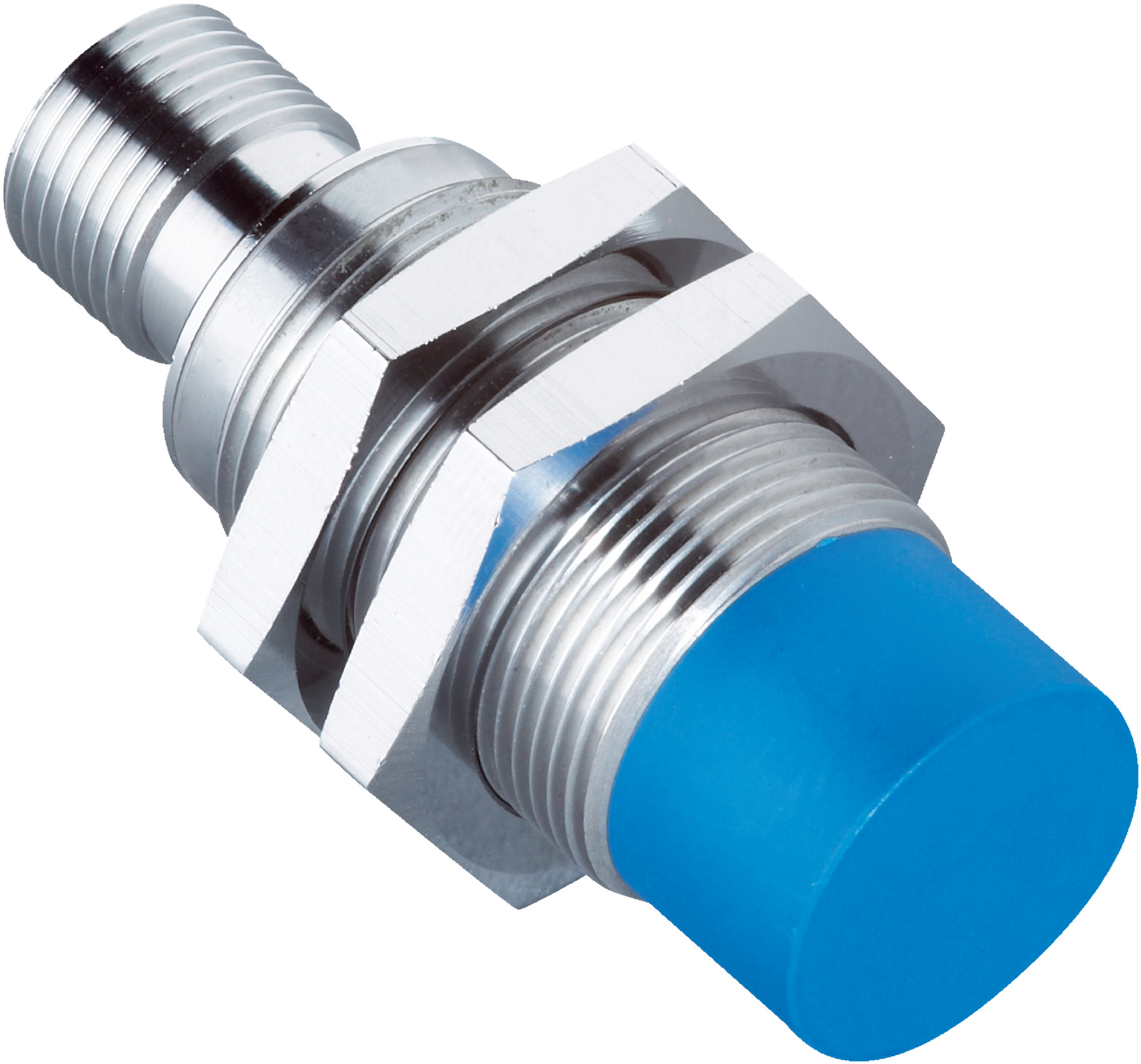

Inductive Proximity Sensor M18 | Analog Output | IP67 Enclosure | High Repeatability | by SICK
The Inductive Proximity Sensor M18 is designed for precision in industrial automation, featuring an analog output and an IP67 enclosure for dust and water protection. With a high repeatability of ±0.05 mm and a resolution of ≤ 5 µm, this sensor is perfect for machine safety and control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 60 ms
- Temperature drift of sensing range: ≤ 10%
- No load current: ≤ 12 mA
- Load current: ± 10 mA
- Max load resistance: ≤ 400 Ω at 15 V, ≤ 1000 Ω at 30 V
- Output voltage: 0 V to 10 V
- Output current: 4 mA at 0 mm, 20 mA at 20 mm
- Bandwidth: 250 Hz
- Repeatability: ± 0.05 mm
- Resolution: ≤ 5 µm
- Enclosure rating: IP67
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic, PTB
- Thread length: 22 mm
- Housing length: 48.5 mm
- Dimensions (H x L x W): 48.5mm x 48.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Non-flush installation type
- Analog output with triple sensing range
- High repeatability of ±0.05 mm
- Resolution ≤ 5 µm
- Enclosure rating IP67 for dust and water protection
- Short-circuit protection included
- Operating temperature range from –25 °C to +70 °C
- Housing made of brass, chromium-plated with plastic sensing face
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections according to local regulations.
Applications
- Industrial automation for position sensing
- Machine safety and control systems
- Metal detection in manufacturing processes
- Robotics and assembly line monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMA18-20NE1ZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
