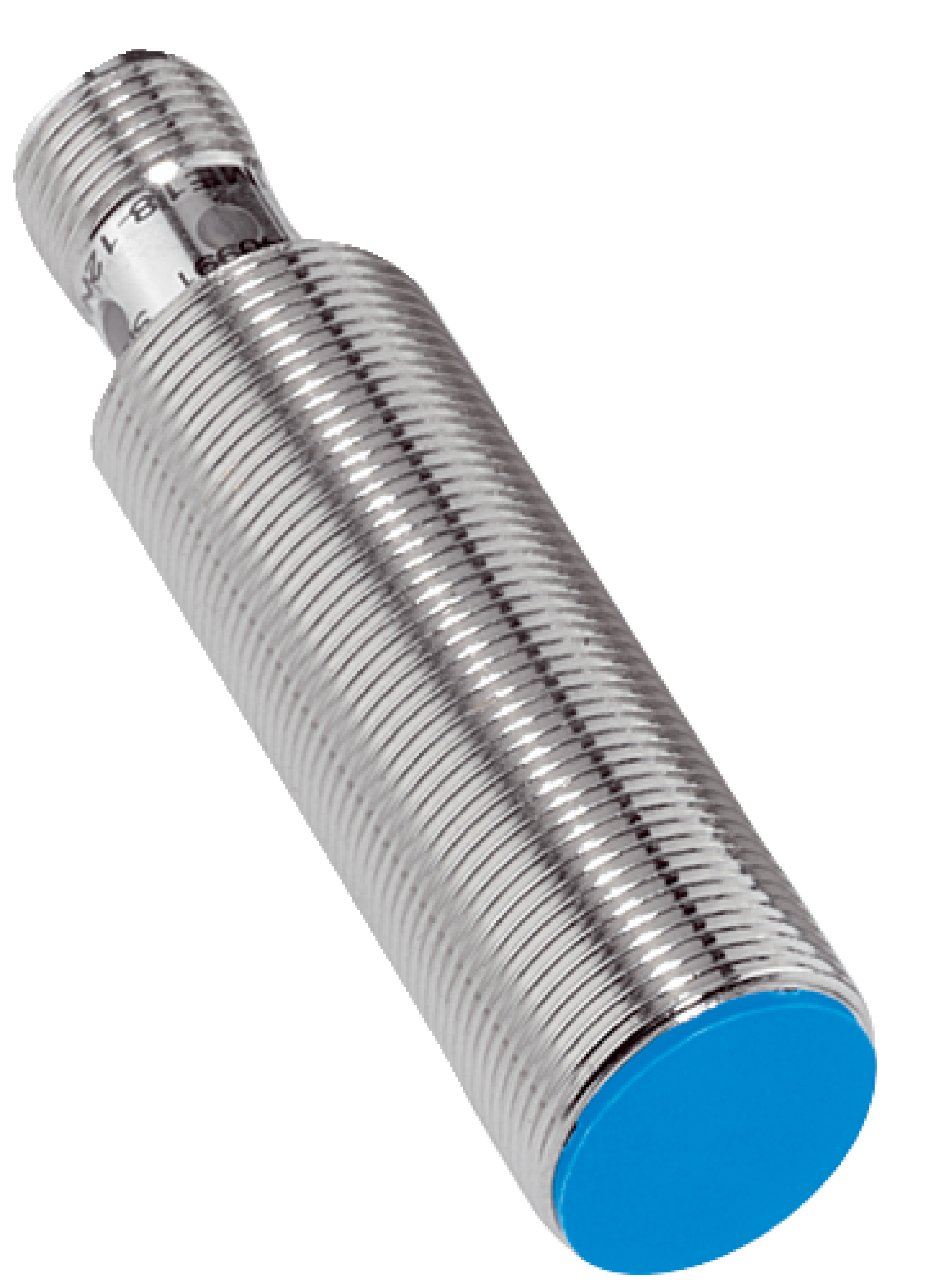

Inductive Proximity Sensor M18 | Brass Housing | IP67 Rated | 8mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a robust brass housing and an IP67 rating for dust and water resistance. With a sensing range of 8 mm and a high switching frequency of 1,000 Hz, it ensures fast and accurate performance, making it ideal for manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, SICK Proximity Sensor, M18 Inductive Sensor
Technical Specifications
- Housing: Brass, nickel-plated
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Installation type: Flush
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 69 mm
- Thread length: 52 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard M18 x 1 threaded brass housing with nickel plating
- Flush installation type with IP67 rated enclosure for dust and water resistance
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- High switching frequency of 1,000 Hz for fast response
- PNP normally closed output with DC 3-wire electrical wiring
- Male M12 4-pin connector for easy connection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g and 11 ms
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Energy-efficient operation with low power consumption
- Durable IP67 rated housing minimizes environmental damage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

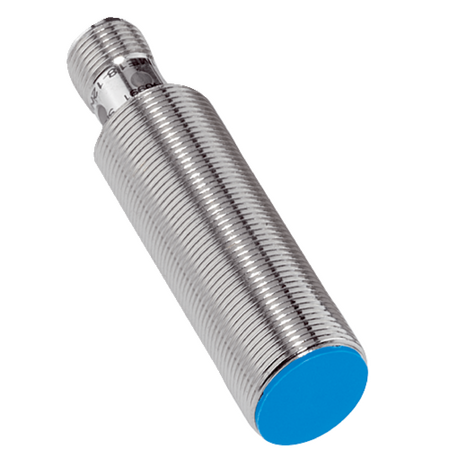

The SICK IME18-08BPOZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
