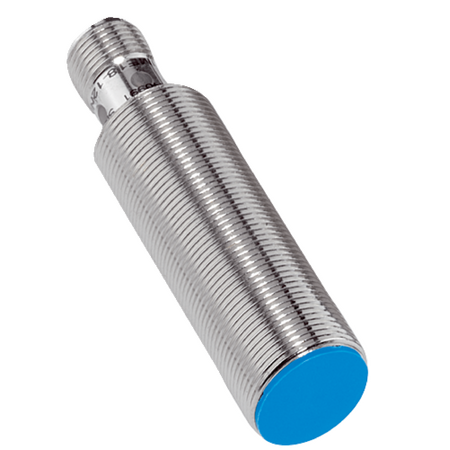

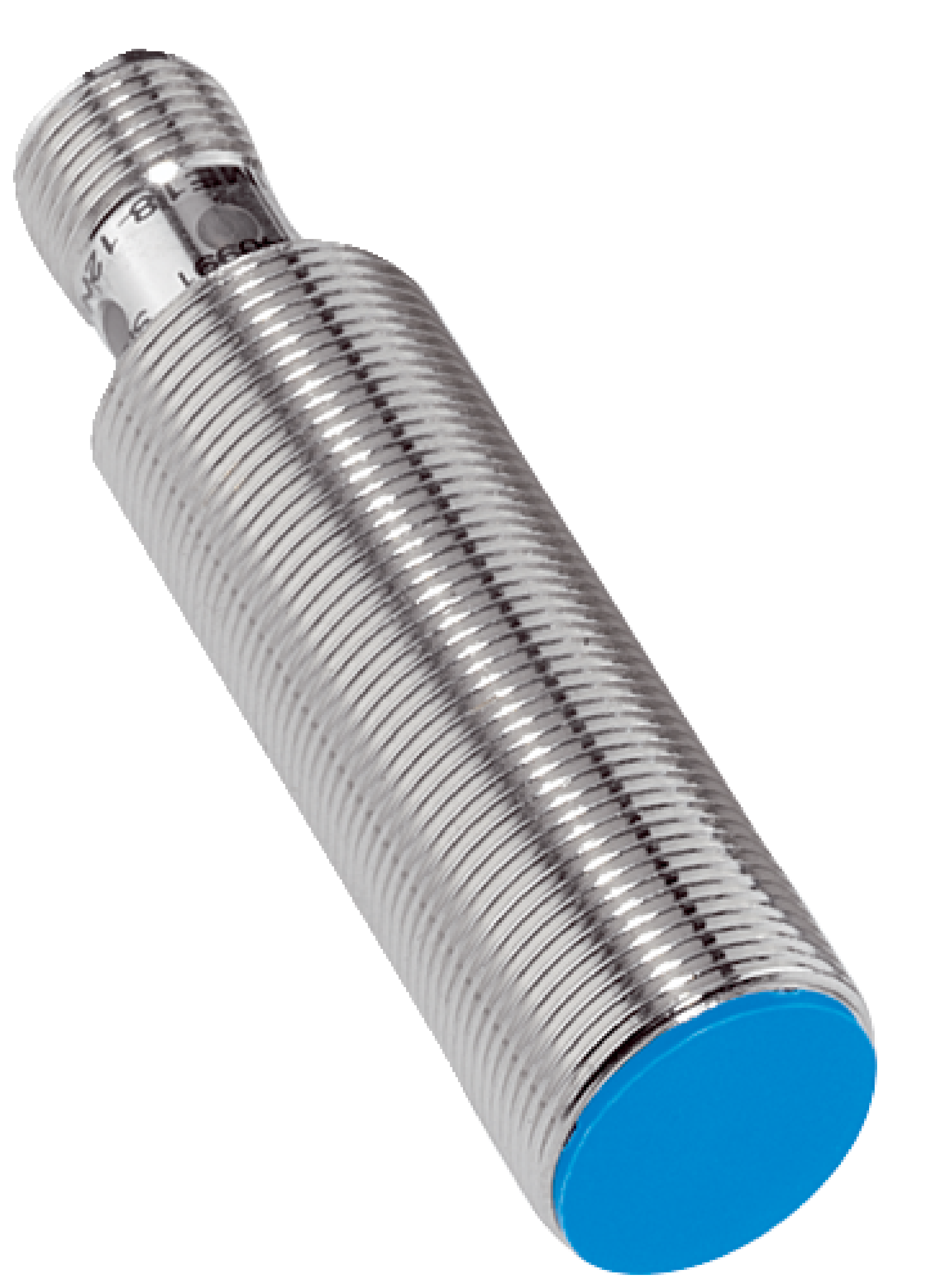

Inductive Proximity Sensor M18 | Brass Nickel-Plated Housing | IP67 Rated | 8mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a robust brass housing and an IP67 enclosure rating. With a sensing range of 8 mm and a fast switching frequency of 1,000 Hz, it's perfect for machine safety and control systems, ensuring precise position sensing in robotics and conveyor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M18, M18 Proximity Sensor, SICK IME18 Sensor, Metal Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Tightening torque max: ≤ 40 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with a sensing range of 8 mm
- Flush installation type with IP67 enclosure rating
- Switching frequency of 1,000 Hz for fast response
- Male connector M12, 4-pin connection type
- Normally open (NO) output function with DC 2-wire electrical wiring
- Short-circuit protection and power-up pulse ≤ 5 ms
- Shock and vibration resistance up to 30 g
- Wide ambient operating temperature range from –25 °C to +75 °C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing processes
- Position sensing in robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-08BDSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
