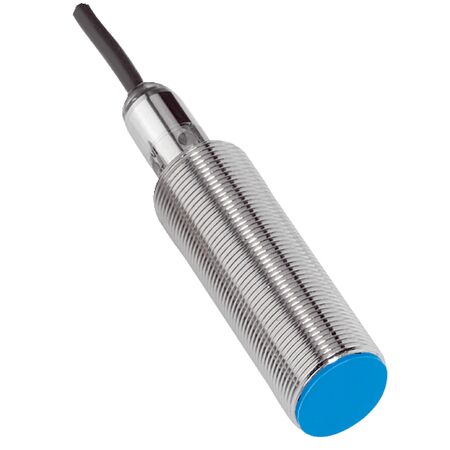

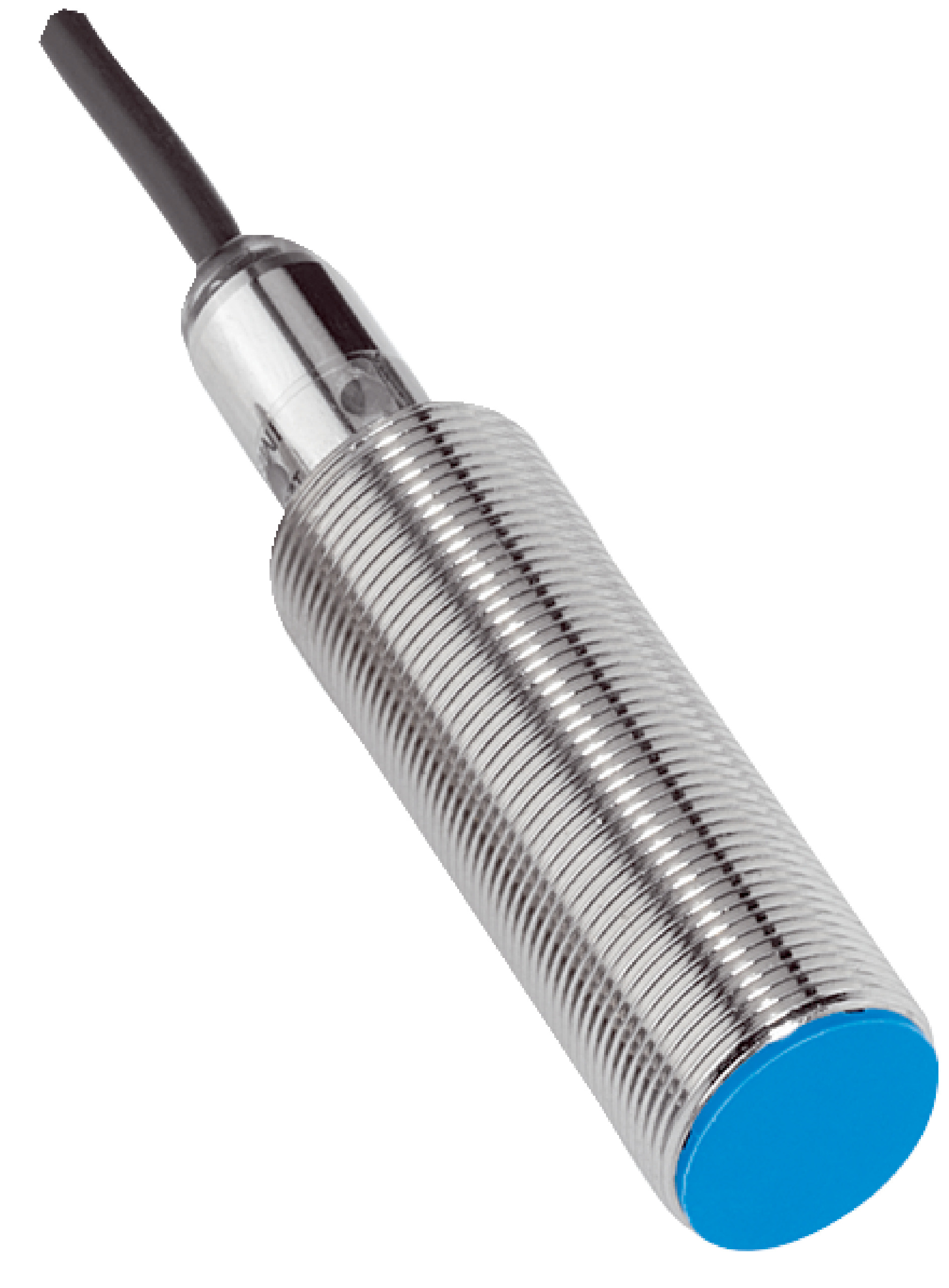

Inductive Proximity Sensor M18 | IP67 Enclosure | 1,000 Hz Switching Frequency | Brass Housing | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a robust IP67 enclosure and a high switching frequency of 1,000 Hz. With a sensing range of 5 mm and a durable brass housing, this sensor is perfect for position sensing and metal detection in manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | IP67 Enclosure | 1,000 Hz Switching Frequency | Brass Housing | by SICK
Brand: SICK
SKU: 1040936
Alternatively Known As: Inductive Proximity Sensor M18, M18 Proximity Sensor, SICK IME18 Sensor, Metal Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm
- Conductor size: 0.25 mm²
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 52 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 18mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with a sensing range of 5 mm
- Flush installation type with IP67 enclosure rating
- Switching frequency of 1,000 Hz with PNP normally open output
- Cable connection type, 3-wire, 2 m length
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME18-05BPSZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
