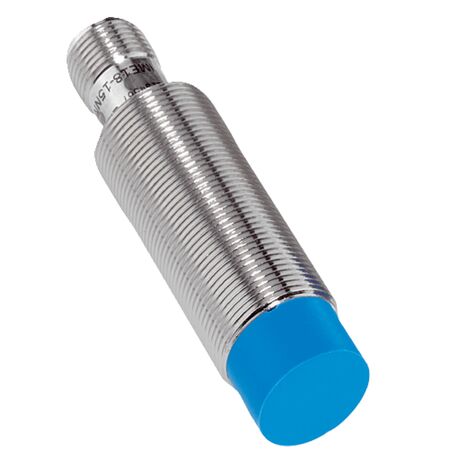

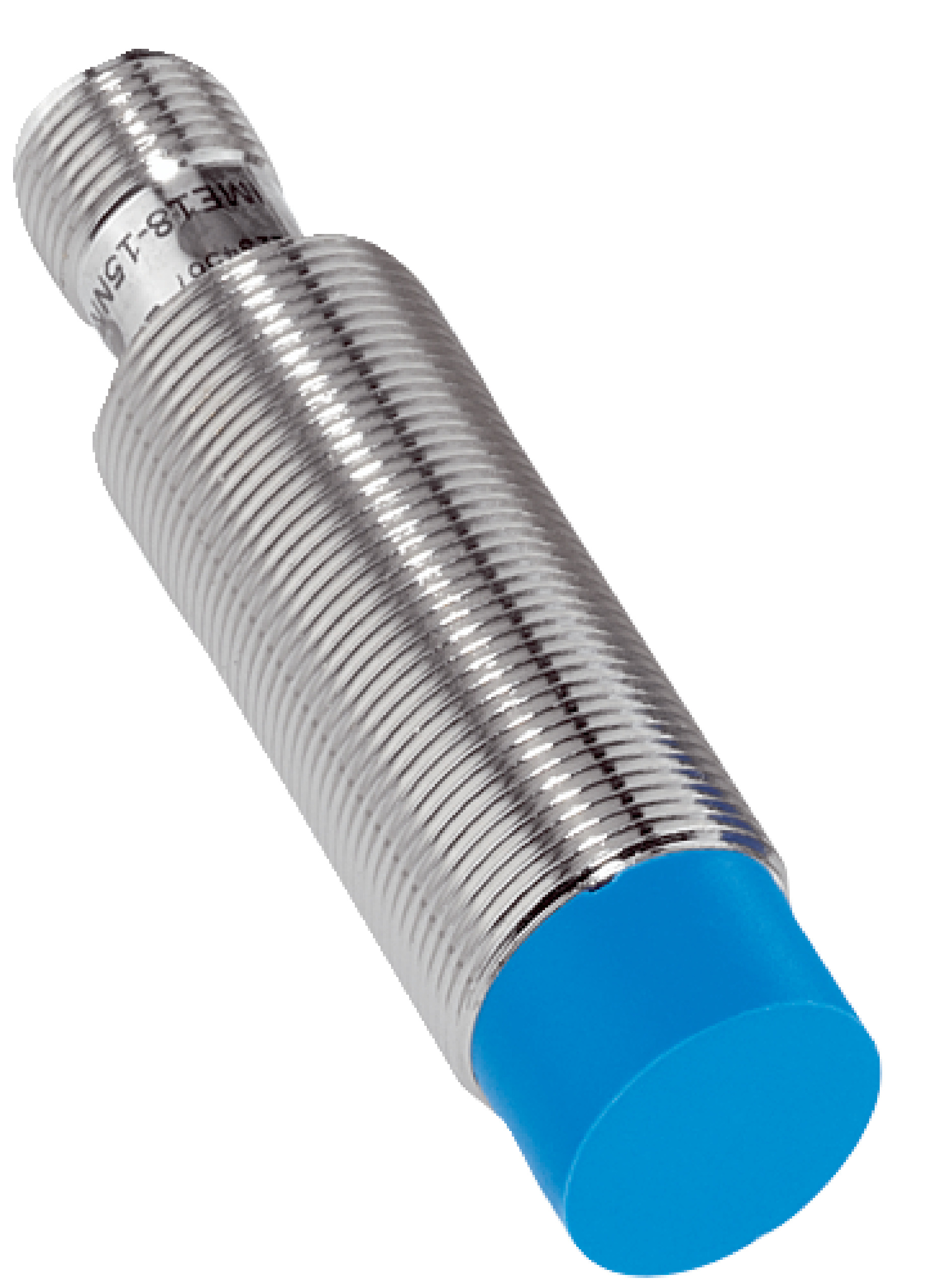

Inductive Proximity Sensor M18 | IP67 Rated | 12mm Sensing Range | High Switching Frequency | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a 12mm sensing range and IP67 rated enclosure for dust and water protection. With a high switching frequency of 1,000 Hz and robust construction, it's perfect for position sensing in manufacturing lines and non-contact switching in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Operating temperature range: -30 °C to +75 °C
- Housing length: 69 mm
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M18 x 1 thread size with 12 mm sensing range
- Non-flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Durable IP67 housing minimizes replacement frequency, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME18-12NPSZC0SS33 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
