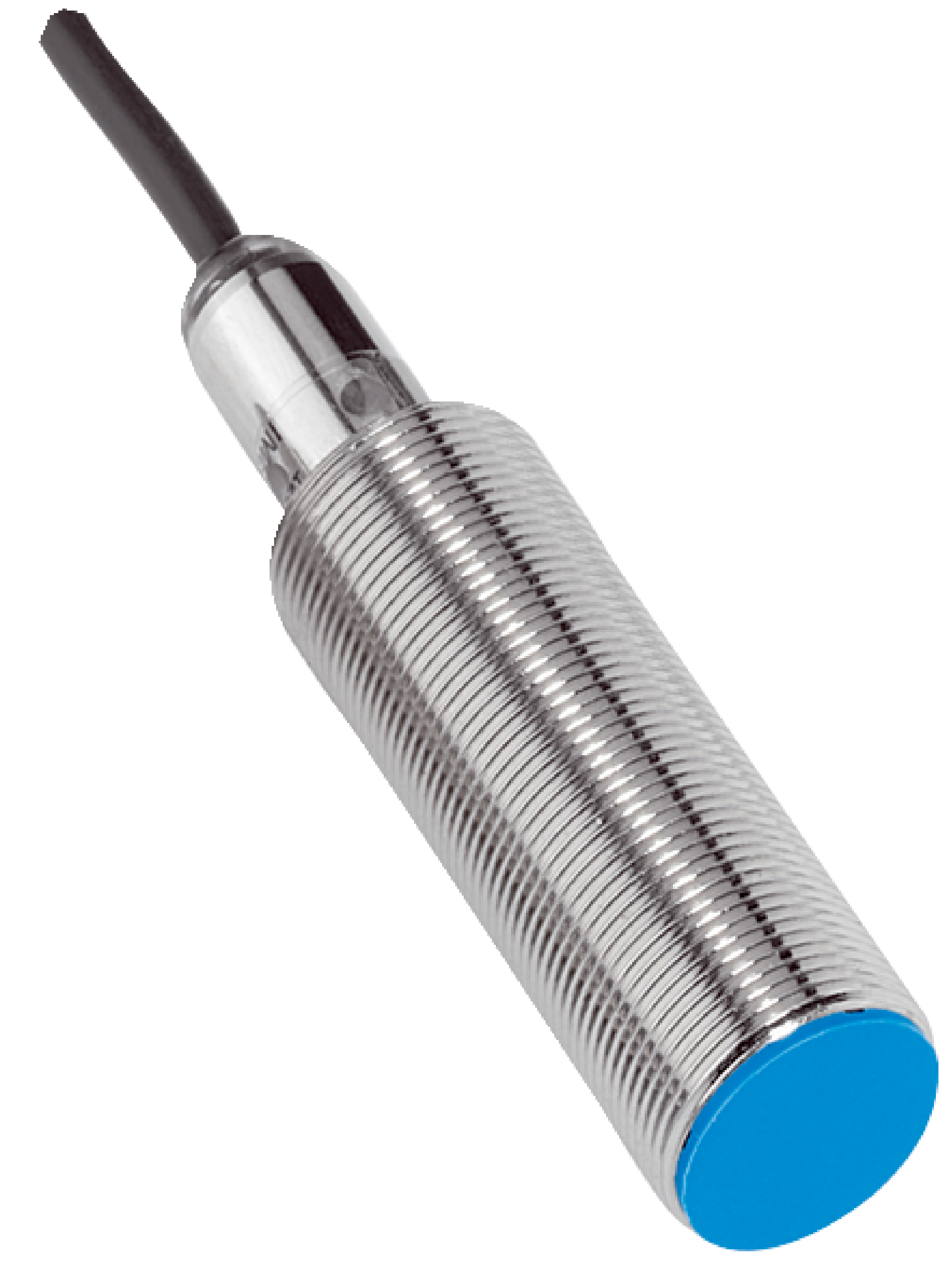

Inductive Proximity Sensor M18 | IP67 Rated | 5mm Sensing Range | 1000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a 5mm sensing range and a high switching frequency of 1,000 Hz. With an IP67 rating for dust and water protection, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, SICK Proximity Sensor 5mm, M18 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 1,000 Hz
- Output type: PNP normally open
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: 3-wire, 2 m length, PVC material, 0.25 mm² conductor size
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Protection rating: IP67
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25 °C to +75 °C
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 18mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard M18 x 1 threaded brass housing with nickel plating
- Flush installation type with 5 mm sensing range
- High switching frequency of 1,000 Hz
- PNP normally open output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer guidelines to ensure proper flush mounting and electrical connections.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

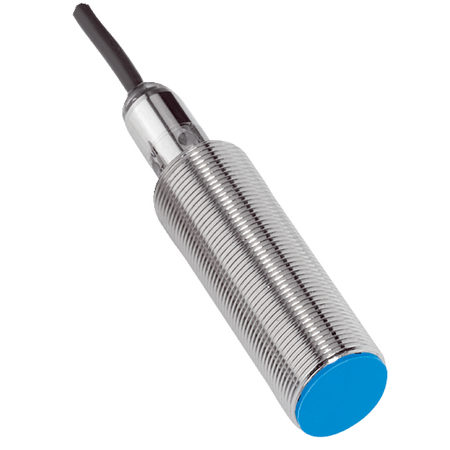

The SICK IME18-05BPSZW2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
