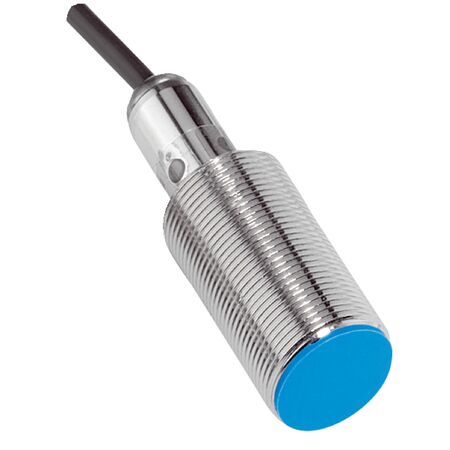

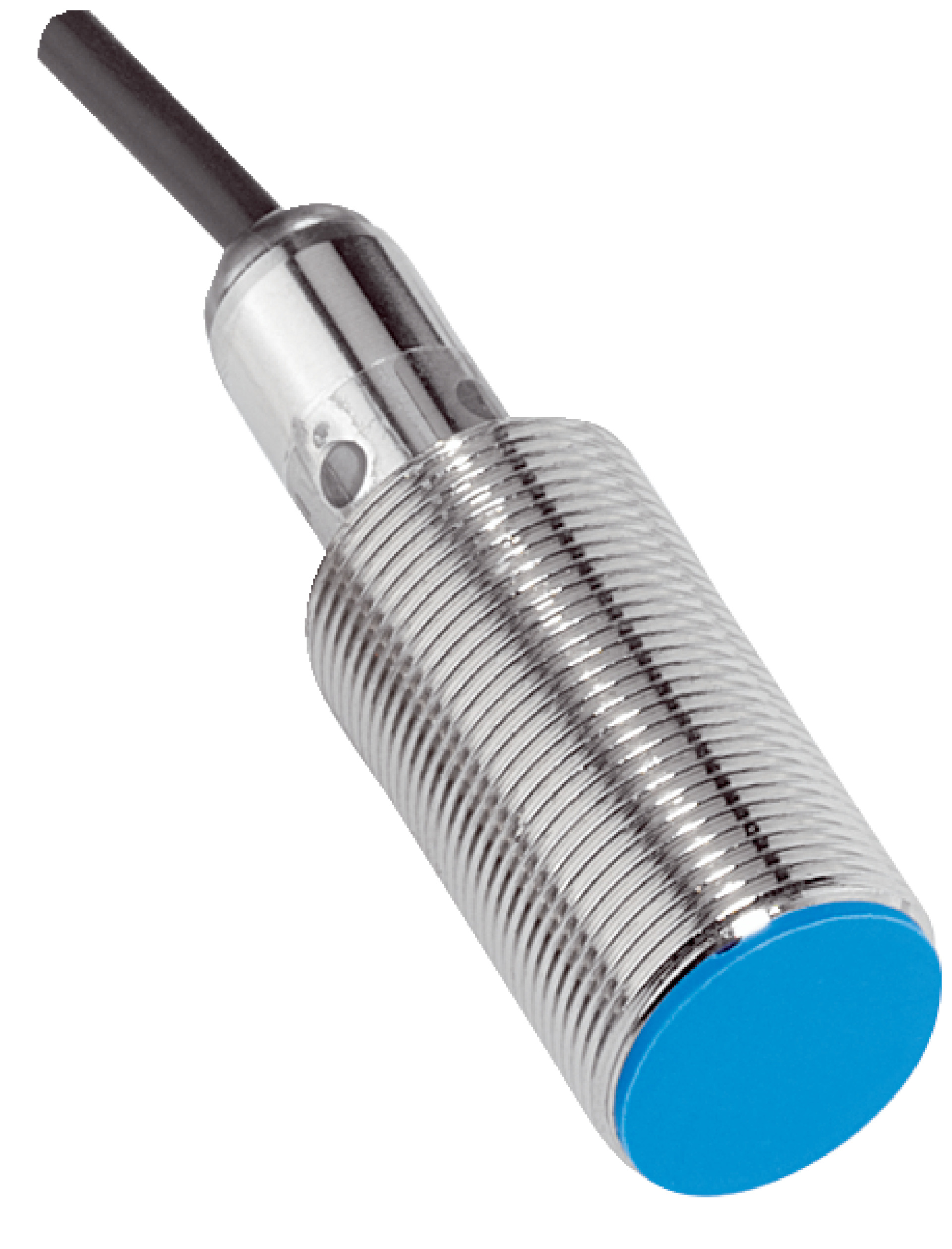

Inductive Proximity Sensor M18 | IP67 Rated | 8mm Sensing Range | High Switching Frequency | by SICK
Inductive proximity sensors are essential for industrial automation, offering an 8mm sensing range and IP67 rated enclosure for dust and water resistance. Designed for reliable object detection and position sensing, this sensor features a high switching frequency of 1,000 Hz and is built to withstand harsh environments, making it ideal for manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | IP67 Rated | 8mm Sensing Range | High Switching Frequency | by SICK
Brand: SICK
SKU: 1084644
Alternatively Known As: Inductive Proximity Sensor M18, Metal Proximity Sensor, PNP Proximity Switch, Flush Mount Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, diameter 3.9 mm, length 0.3 m with M12 male connector, 4-pin
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Tightening torque max: ≤ 40 Nm
- EMC: According to EN 60947-5-2
- Switching output: PNP, NC function
- Dimensions (H x L x W): 48mm x 48mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with NC output function
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water resistance
- Includes mounting nuts and washers, brass nickel-plated
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature from -25 °C to +75 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME18-08BPOZQ9K Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
