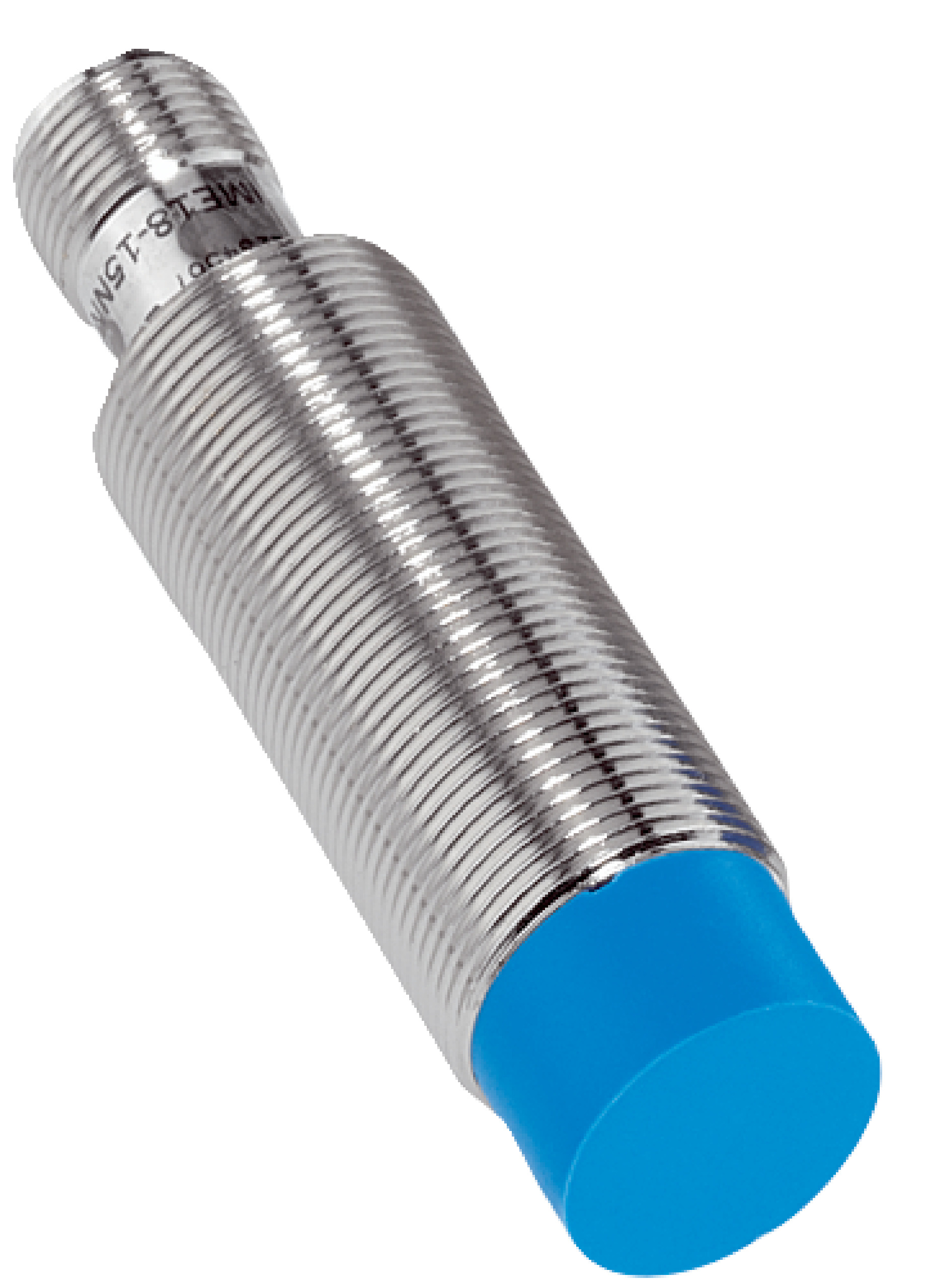

Inductive Proximity Sensor M18 | IP67 Rated | 8mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and IP67 enclosure for dust and water protection. With a robust brass housing and a switching frequency of up to 1,000 Hz, this sensor is perfect for non-contact switching in manufacturing lines and metal detection in conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | IP67 Rated | 8mm Sensing Range | PNP Output | by SICK
Brand: SICK
SKU: 1040950
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Sensor, SICK Proximity Switch, M18 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: PNP, normally open (NO)
- Switching frequency: 1,000 Hz
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Enclosure rating: IP67
- Connection type: Male M12, 4-pin connector
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with non-flush installation type
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Switching frequency up to 1,000 Hz with PNP normally open output
- Connection via male M12 4-pin connector
- High enclosure rating IP67 for dust and water protection
- Shock and vibration resistance up to 30 g
- Short-circuit and power-up pulse protection included
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable brass housing extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

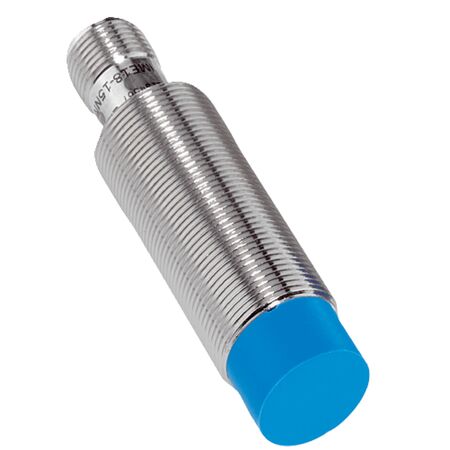

The SICK IME18-08NPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
