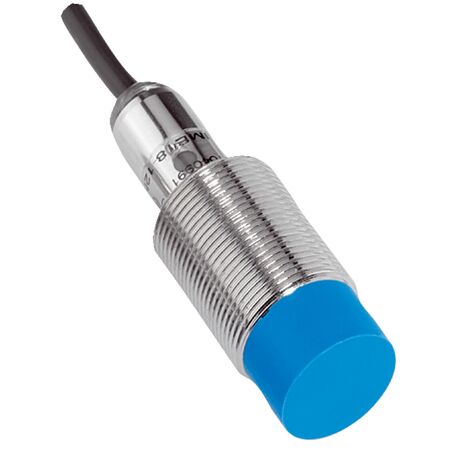

Inductive Proximity Sensor M18 | IP67 Rated | 8mm Sensing Range | PNP Normally Closed Output | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and IP67 rated enclosure for dust and water protection. With a robust brass housing and non-contact switching capabilities, it's perfect for harsh environments, ensuring durability and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | IP67 Rated | 8mm Sensing Range | PNP Normally Closed Output | by SICK
Brand: SICK
SKU: 1040955
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, SICK Proximity Switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 2 m length, diameter Ø 3.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 48 mm
- Thread length: 23 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 48mm x 48mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Switching frequency up to 1,000 Hz
- PNP normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable IP67 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IME18-08NPOZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
