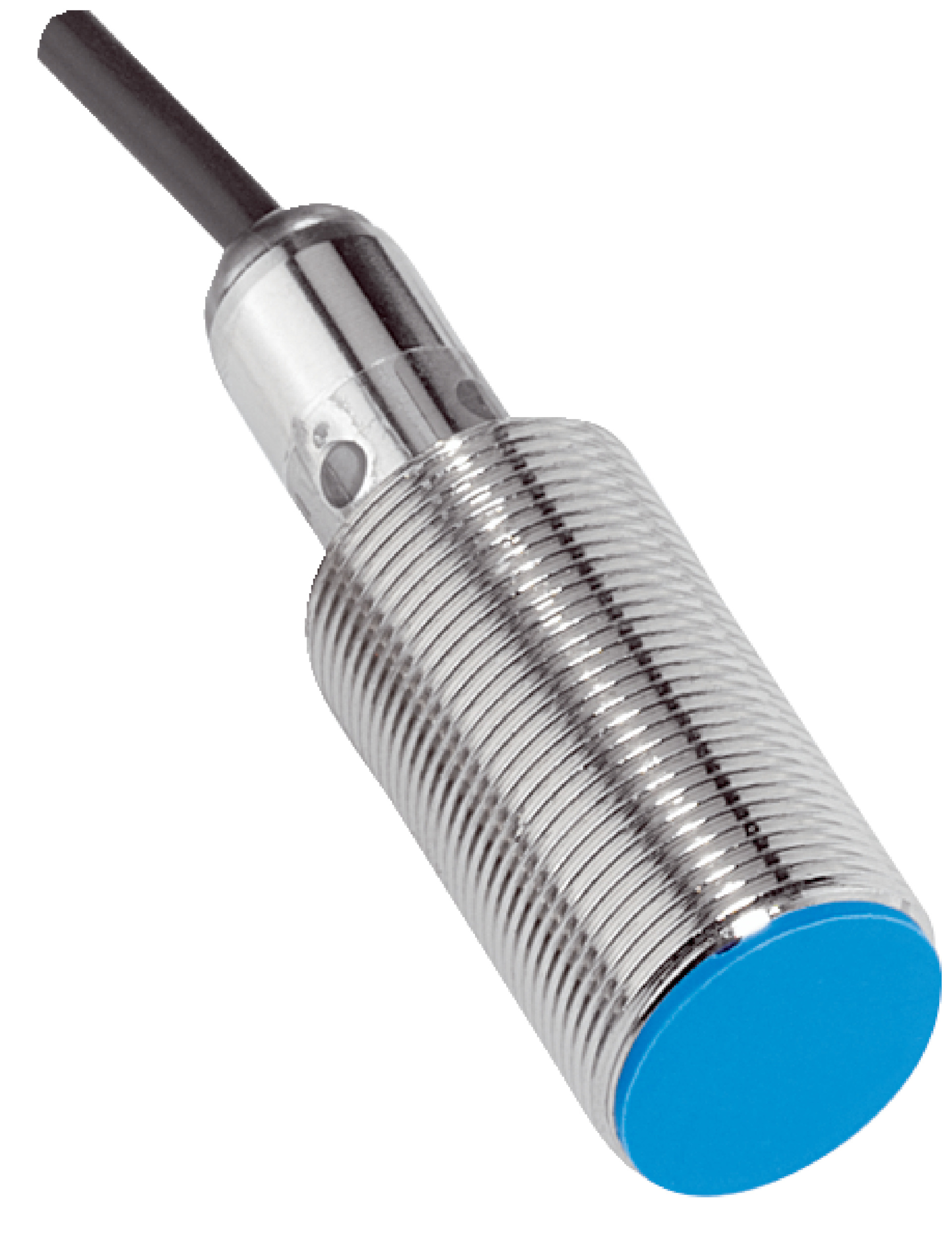

Inductive Proximity Sensor M18 | IP67 Rated | 8mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and IP67 rated enclosure for dust and water protection. With a high switching frequency of 1,000 Hz and a robust brass housing, it's perfect for position sensing in manufacturing lines and metal detection in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 40 Nm
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- EMC compliant according to EN 60947-5-2
- Switching output: PNP, normally open
- Connection type: Cable with M12 male connector, 4-pin, 300 mm
- Dimensions (H x L x W): 48mm x 48mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- Cable connection with M12 male connector, 4-pin, 300 mm length
- IP67 rated enclosure for dust and water protection
- Includes mounting nuts and washers, brass nickel-plated
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25°C to +75°C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

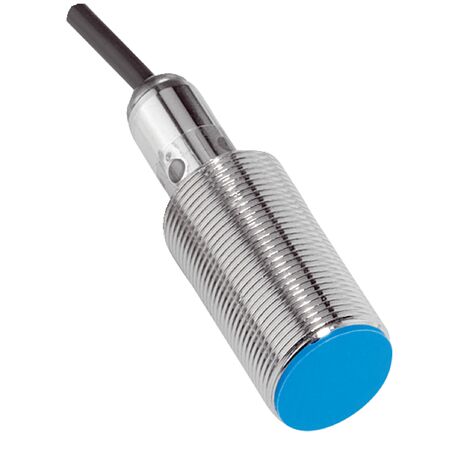

The SICK IME18-08BPSZQ9KS25 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
