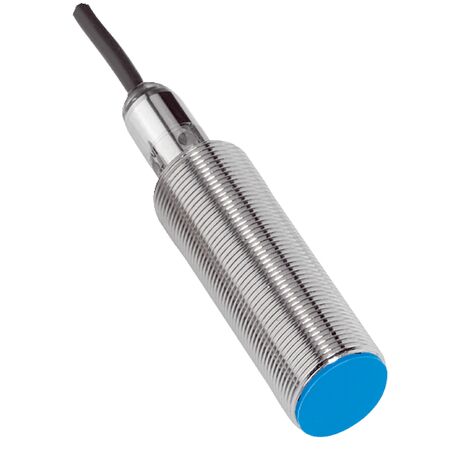

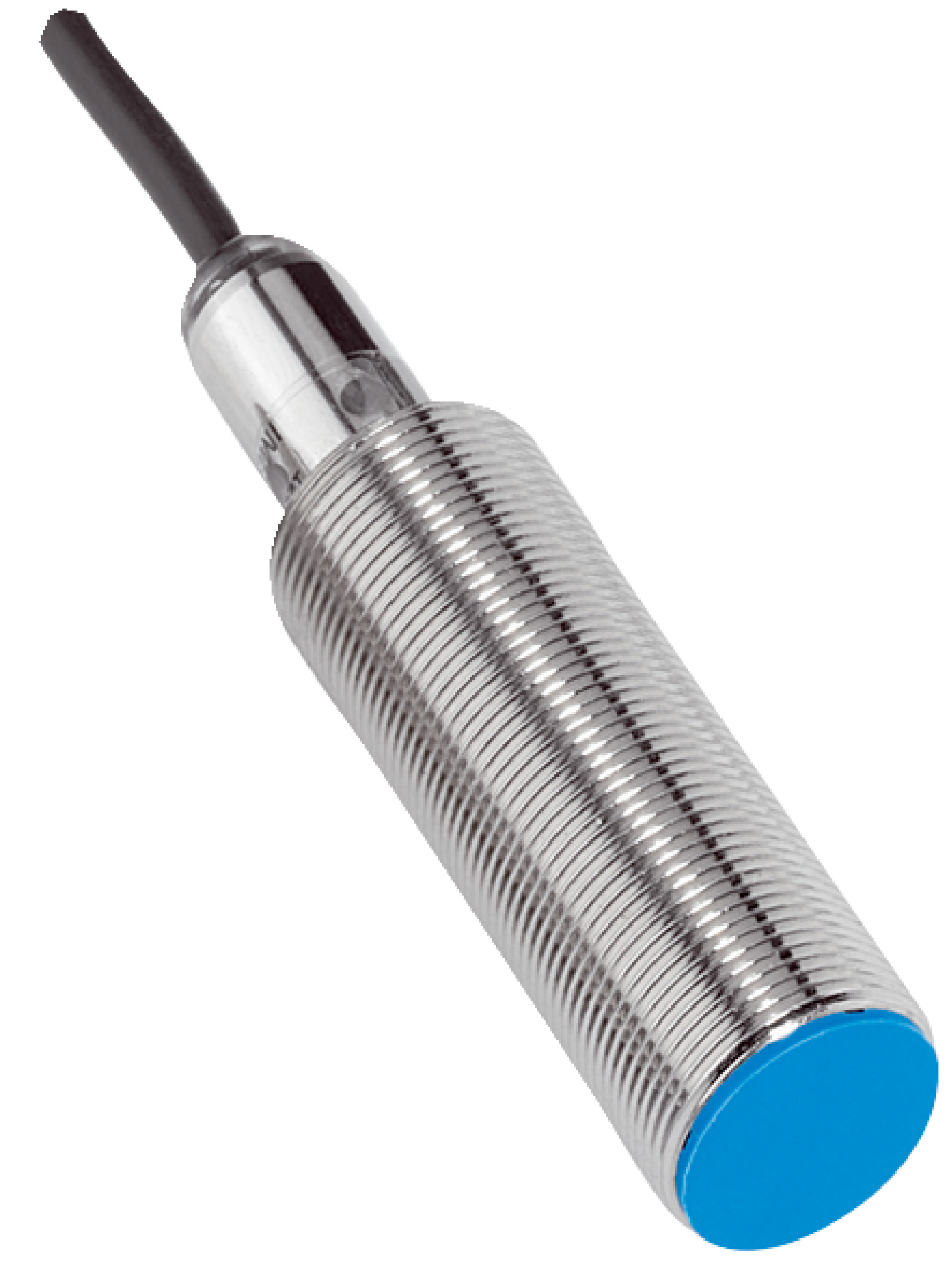

Inductive Proximity Sensor M18 | IP67 Rated | 8mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and IP67 enclosure for dust and water protection. With a robust brass housing and a wide operating temperature range from -25 °C to +75 °C, this sensor is perfect for manufacturing lines and safety systems, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR with 0.75 mm² conductor size
- Cable diameter: Ø 6.1 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Housing length: 67 mm
- Thread length: 52 mm
- Tightening torque max: ≤ 40 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 67mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with 8 mm sensing range
- Flush installation type
- Switching frequency of 1,000 Hz
- PNP switching output with NO function
- Cable connection with Deutsch DT04-3P-CE09 male connector, 3-pin, 1 m length
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistance up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME18-08BPSZU1SS37 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
