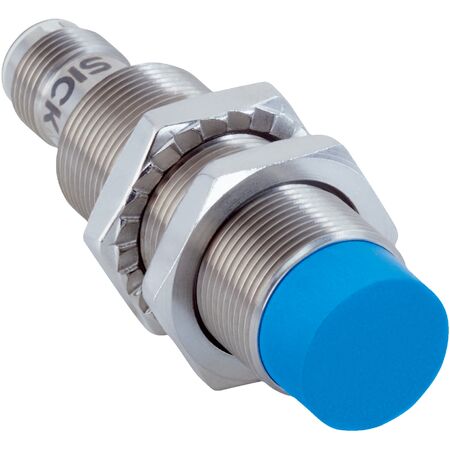

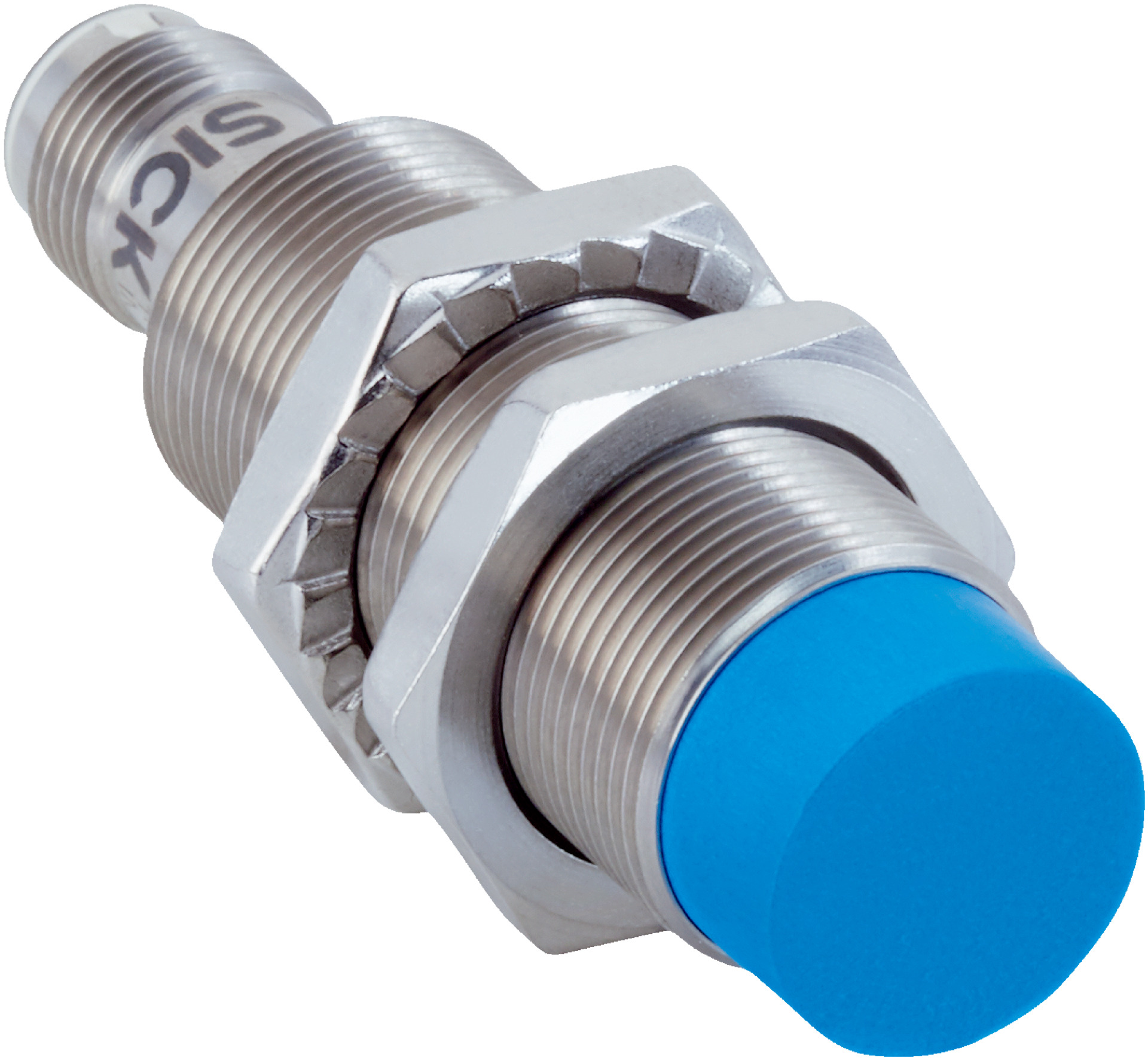

Inductive Proximity Sensor M18 | IP67 Rated | ATEX Certified | High Switching Frequency | by SICK
Inductive proximity sensor M18 designed for industrial automation, featuring an IP67 rated enclosure and ATEX certification for explosive environments. With a high switching frequency of 1,000 Hz and robust stainless steel housing, it's perfect for detecting metal objects in harsh conditions, ensuring reliability and durability in mobile machines and applications with coolants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | IP67 Rated | ATEX Certified | High Switching Frequency | by SICK
Brand: SICK
SKU: 1099572
Alternatively Known As: M18 Inductive Proximity Sensor, PNP NO Proximity Sensor, IO-Link Proximity Sensor, ATEX Certified Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -20 °C to +90 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Thread length: 39 mm
- Tightening torque max: Typ. 60 Nm to 90 Nm
- Communication interface: IO-Link V1.0 COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 18mm x 65mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard M18 x 1 threaded housing with Ø18 mm diameter
- Non-flush installation type with 12 mm sensing range
- High switching frequency of 1,000 Hz
- PNP normally open output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Resistant against coolant lubricants
- Visual adjustment indicator and IO-Link communication
- ATEX certified for explosive atmospheres
- Shock and vibration resistant with high mechanical durability
- Stainless steel V2A housing and plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel recommended; ensure proper mounting torque and wiring according to manufacturer guidelines and ATEX requirements.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Explosive areas requiring ATEX certified sensors
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient DC operation minimizes power consumption
- Resistant to harsh chemicals reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB18-12NPSVC0SX02 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications in harsh and explosive environments.
