Inductive Proximity Sensor M18 | IP67 Rated | High Switching Frequency | Brass Housing | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a high switching frequency of 1,000 Hz and a robust brass housing, this sensor is perfect for position sensing and metal detection in manufacturing lines, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M18, M18 Proximity Sensor, SICK IME18 Sensor, Metal Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Housing length: 69 mm
- Thread length: 52 mm
- Tightening torque max: ≤ 40 Nm
- EMC compliant according to EN 60947-5-2
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Switching output: PNP, complementary
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with 8 mm sensing range
- Flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with complementary function
- Connection via male connector M12, 4-pin
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

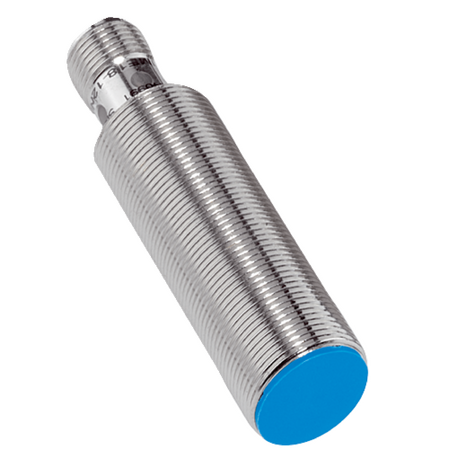

The SICK IME18-08BPPZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
