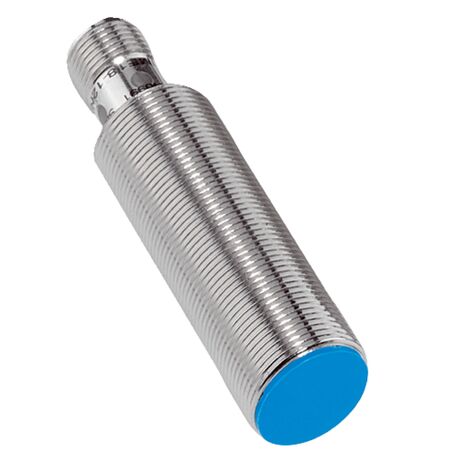

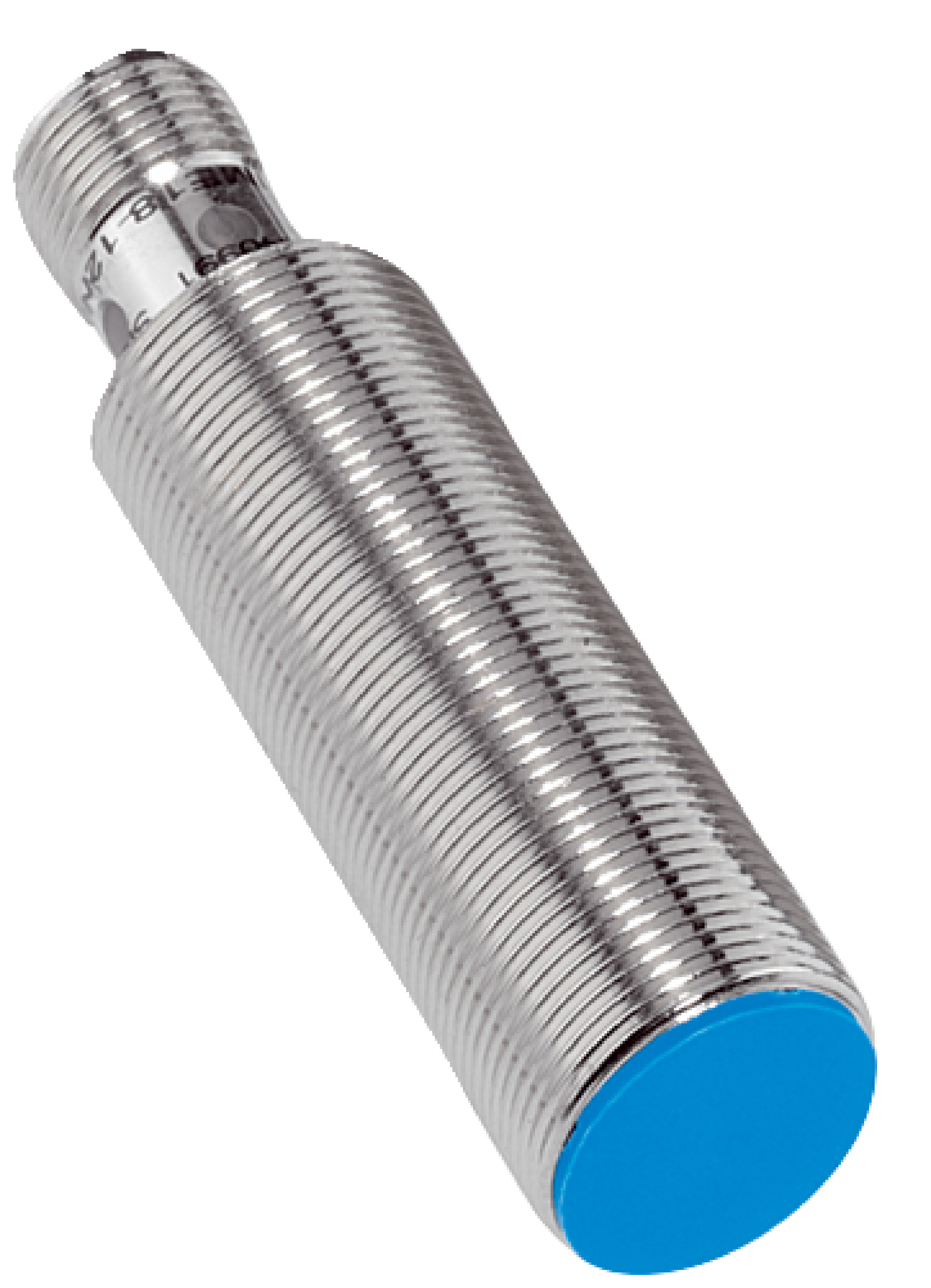

Inductive Proximity Sensor M18 | IP67 Rated | NPN Normally Open Output | 1000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a switching frequency of up to 1000 Hz and a robust brass housing, this sensor is perfect for metal detection and position sensing in machinery, ensuring long-lasting performance and minimal environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | IP67 Rated | NPN Normally Open Output | 1000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040974
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Sensor, SICK Proximity Switch, M18 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN, normally open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 52 mm
- Tightening torque max: ≤ 40 Nm
- Switching frequency: 1,000 Hz
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with 8 mm sensing range
- Flush installation type
- Switching frequency up to 1,000 Hz
- NPN normally open (NO) switching output
- Male connector M12, 4-pin connection
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Position sensing in machinery
- Conveyor system monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-08BNSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
