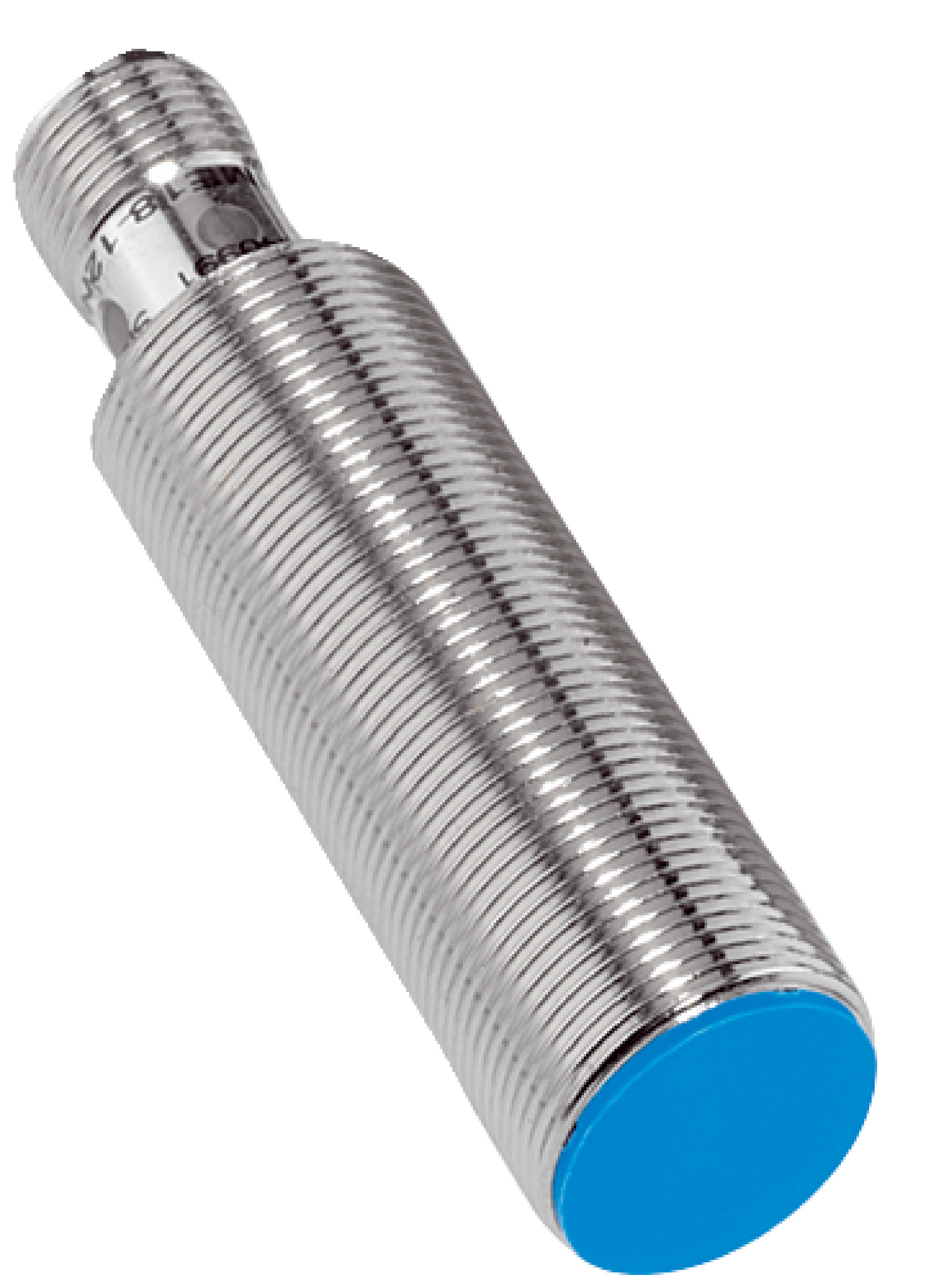

Inductive Proximity Sensor M18 | IP67 Rated | PNP Output | Flush Mount Design | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring an IP67 enclosure for dust and water protection. With a PNP output and a sensing range of 8 mm, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring high performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | IP67 Rated | PNP Output | Flush Mount Design | by SICK
Brand: SICK
SKU: 1040966
Alternatively Known As: Inductive Proximity Sensor M18, M18 Proximity Sensor, PNP Proximity Sensor, Flush Mount Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally open
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 52 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with 8 mm sensing range
- Flush installation type
- Switching frequency up to 1,000 Hz
- PNP switching output with normally open function
- Male connector M12, 4-pin connection
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- High resistance to environmental factors reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

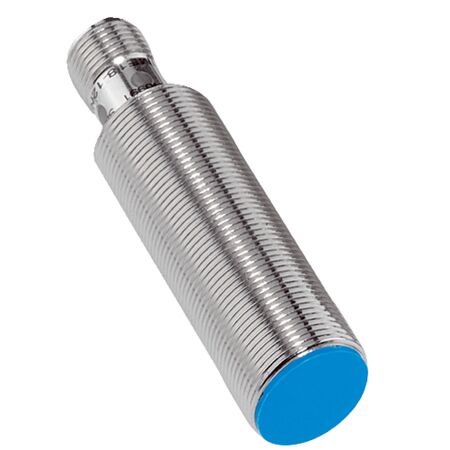

The SICK IME18-08BPSZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
