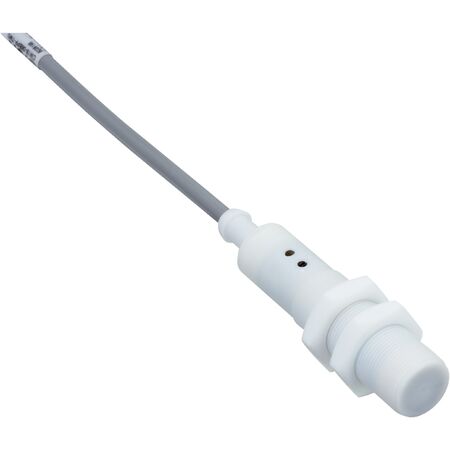

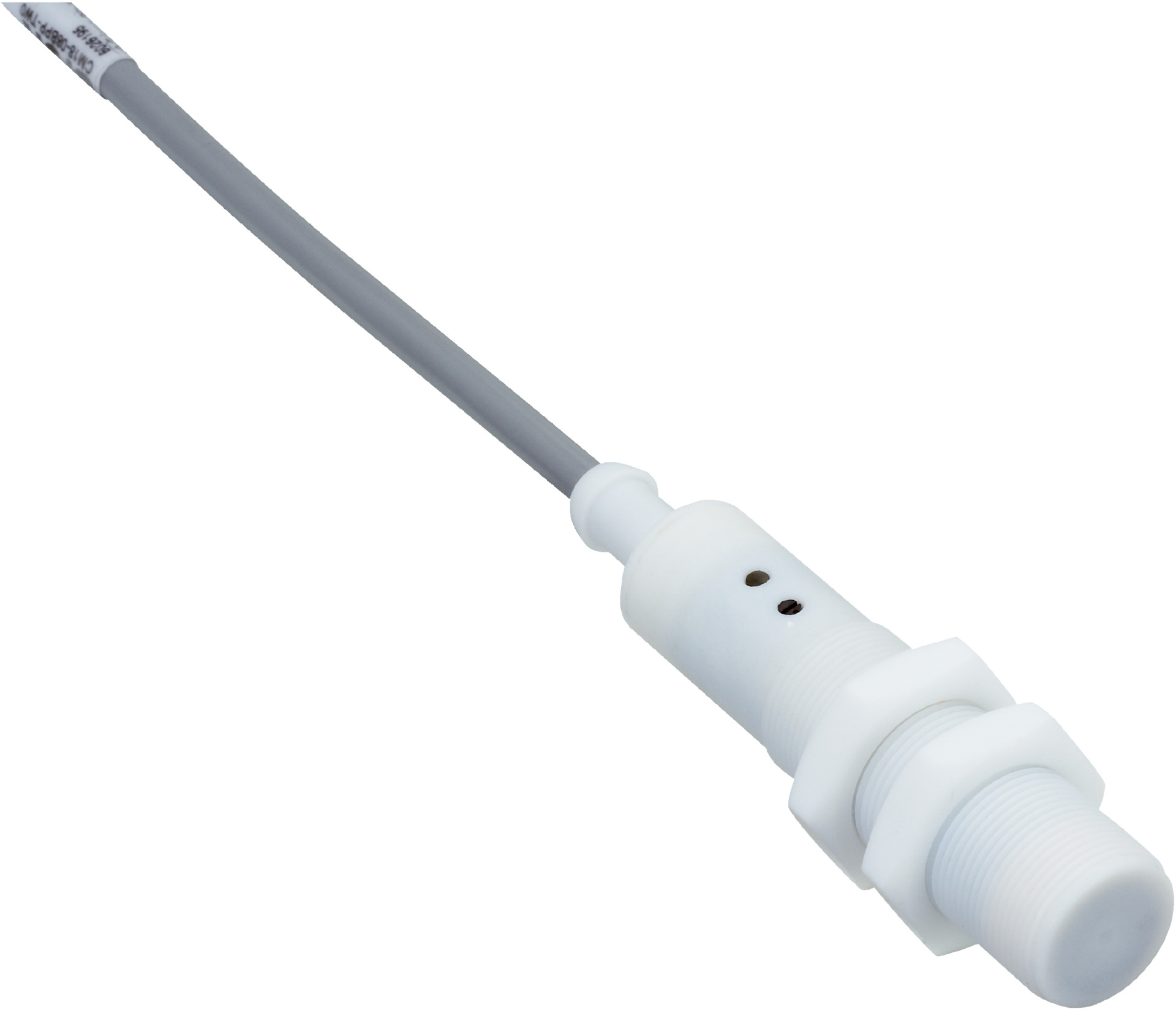

Inductive Proximity Sensor M18 | IP67 Rated | PNP Output | 30 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a sensing range of 3 mm to 8 mm and a PNP switching output, it’s perfect for position sensing in manufacturing lines and safety systems. Built to withstand harsh environments, this sensor ensures durability and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 10 mA
- Voltage drop: ≤ 2.5 V DC
- Switching output: PNP, complementary
- Switching frequency: 30 Hz
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Cable material: PVC, conductor size 0.34 mm²
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +60 °C
- Housing material: PTFE coating
- Thread size: M18 x 1
- Enclosure rating: IP67
- Dimensions (H x L x W): 18mm x 71.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Sensing range from 3 mm to 8 mm
- Flush installation type
- Switching frequency of 30 Hz
- PNP switching output with complementary function
- Cable connection, 4-wire, 2 m length
- Adjustment potentiometer for sensitivity (270°)
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +60 °C
- Housing material with PTFE coating
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CM18-08BPP-TW0 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
