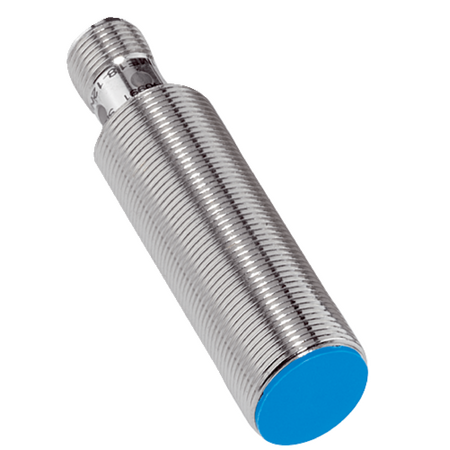

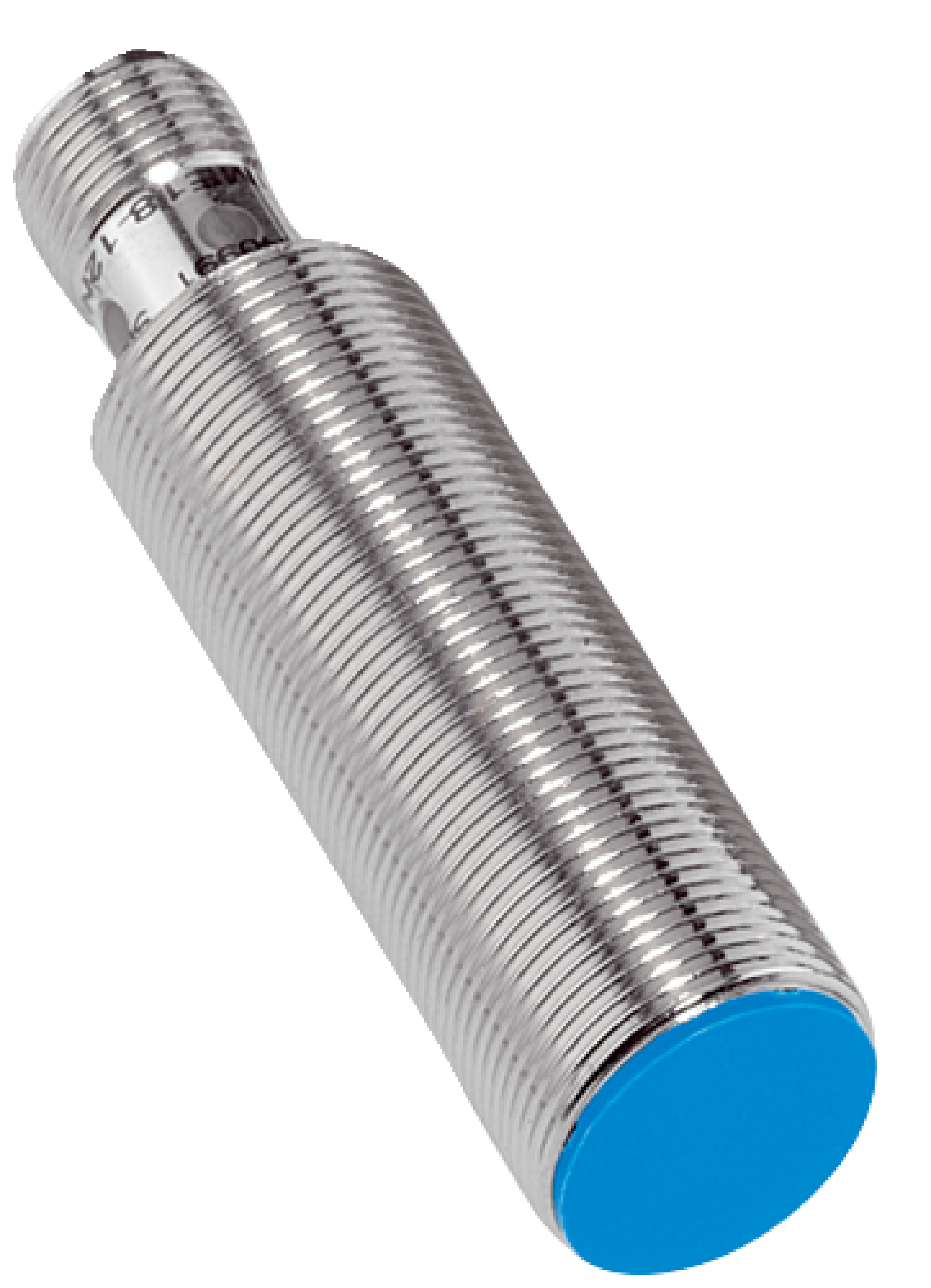

Inductive Proximity Sensor M18 | IP67 Rated | PNP Output | 5mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a robust IP67 enclosure for dust and water protection. With a PNP switching output and a sensing range of 5mm, it's perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring high performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M18, M18 Proximity Sensor, SICK IME18 Sensor, Metal Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Thread length: 52 mm
- Tightening torque max: ≤ 40 Nm
- EMC compliant according to EN 60947-5-2
- Switching output: PNP, normally open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with 5 mm sensing range
- Flush installation type
- Switching frequency of 1,000 Hz
- PNP switching output with NO function
- Connection via male M12, 4-pin connector
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-05BPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
