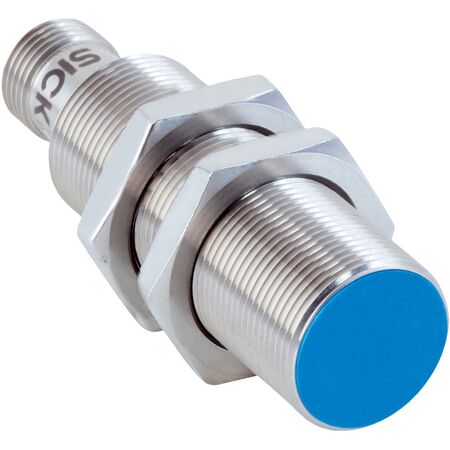

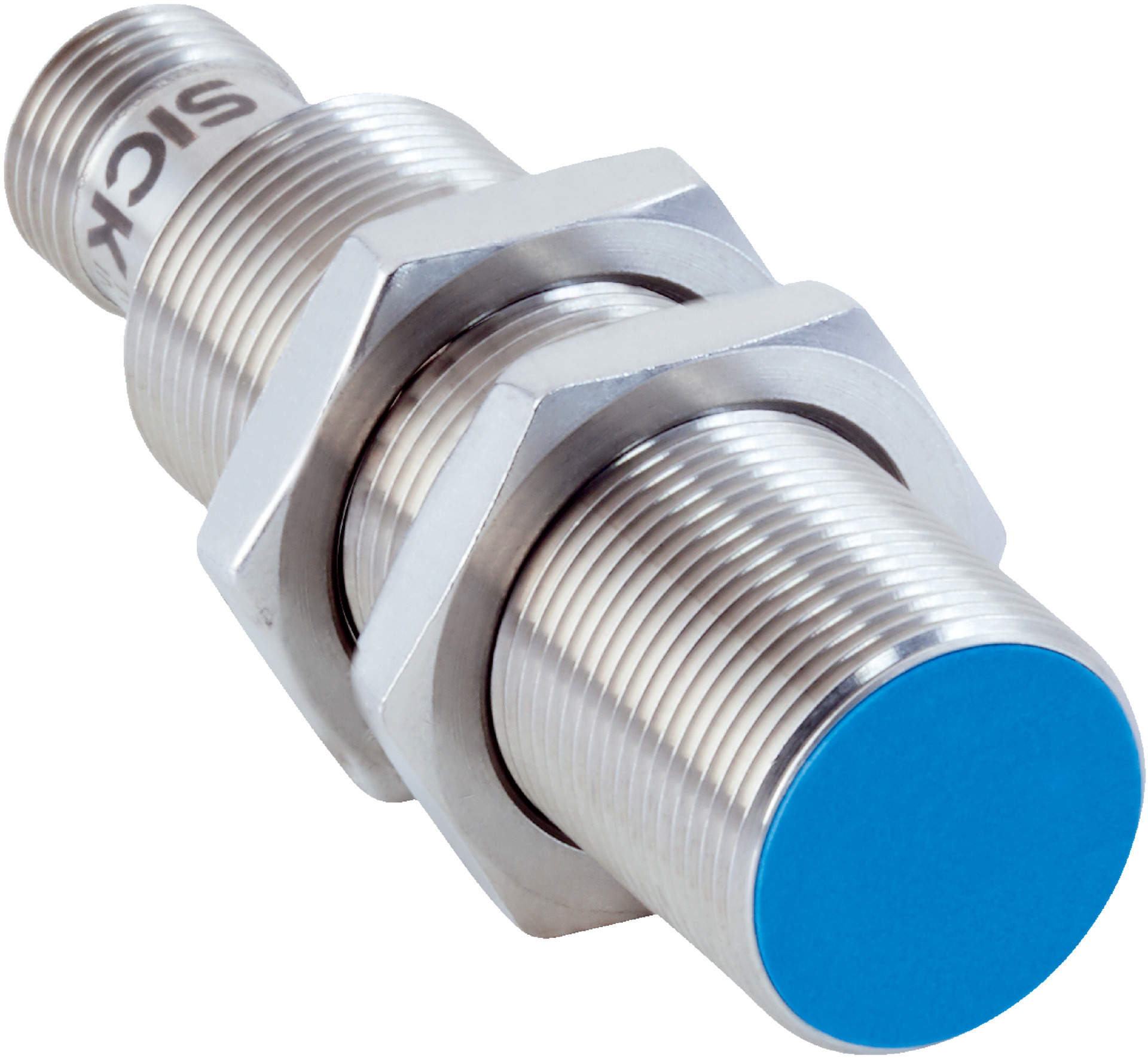

Inductive Proximity Sensor M18 | IP68 Rated | 14mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation. With a sensing range of 14 mm and an IP68 rated enclosure, it excels in environments with coolants and lubricants. Built for machine safety and process control, this sensor features a robust nickel-plated brass housing and a service interface for advanced configuration, ensuring durability and efficiency in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 150 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 50 mA
- Switching output: PNP, normally closed (NC)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP68
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Operating temperature: -25 °C to +75 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Tightening torque max: ≤ 30 Nm
- Protection class: III
- EMC: According to EN 60947-5-2
- Display: Yellow LED for output state, Green LED for stable on/off state
- Service interface: IO-Link
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 14 mm with safe sensing range of 11.34 mm
- Quasi-flush installation type
- Switching frequency of 25 Hz with PNP switching output
- Male connector M12, 4-pin connection type
- IP68 rated enclosure for high protection
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator for easy setup
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
- Service interface IO-Link for advanced configuration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Resistant to harsh environments minimizing environmental contamination
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMX18-14BPOZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications.
