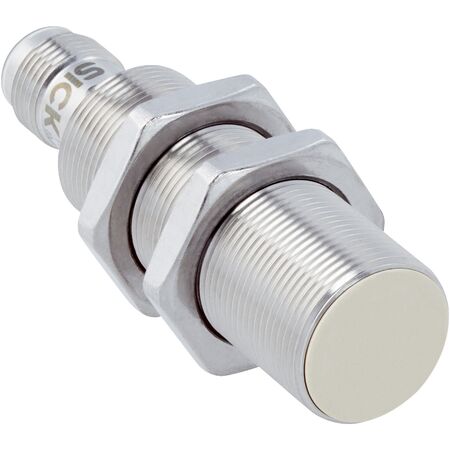

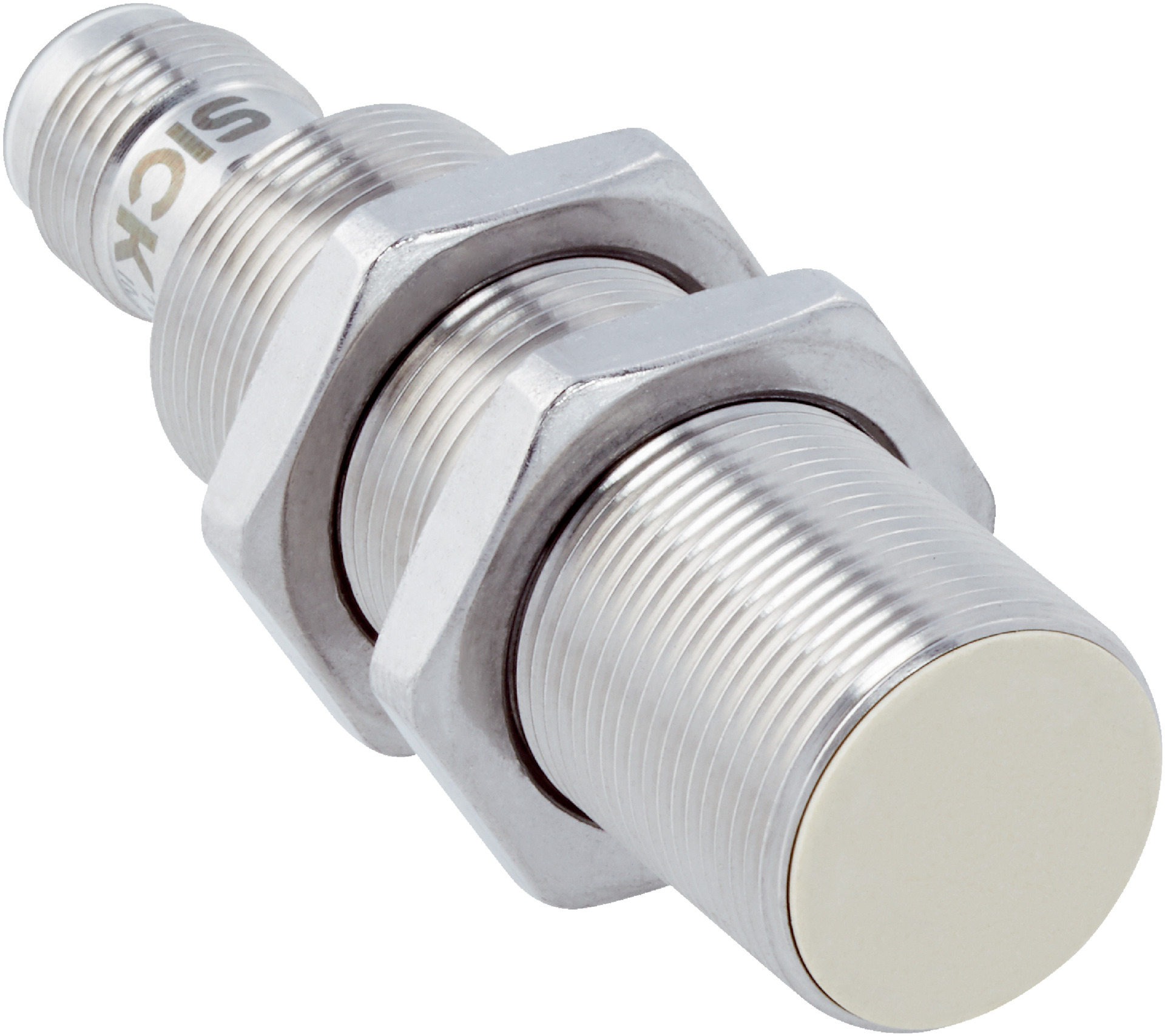

Inductive Proximity Sensor M18 | IP68 & IP69K Rated | 8mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor M18 is designed for robust industrial automation, featuring an 8mm sensing range and IP68/IP69K enclosure ratings for high protection in hygienic and washdown zones. With a PNP complementary output and a switching frequency of 1,000 Hz, this sensor ensures precise object detection even in challenging conditions, making it ideal for various applications requiring durability and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP complementary
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP68 and IP69K
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 65mm x 65mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Quasi-flush installation type
- Switching frequency of 1,000 Hz with PNP complementary output
- Male connector M12, 4-pin connection
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Equipped with IO-Link V1.0 communication interface
- Stainless steel V4A housing (DIN 1.4404 / AISI 316L) with plastic sensing face
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring precise object detection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Resistant to cleaning agents reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMF18-08BPPNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
