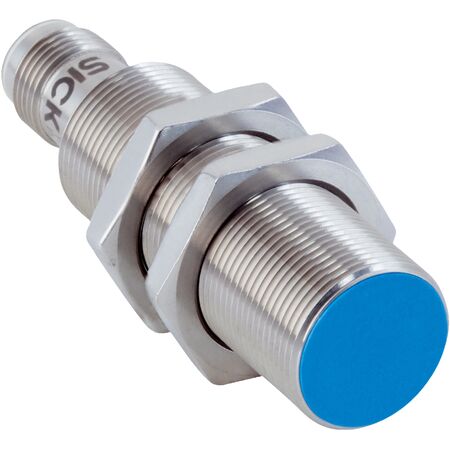

Inductive Proximity Sensor M18 | IP68 & IP69K Rated | PNP Output | 8mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for robust sensing in challenging environments, featuring an IP68 and IP69K rated enclosure for high protection against dust and water. With a switching frequency of 1,000 Hz and a sensing range of 8 mm, it's perfect for mobile machines and applications exposed to coolants and lubricants. Built to withstand harsh conditions, this sensor ensures reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally open
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP68, IP69K
- Shock resistance: 100 g, 11 ms shocks
- Vibration resistance: 25 g peak, 10 Hz to 2000 Hz
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, LCP
- Housing length: 69 mm
- Thread length: 51 mm
- Tightening torque max: ≤ 30 Nm
- Protection class: III
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with 8 mm sensing range and 6.48 mm safe sensing range
- Flush installation type
- Switching frequency of 1,000 Hz with PNP normally open output
- Male connector M12, 4-pin connection
- IP68 and IP69K rated enclosure for high protection
- Resistant against coolant lubricants and temperature resistant
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant withstanding harsh environments
- Wide ambient operating temperature range from -40 °C to +100 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMS18-08BPSZC0SS03 inductive proximity sensor is available for immediate purchase, ideal for industrial and mobile machine applications requiring reliable sensing in harsh environments.
