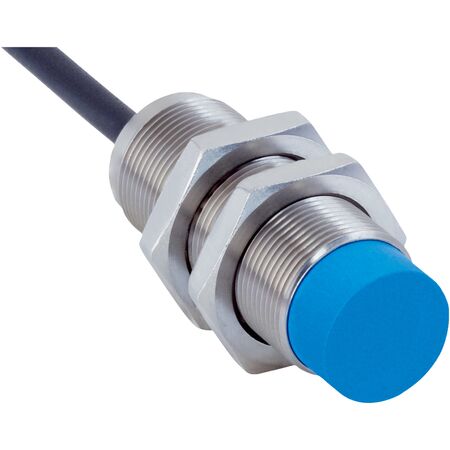

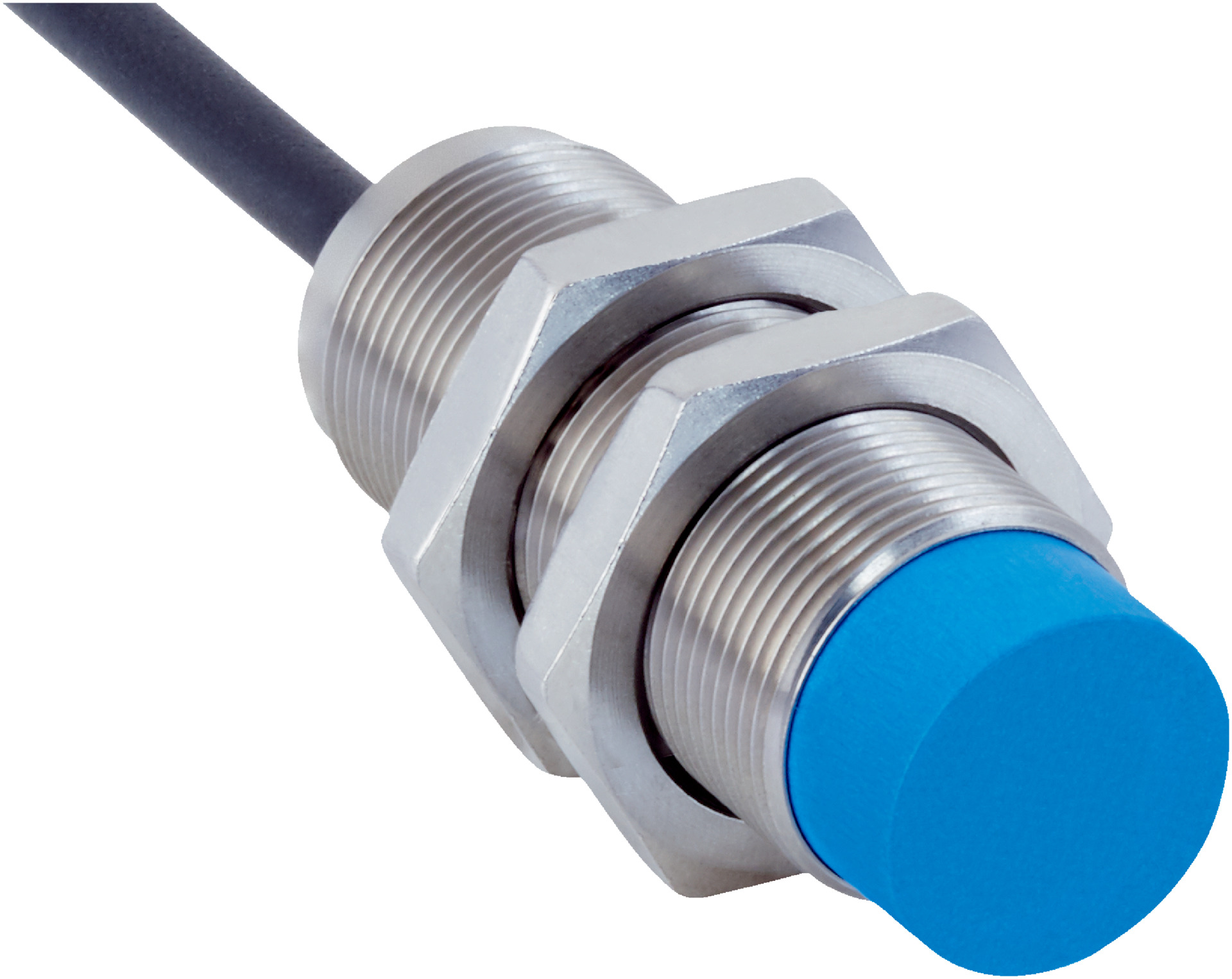

Inductive Proximity Sensor M18 | Non-Flush Design | 12mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M18 is designed for robust sensing in challenging environments, featuring a non-flush installation type and a sensing range of 12 mm. With an IP68 and IP69K enclosure rating, it’s perfect for mobile machines and areas exposed to coolants and lubricants, ensuring reliable performance even under harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 5 mm, conductor size 0.5 mm²
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g peak
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Protection class: III
- EMC compliance with multiple standards including ECE-R10 Rev. 5 and DIN ISO 11452-2
- Dimensions (H x L x W): 60mm x 60mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- Switching frequency of 900 Hz
- NPN switching output with NC function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Operating temperature range from -40 °C to +100 °C
- Housing made of stainless steel V2A (AISI 303)
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMS18-12NNOVU2S inductive proximity sensor is available for immediate purchase. Ideal for industrial and mobile machine applications requiring reliable sensing in harsh environments.
