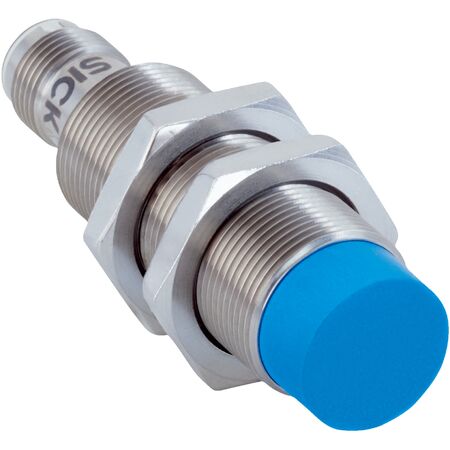

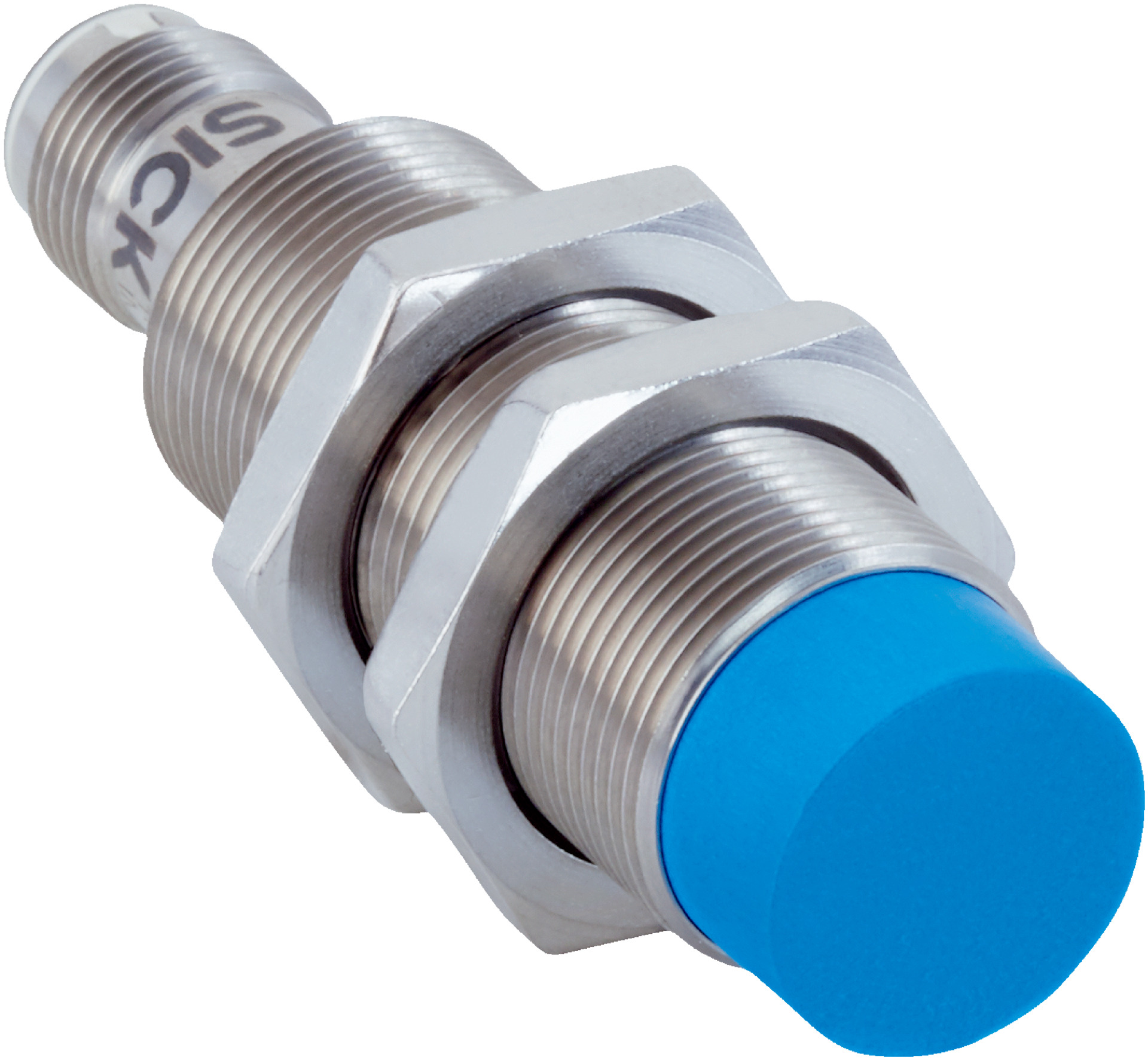

Inductive Proximity Sensor M18 | Non-Flush Design | IP68 & IP69K Rated | 12mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is engineered for robust sensing in challenging environments, featuring a non-flush design and a sensing range of 12 mm. With an IP68 and IP69K rating, it's perfect for mobile machines and areas exposed to coolants and lubricants, ensuring reliable performance even under harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Protection class: III
- EMC compliance: Meets multiple standards including ECE-R10 Rev. 5 and DIN ISO 11452-2
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- Switching frequency of 900 Hz with PNP NC output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMS18-12NPOVC0S inductive proximity sensor is available for immediate purchase, ideal for industrial and mobile machine applications requiring reliable sensing in harsh environments.
