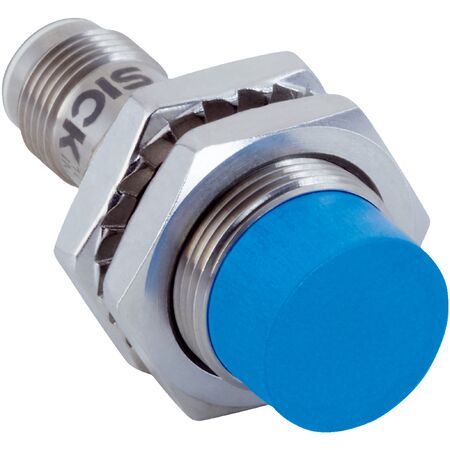

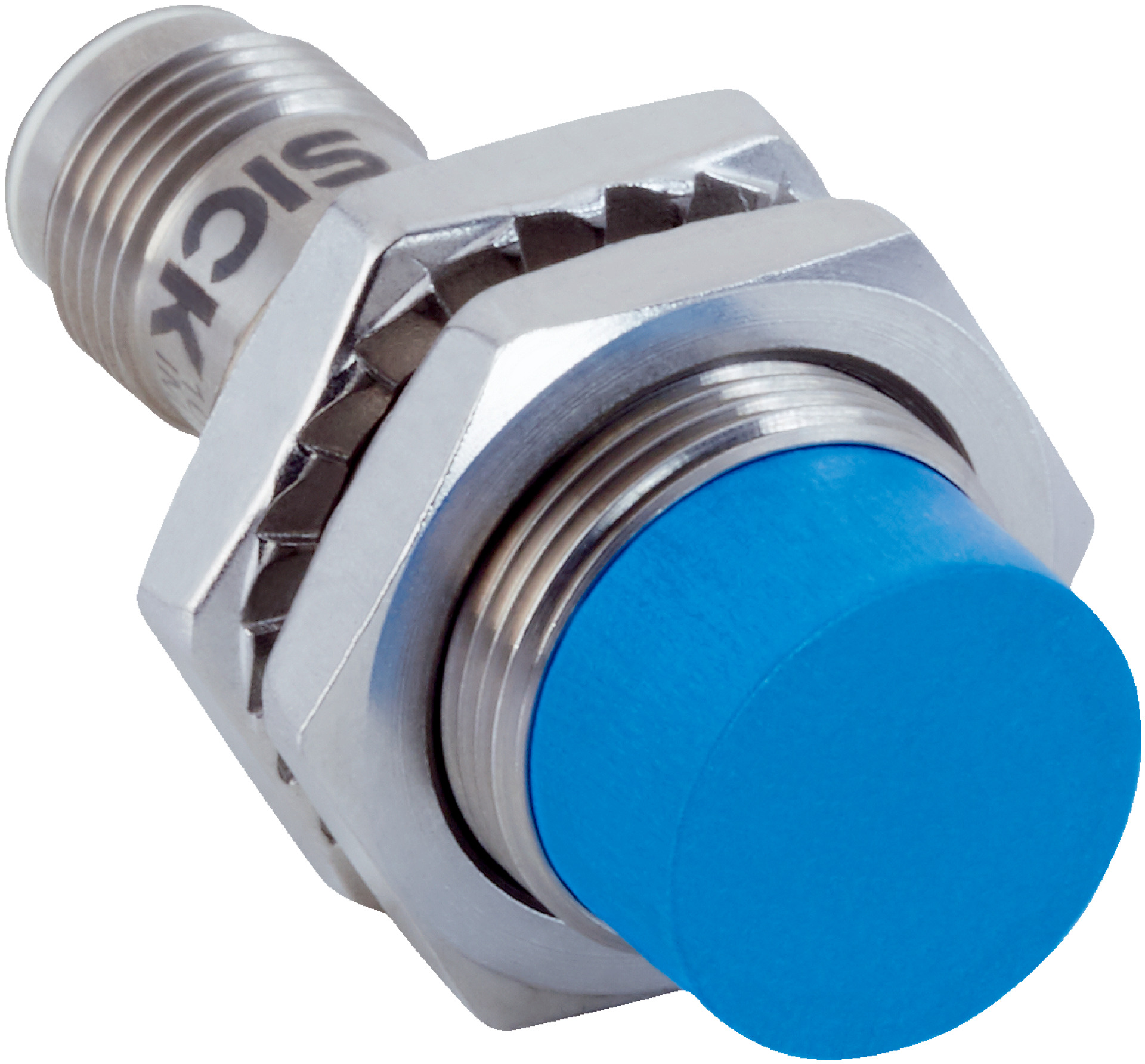

Inductive Proximity Sensor M18 | Non-Flush Installation | IP68 & IP69K Rated | by SICK
Inductive proximity sensor M18 designed for industrial automation, featuring a non-flush installation type and high protection ratings of IP68 and IP69K. With a sensing range of 12 mm and a robust stainless steel housing, this sensor is perfect for harsh environments and applications involving coolant lubricants, ensuring reliable object detection and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | Non-Flush Installation | IP68 & IP69K Rated | by SICK
Brand: SICK
SKU: 1072825
Alternatively Known As: M18 Inductive Proximity Sensor, Non-flush Proximity Sensor, PNP NC Proximity Sensor, Industrial Proximity Sensor M18
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Protection class: III
- Switching output: PNP normally closed (NC)
- Connection type: Male connector M12, 4-pin
- Dimensions (H x L x W): 45mm x 45mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- Switching frequency up to 1,000 Hz
- PNP normally closed (NC) output function
- Male connector M12, 4-pin connection
- High protection rating IP68 and IP69K
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator included
- Shock and vibration resistant with high durability
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolant lubricants and difficult application conditions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMB18-12NPOVC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
