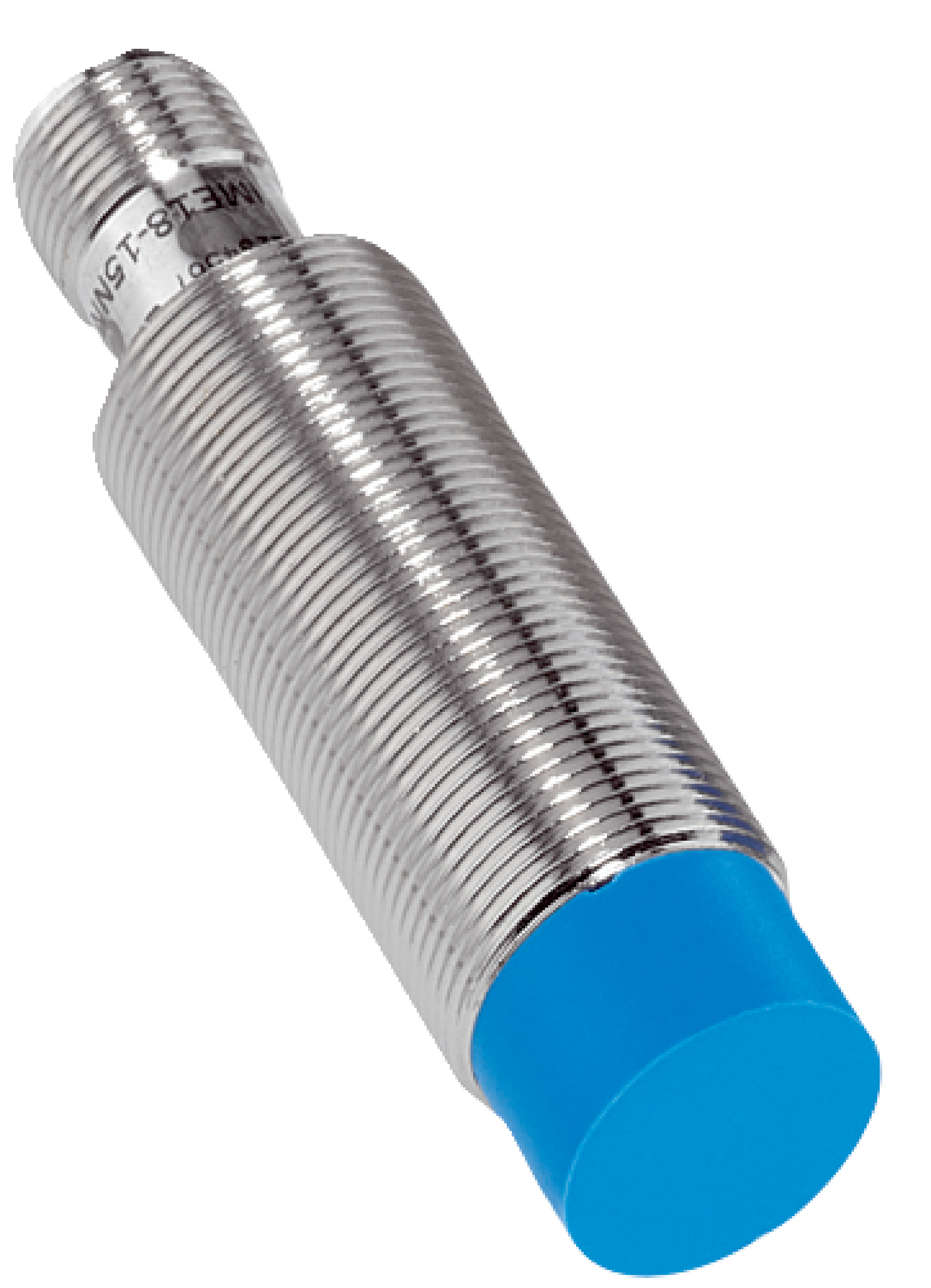

Inductive Proximity Sensor M18 | NPN Normally Open | IP67 Rated | 12mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a sensing range of 12 mm and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 1,000 Hz and robust brass housing, it's perfect for non-flush mounting environments and metal detection applications, ensuring durability and efficiency in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | NPN Normally Open | IP67 Rated | 12mm Sensing Range | by SICK
Brand: SICK
SKU: 1040990
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Sensor, SICK Proximity Switch, NPN Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Connection type: Male connector M12, 4-pin
- Switching output: NPN normally open
- Housing length: 69 mm
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- EMC compliant according to EN 60947-5-2
- Operating temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with 18 mm diameter
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- Non-flush installation type
- High switching frequency of 1,000 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistance up to 30 g
- Short-circuit and power-up pulse protection included
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Non-flush mounting environments requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-12NNSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
