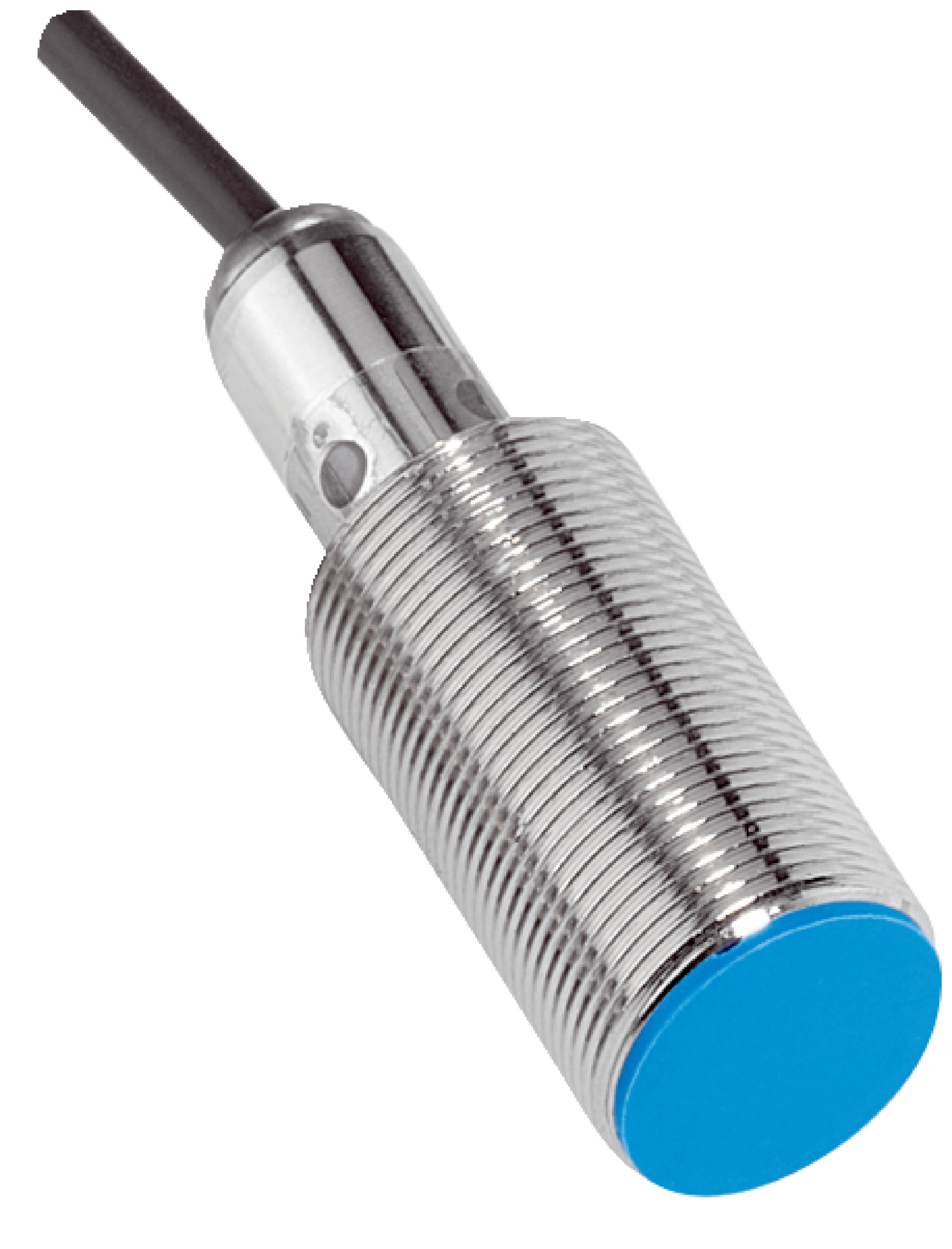

Inductive Proximity Sensor M18 | NPN Normally Open | IP67 Rated | 8mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a sensing range of 8 mm and an IP67 rating for dust and water protection. With a robust brass housing and a switching frequency of 1,000 Hz, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring high performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | NPN Normally Open | IP67 Rated | 8mm Sensing Range | by SICK
Brand: SICK
SKU: 1054020
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, SICK M18 Sensor, NPN Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 40 Nm
- Switching output: NPN, normally open
- Connection type: Cable, 3-wire, 3 m
- Dimensions (H x L x W): 48mm x 48mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Flush installation type
- Switching frequency of 1,000 Hz
- NPN normally open switching output
- Cable connection, 3-wire, 3 m length
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant up to 30 g
- Operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

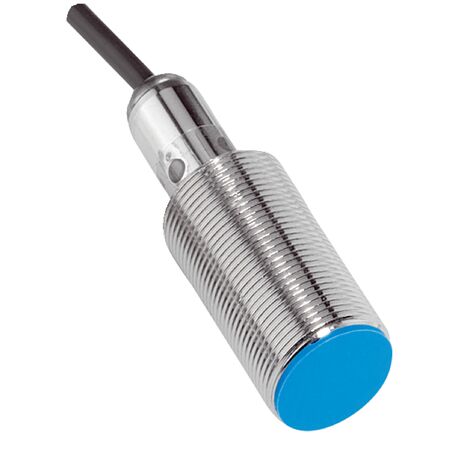

The SICK IME18-08BNSZW3K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
