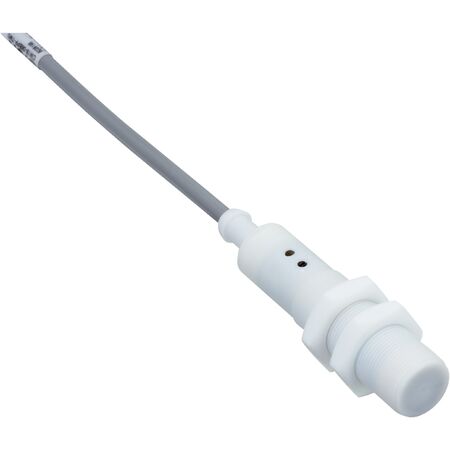

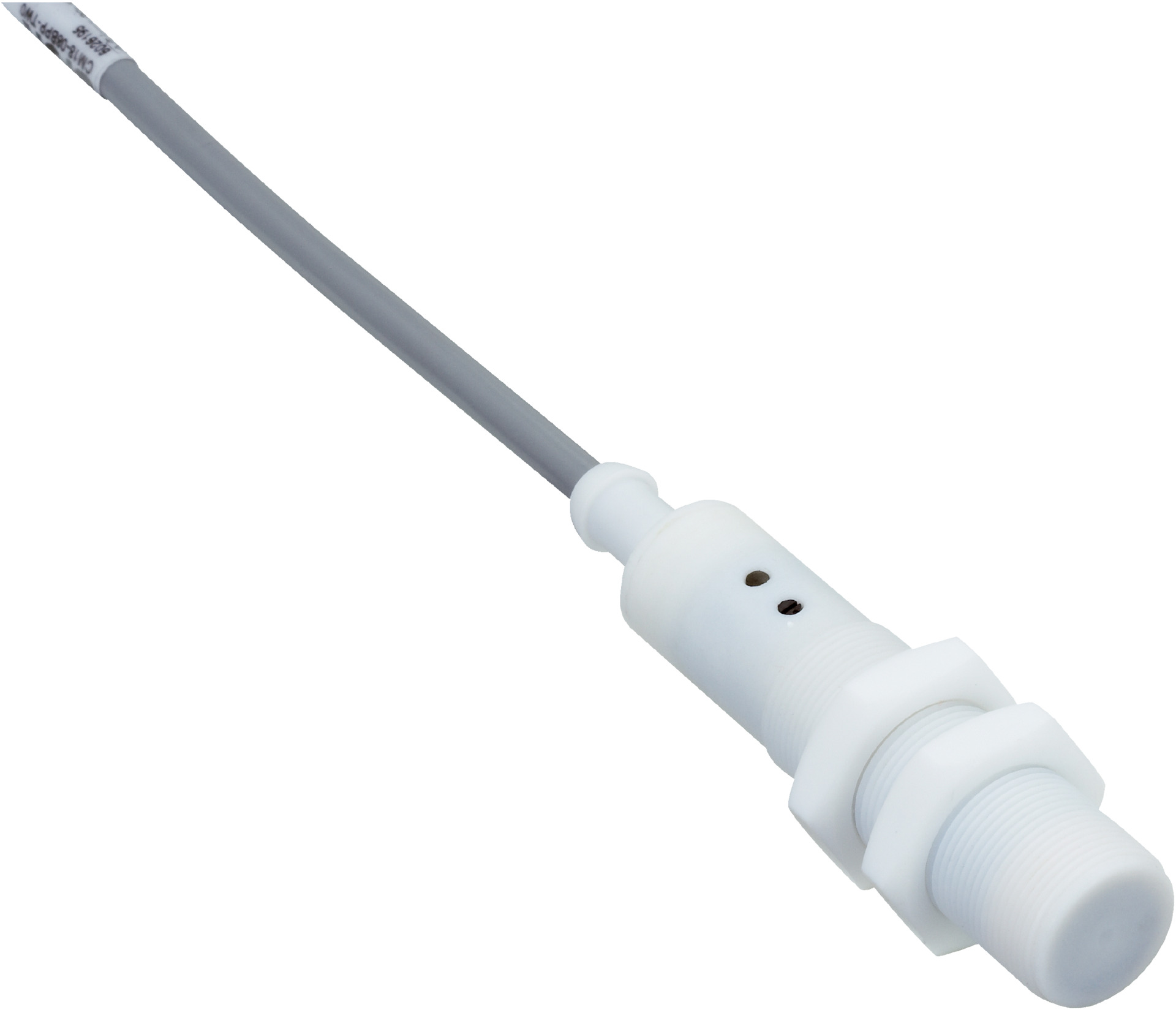

Inductive Proximity Sensor M18 | NPN Output | IP67 Rated | Flush Mount | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation. With a sensing range of 3 mm to 8 mm and an IP67 rated enclosure, it ensures durability in harsh environments. Ideal for manufacturing process control and safety monitoring, this sensor features a high switching frequency of 30 Hz and short-circuit protection, making it perfect for various machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 10 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 30 Hz
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Ambient operating temperature: -25 °C to +60 °C
- Housing material: PTFE coating
- Cable material: PVC, 4-wire, 2 m length
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Thread size: M18 x 1
- Sensing range Sn: 3 mm to 8 mm
- Safe sensing range Sa: 5.76 mm
- Enclosure rating: IP67
- Dimensions (H x L x W): 71.5mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Sensing range from 3 mm to 8 mm
- Flush installation type
- NPN switching output with complementary function
- Cable connection, 4-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Adjustment potentiometer for sensitivity (270°)
- High switching frequency of 30 Hz
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor calibration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Safety and monitoring systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CM18-08BNP-TW0 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
