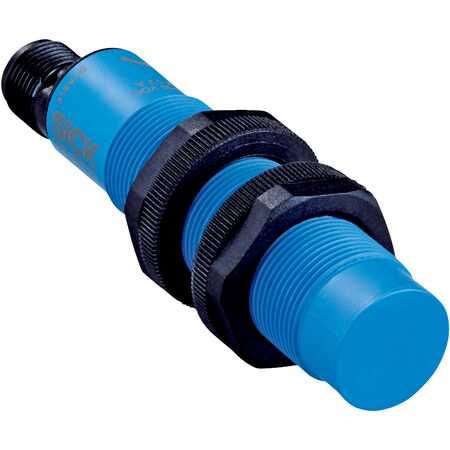

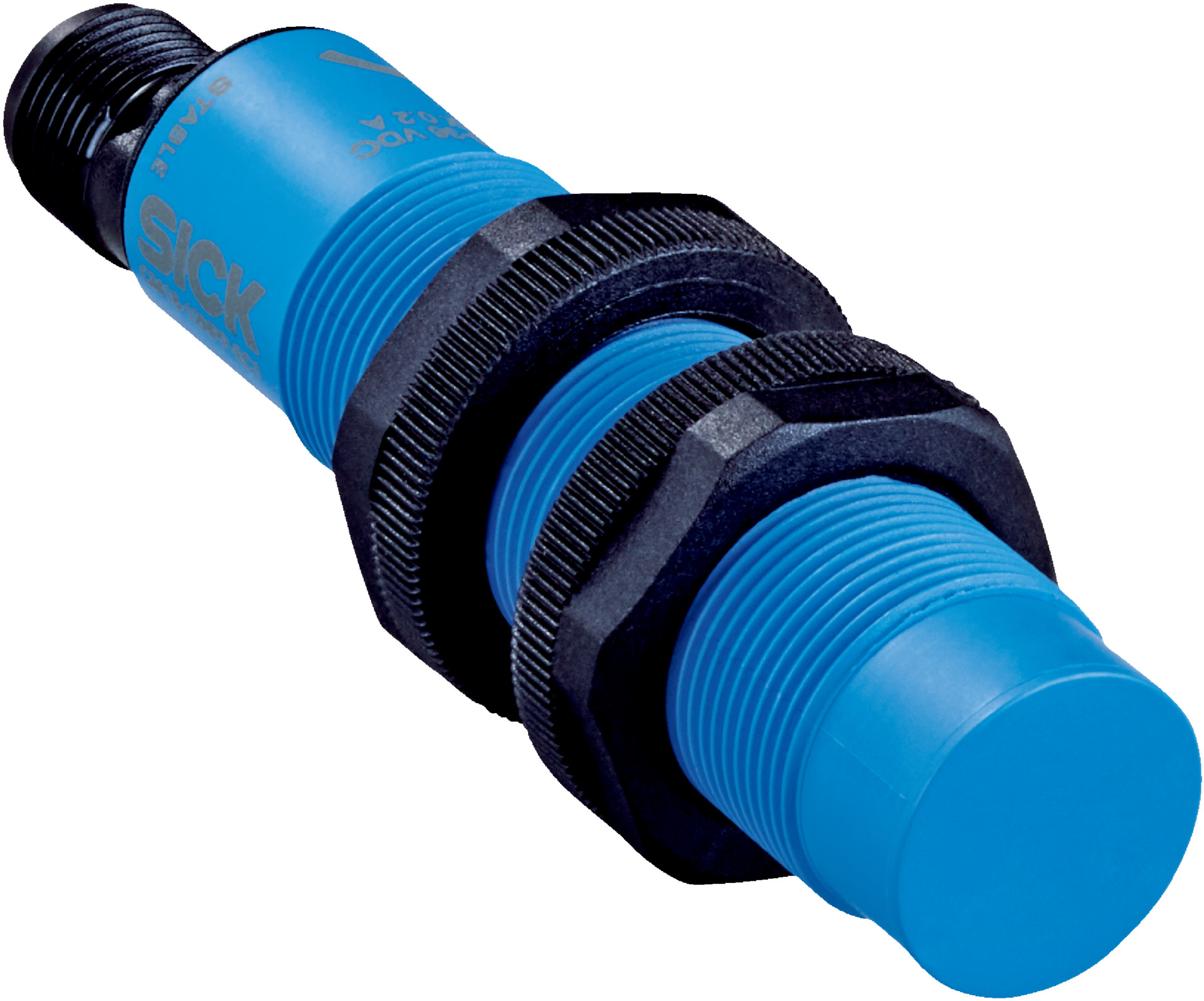

Inductive Proximity Sensor M18 | NPN Output | IP68 & IP69K Rated | 3mm to 12mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a sensing range of 3mm to 12mm and an NPN output. With a robust IP68 and IP69K enclosure rating, it excels in harsh environments, making it ideal for manufacturing process control and position sensing in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 12 mA
- Switching frequency: 50 Hz
- Sensing range Sn: 3 mm to 12 mm
- Safe sensing range Sa: 9.18 mm
- Output type: NPN, complementary, wire configurable
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68 and IP69K
- Operating temperature: -30°C to +85°C
- Storage temperature: -40°C to +85°C
- Housing material: Plastic, PBT
- Shock and vibration resistance according to EN 60068
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 85mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Sensing range from 3 mm to 12 mm
- Non-flush installation type
- Switching frequency of 50 Hz
- NPN switching output with complementary function
- Wire configurable output characteristic
- DC 4-wire electrical wiring
- Sensitivity adjustable via 11-turn potentiometer
- High enclosure rating IP68 and IP69K for harsh environments
- Includes mounting nuts and screwdriver for adjustment
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and adjustment of sensitivity potentiometer.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Non-contact detection in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68/IP69K rated housing reduces waste by extending product life
- Low power consumption with 12 mA current draw
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CM18-12NNP-EC1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
