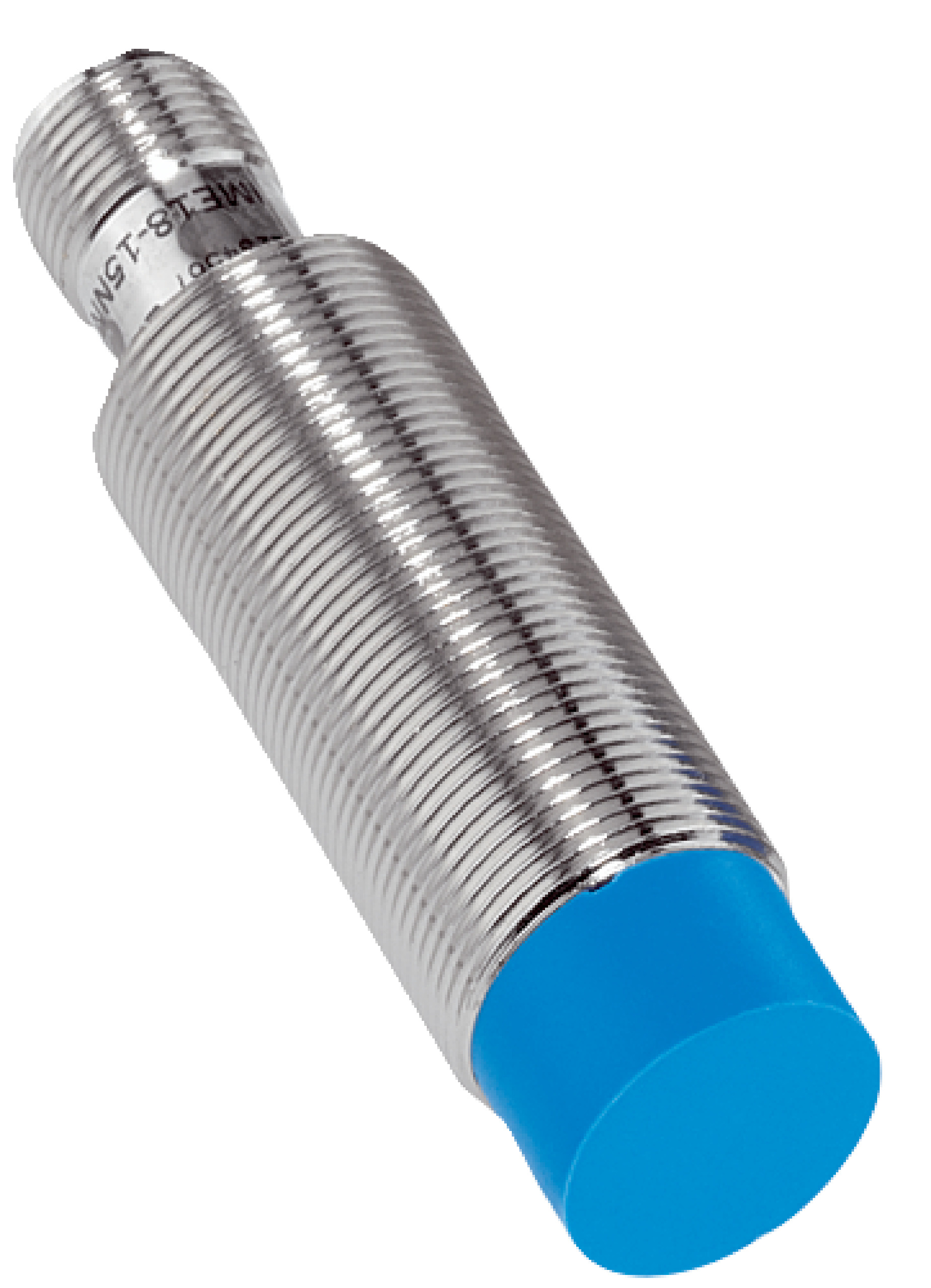

Inductive Proximity Sensor M18 | NPN NC Output | IP67 Rated | 12mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a 12mm sensing range and NPN normally closed output. With an IP67 rated enclosure, it withstands dust and water, making it perfect for harsh environments. Built for efficiency, this sensor operates within a temperature range of -25 °C to +75 °C, ensuring durability and long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | NPN NC Output | IP67 Rated | 12mm Sensing Range | by SICK
Brand: SICK
SKU: 1040994
Alternatively Known As: Inductive Proximity Sensor M18, NPN NC Inductive Sensor, SICK IME18 Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN normally closed
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 40 Nm
- Operating temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with 12 mm sensing range
- Non-flush installation type
- Switching frequency up to 1,000 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and mounting torque compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME18-12NNOZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
