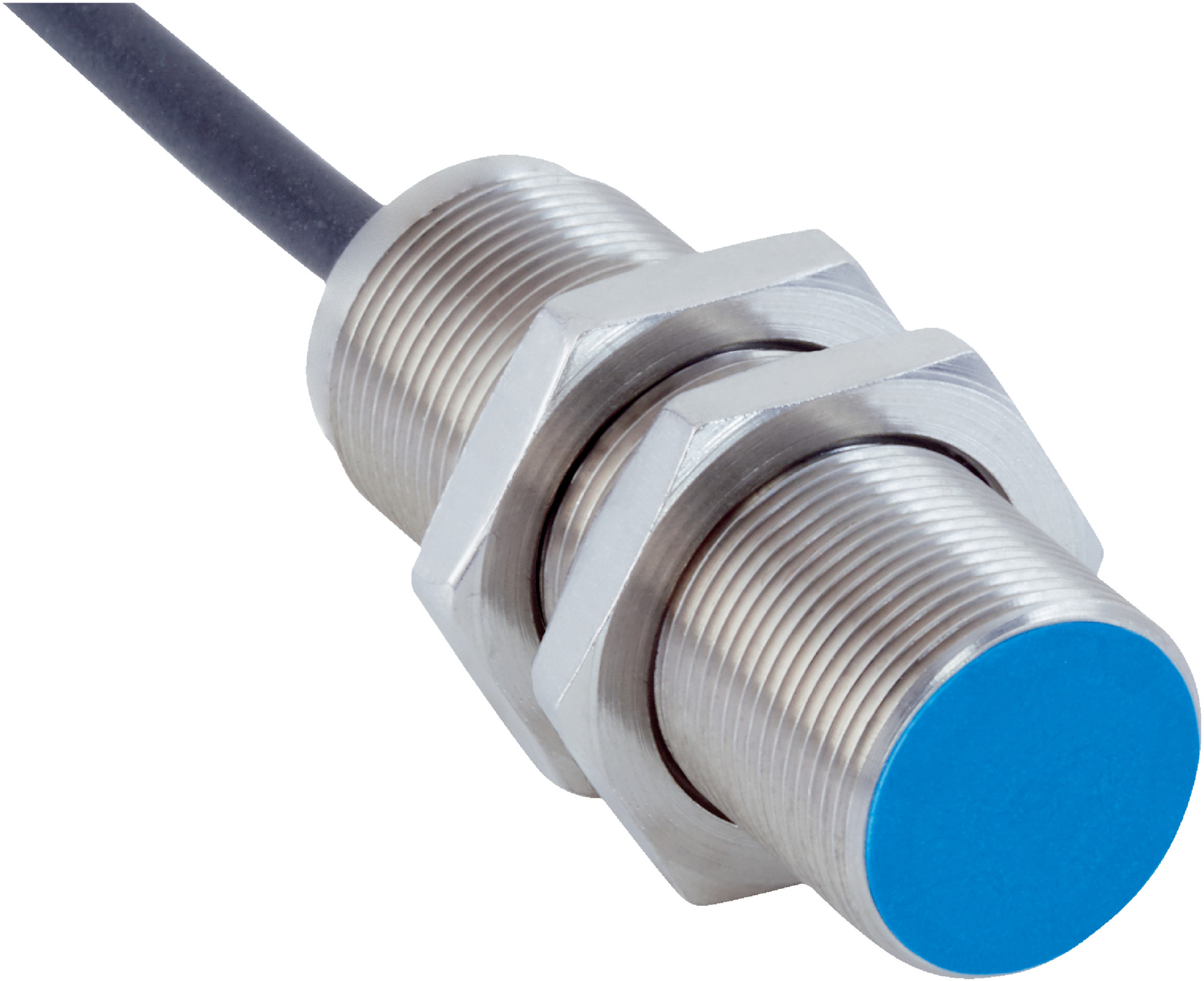

Inductive Proximity Sensor M18 | NPN Normally Closed | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M18 is designed for robust sensing in challenging environments, featuring a sensing range of 8 mm and a switching frequency of 1,000 Hz. With an IP68 and IP69K enclosure rating, it's perfect for hygienic and washdown zones, ensuring reliable performance in mobile machines and industrial applications. Built with a durable stainless steel housing, this sensor is resistant to cleaning agents and offers high EMC immunity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Switching output: NPN, normally closed
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length
- Enclosure rating: IP68 and IP69K
- Operating temperature range: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Shock resistance: 100 g, 11 ms shocks
- Vibration resistance: 25 g peak, 10 Hz to 2,000 Hz
- Short-circuit and power-up pulse protection included
- EMC compliance: Meets multiple standards including ECE-R10 Rev. 5 and DIN ISO 11452-2
- Dimensions (H x L x W): 60mm x 60mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Quasi-flush installation type
- Switching frequency of 1,000 Hz with NPN normally closed output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Stainless steel V4A housing and plastic LCP sensing face
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct wiring and mounting for optimal sensor performance and safety.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments without damage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMS18-08BNONU2S inductive proximity sensor is available for immediate purchase, ideal for industrial, mobile machinery, and hygienic zone applications.
