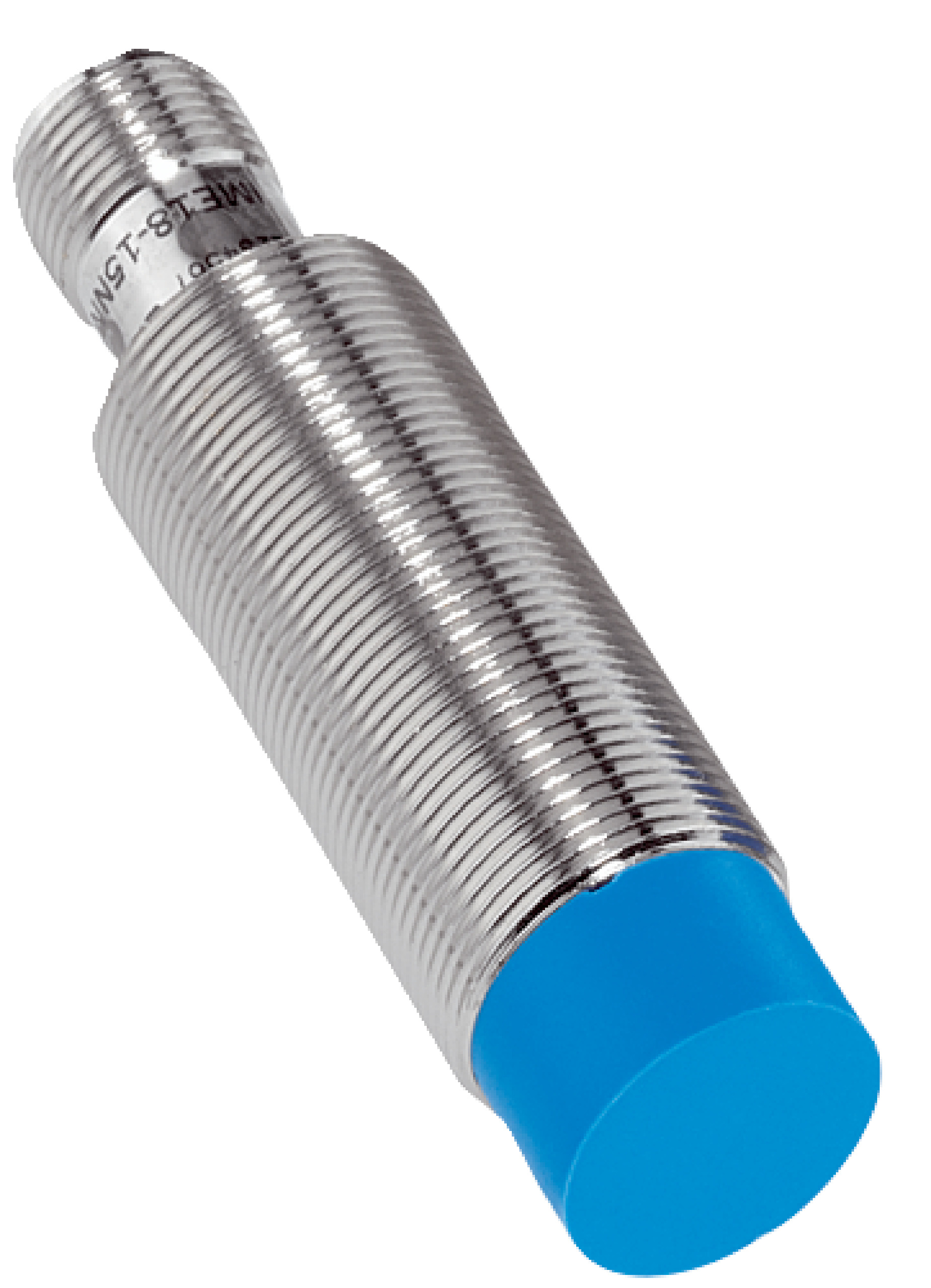

Inductive Proximity Sensor M18 | PNP Output | IP67 Rated | 12mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation. With a sensing range of 12 mm and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and position sensing in machinery. Built for durability and energy efficiency, it ensures optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | PNP Output | IP67 Rated | 12mm Sensing Range | by SICK
Brand: SICK
SKU: 1044127
Alternatively Known As: Inductive Proximity Sensor M18, PNP Proximity Switch, SICK IME18 Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Housing length: 69 mm
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- EMC compliance according to EN 60947-5-2
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with 18 mm diameter
- Non-flush installation type
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- Switching frequency up to 1,000 Hz
- PNP switching output with complementary output function
- Connection via male connector M12, 4-pin
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance up to 30 g
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-12NPPZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
