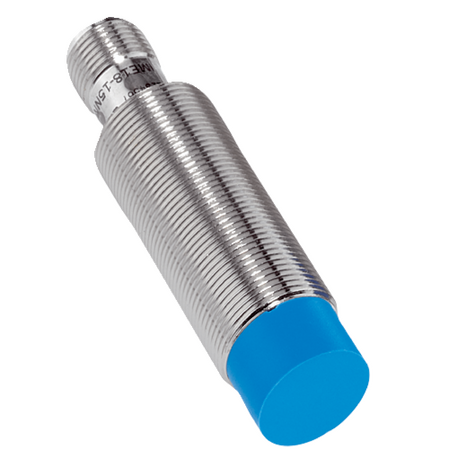

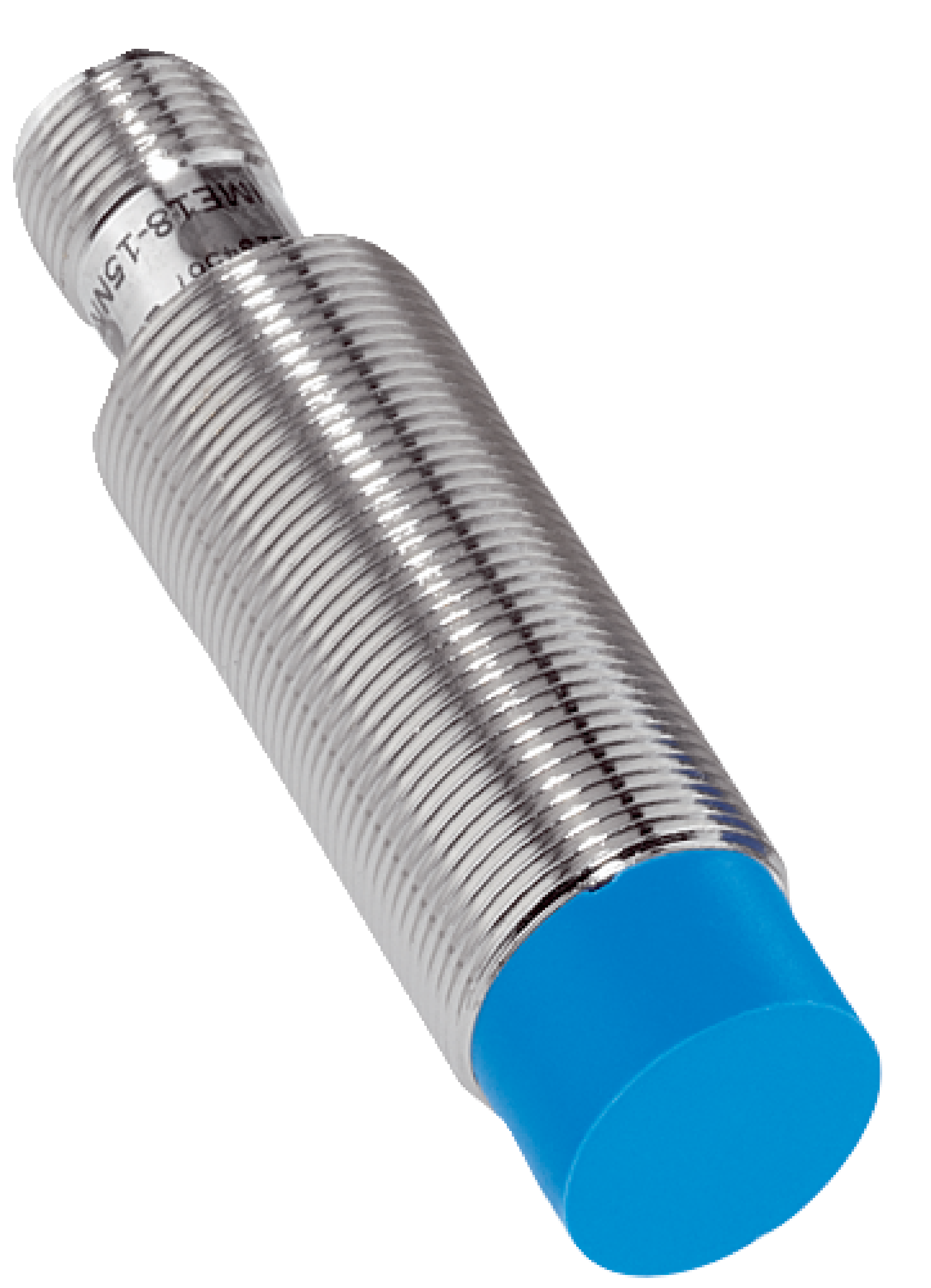

Inductive Proximity Sensor M18 | PNP Output | IP67 Rated | 12mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a PNP output and a robust IP67 rated enclosure for dust and water protection. With a 12mm sensing range and high switching frequency of 1,000 Hz, it's perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Sensor, PNP Proximity Switch, Non-flush Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M18 x 1 thread size with 12 mm sensing range
- Non-flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Non-flush mounting environments requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-12NPSZC0SS33 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
