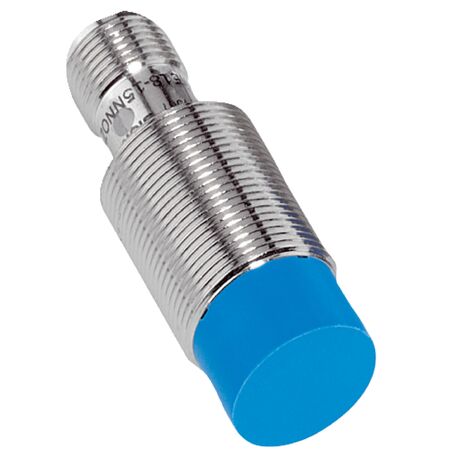

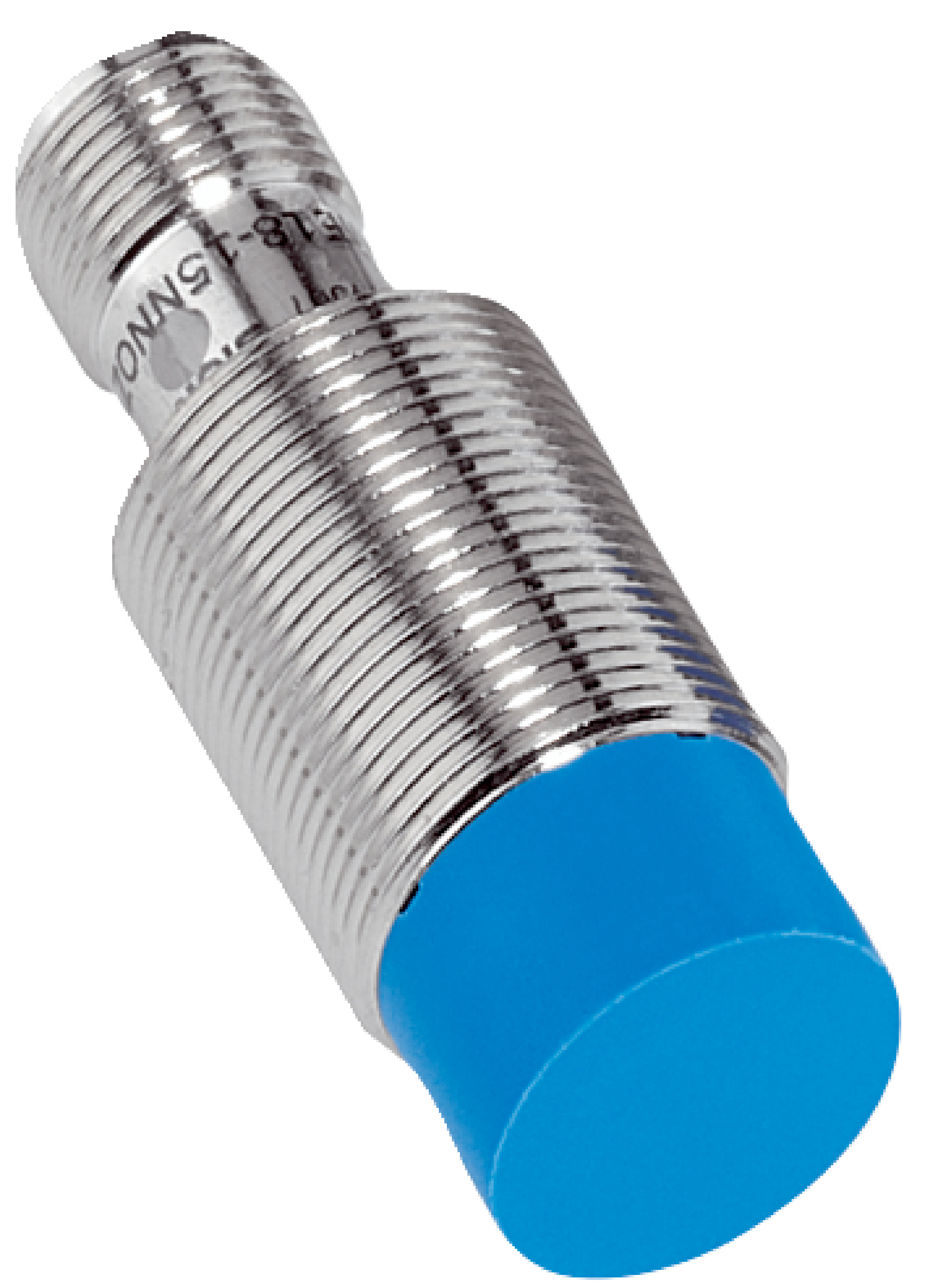

Inductive Proximity Sensor M18 | PNP Output | IP67 Rated | 20mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a PNP complementary output and an IP67 rated enclosure for dust and water protection. With a sensing range of 20 mm and a robust brass housing, this sensor is perfect for harsh environments, ensuring durability and efficiency in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 23 mm
- Tightening torque max: ≤ 30 Nm
- Connector: Male M12, 4-pin
- Switching output: PNP complementary
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency up to 200 Hz
- PNP complementary switching output
- Male connector M12, 4-pin connection
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact detection in harsh environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating for long service life reducing waste
- Energy-efficient operation with low power consumption
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IME18-20NPPZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
