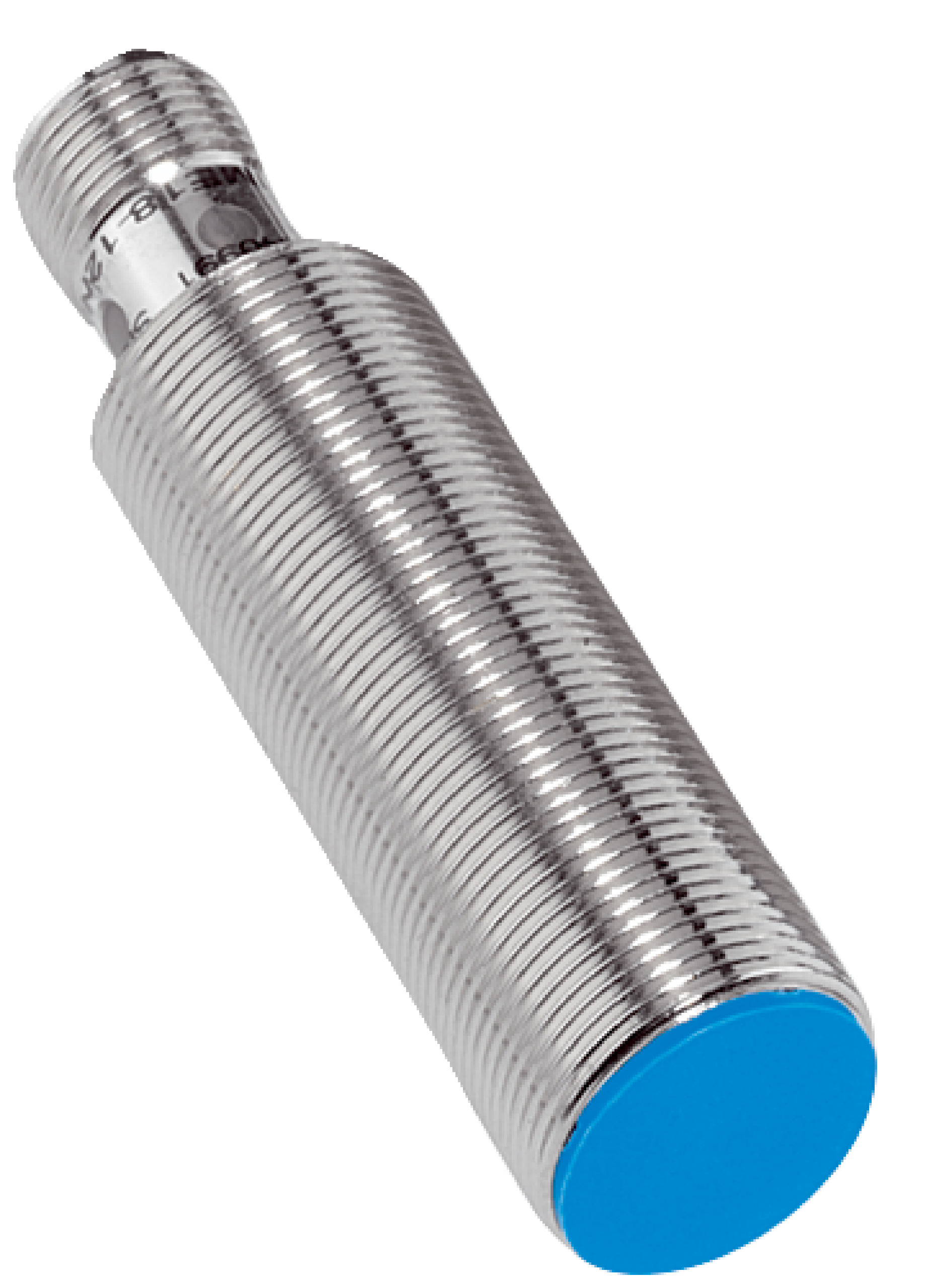

Inductive Proximity Sensor M18 | PNP Output | IP67 Rated | 8mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a PNP output and an IP67 enclosure rating for dust and water protection. With a sensing range of 8 mm and a high switching frequency of 1,000 Hz, it's perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring safety and efficiency in factory environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | PNP Output | IP67 Rated | 8mm Sensing Range | by SICK
Brand: SICK
SKU: 1040970
Alternatively Known As: Inductive Proximity Sensor M18, PNP Proximity Sensor, Flush Mount Proximity Sensor, Metal Detection Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, NC function
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 40 Nm
- Switching frequency: 1,000 Hz
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with a diameter of 18 mm
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with NC output function
- Connection via male connector M12, 4-pin
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance up to 30 g
- Wide ambient operating temperature range from –25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor installation and wiring standards to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

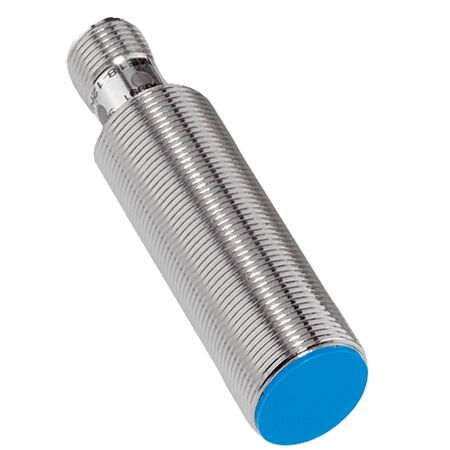

The SICK IME18-08BPOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
