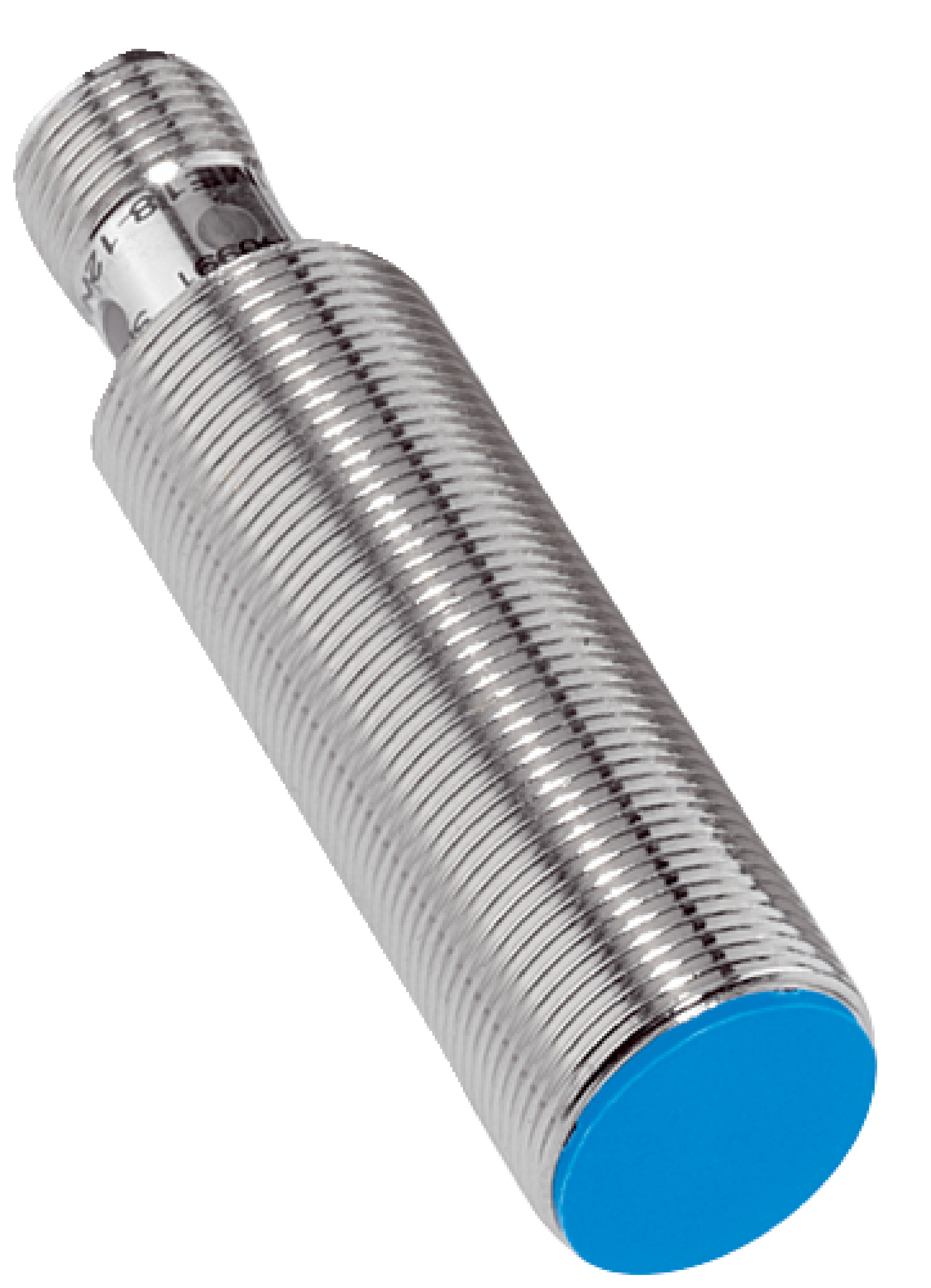

Inductive Proximity Sensor M18 | PNP Output | IP67 Rated | 8mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a PNP output and an impressive 8mm sensing range. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for harsh environments. This sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, providing high switching frequency and robust performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | PNP Output | IP67 Rated | 8mm Sensing Range | by SICK
Brand: SICK
SKU: 1051973
Alternatively Known As: Inductive Proximity Sensor M18, PNP Proximity Sensor, Flush Mount Proximity Sensor, Metal Detection Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 400 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 40 Nm
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, NC function
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Flush installation type
- High switching frequency of 1,000 Hz
- PNP switching output with NC output function
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Extended operating temperature range from -40 °C to +60 °C
- Shock and vibration resistance up to 30 g
- Short-circuit and power-up pulse protection included
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

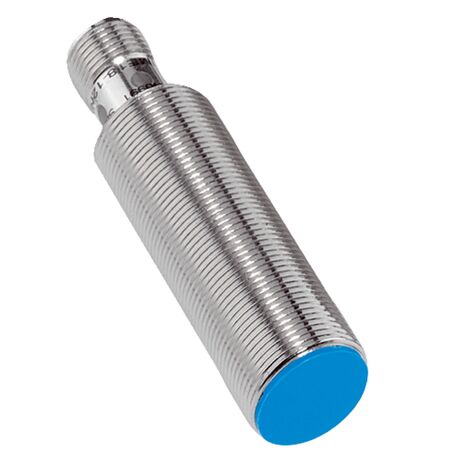

The SICK IME18-08BPOZC0SS12 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
