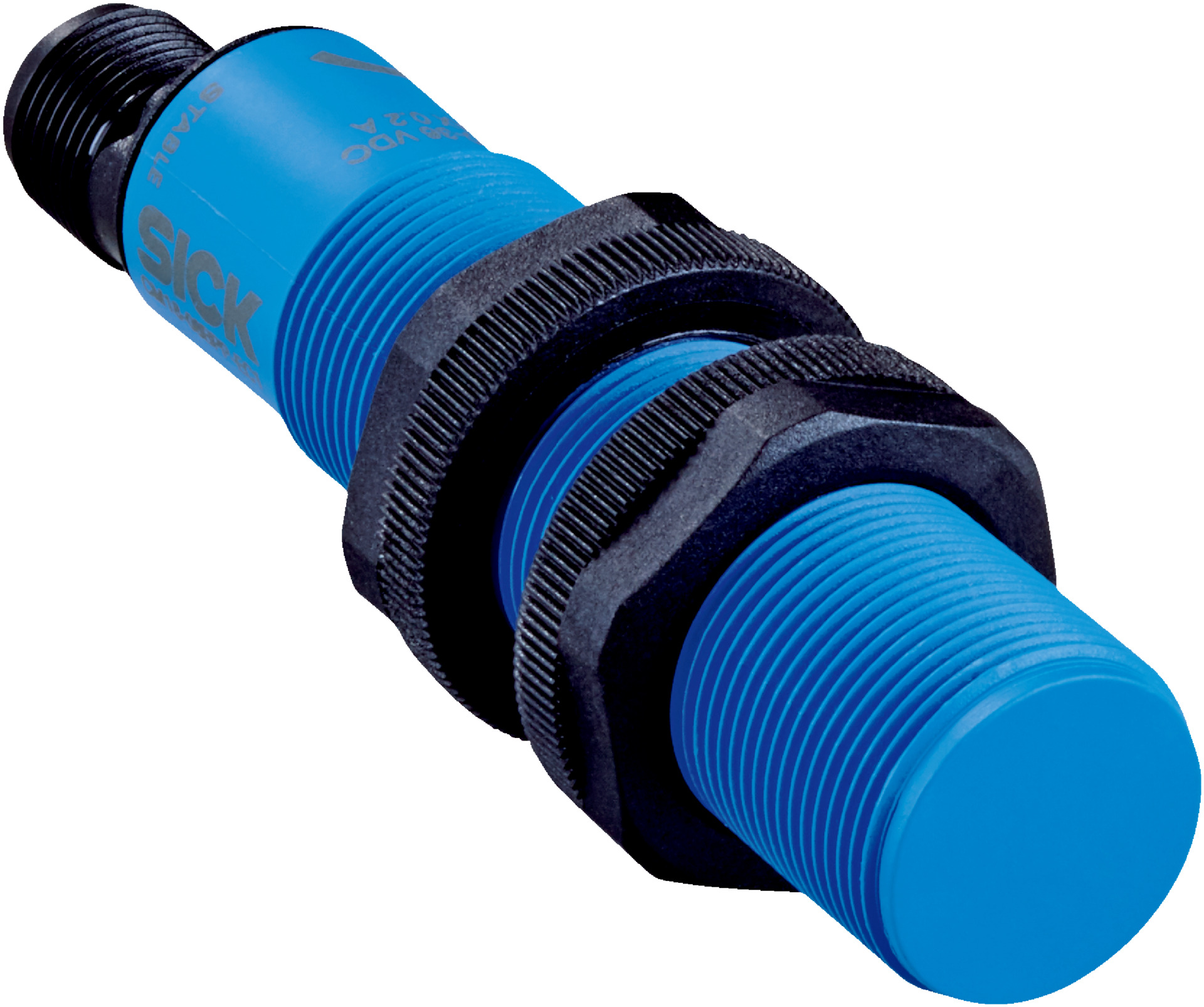

Inductive Proximity Sensor M18 | PNP Output | IP67/IP68/IP69K Rated | 8mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a sensing range of up to 8 mm and a robust IP67/IP68/IP69K enclosure rating. Ideal for machine safety and control systems, this sensor operates efficiently with a low current consumption of 12 mA, ensuring durability and energy efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 50 Hz
- Sensing range Sn: 0 to 8 mm
- Safe sensing range Sa: 6.12 mm
- Output type: PNP, complementary, wire configurable
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -30°C to +85°C
- Housing material: Plastic, PBT
- Thread size: M18 x 1
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 85mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Sensing range up to 8 mm with safe sensing range of 6.12 mm
- Flush installation type
- Switching frequency of 50 Hz
- PNP switching output with complementary and wire configurable function
- Connection via male M12 4-pin connector
- Adjustment potentiometer with 11 turns for sensitivity
- High enclosure rating: IP67, IP68, and IP69K
- Shock and vibration resistant according to EN 60068
- Short-circuit and power-up pulse protection included
- Wide ambient operating temperature range from -30°C to +85°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption (12 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

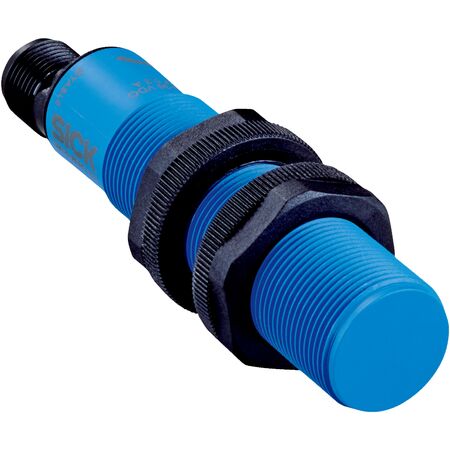

The SICK CM18-08BPP-EC1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
