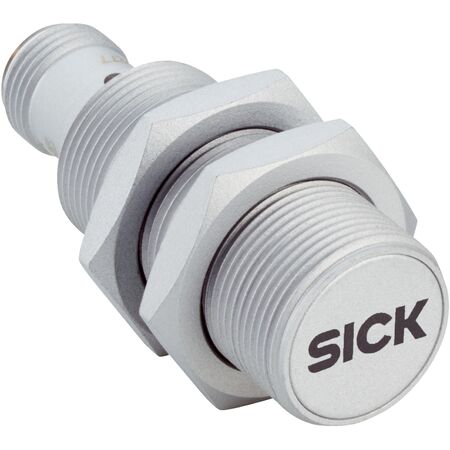

Inductive Proximity Sensor M18 | PNP Output | IP68 Rated | 8mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation. With a sensing range of 8 mm and a high switching frequency of 1,500 Hz, it excels in challenging environments. Its robust IP68 rated enclosure ensures durability, making it ideal for machine safety and position sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 1.8 V
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ ±10% to ±15%
- Continuous current: ≤ 200 mA
- No load current: ≤ 15 mA
- Off-state current: ≤ 0.1 mA
- Short-circuit protection included
- Magnetic field strength tolerance: ≤ 100 mT
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -30 °C to +85 °C
- Housing material: PTFE coated brass
- Sensing face material: Plastic with PTFE coating
- Protection class: II
- Switching output: PNP, normally open
- Connection type: Male connector M12, 4-pin
- Dimensions (H x L x W): 52mm x 52mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with PTFE coated brass
- Flush installation type with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.4 mm
- High switching frequency of 1,500 Hz
- PNP switching output with NO function
- IP68 rated enclosure for harsh environments
- Magnetic-field-resistant with reduction factor 1
- Includes mounting nut and washers with PTFE coating
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Welding range and difficult application conditions
- Machine safety and position sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable PTFE coating extends product life reducing waste
- Energy-efficient operation with low current consumption
- Robust design minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK IMR18-08BPSTC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
