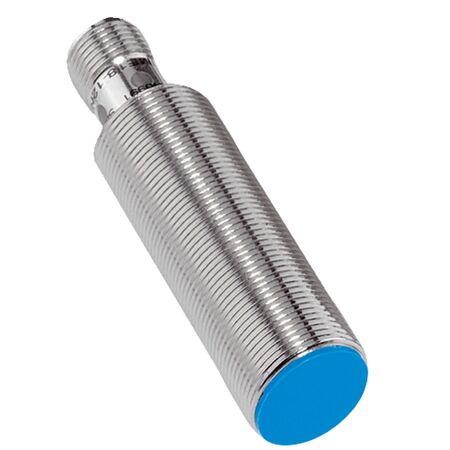

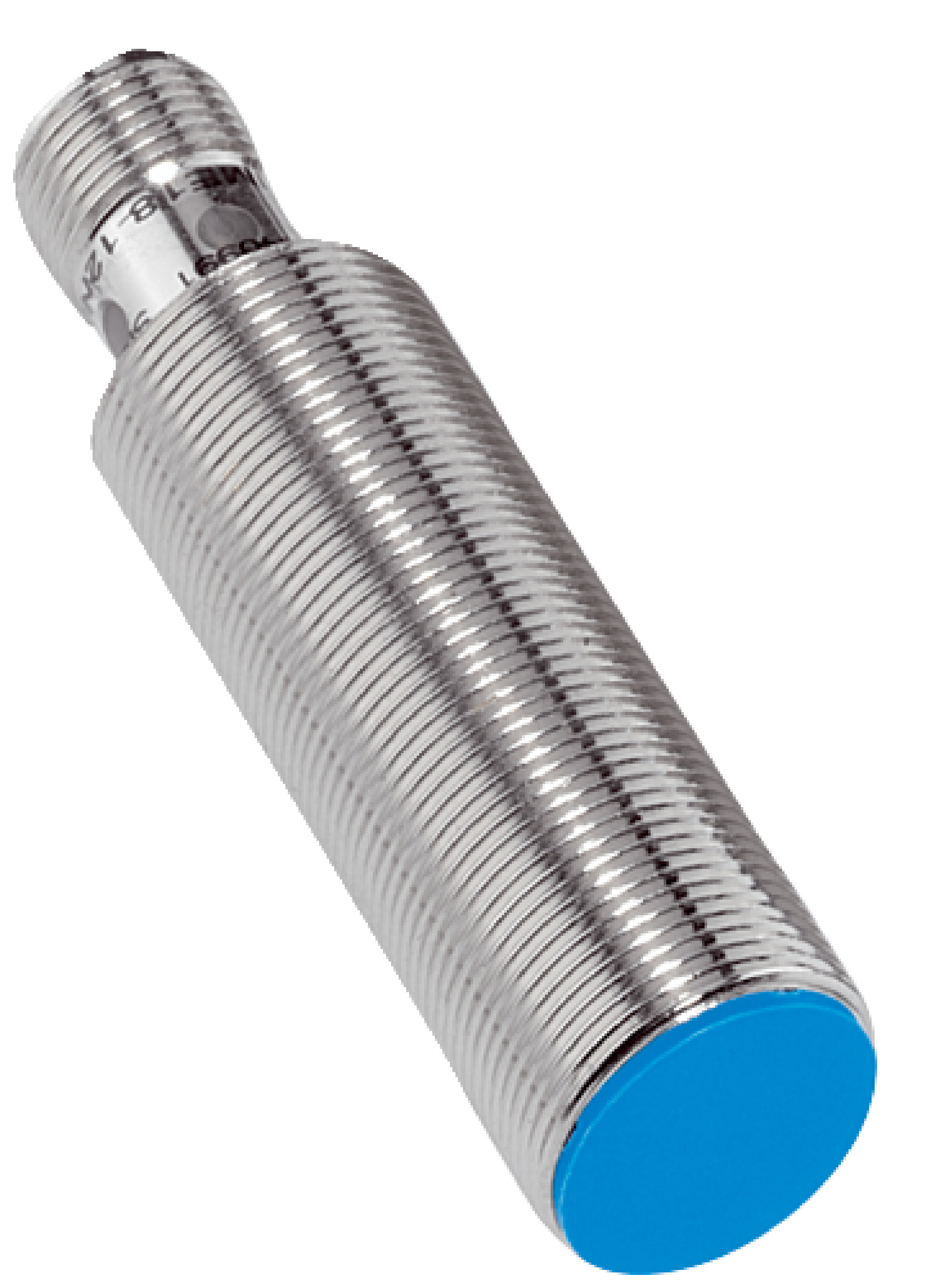

Inductive Proximity Sensor M18 | PNP NO Output | IP67 Rated | 12mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a sensing range of 12 mm and a PNP normally open output. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in machinery, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 500 Hz
- Sensing range (Sn): 12 mm
- Safe sensing range (Sa): 9.72 mm
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Operating temperature: -25 °C to +75 °C
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Shock resistance: 30 g, 11 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with quasi-flush installation
- Sensing range of 12 mm with triple sensing range feature
- Switching frequency up to 500 Hz with PNP NO output
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer guidelines to ensure proper mounting and electrical connection.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in assembly lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK IME18-12BPSZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
