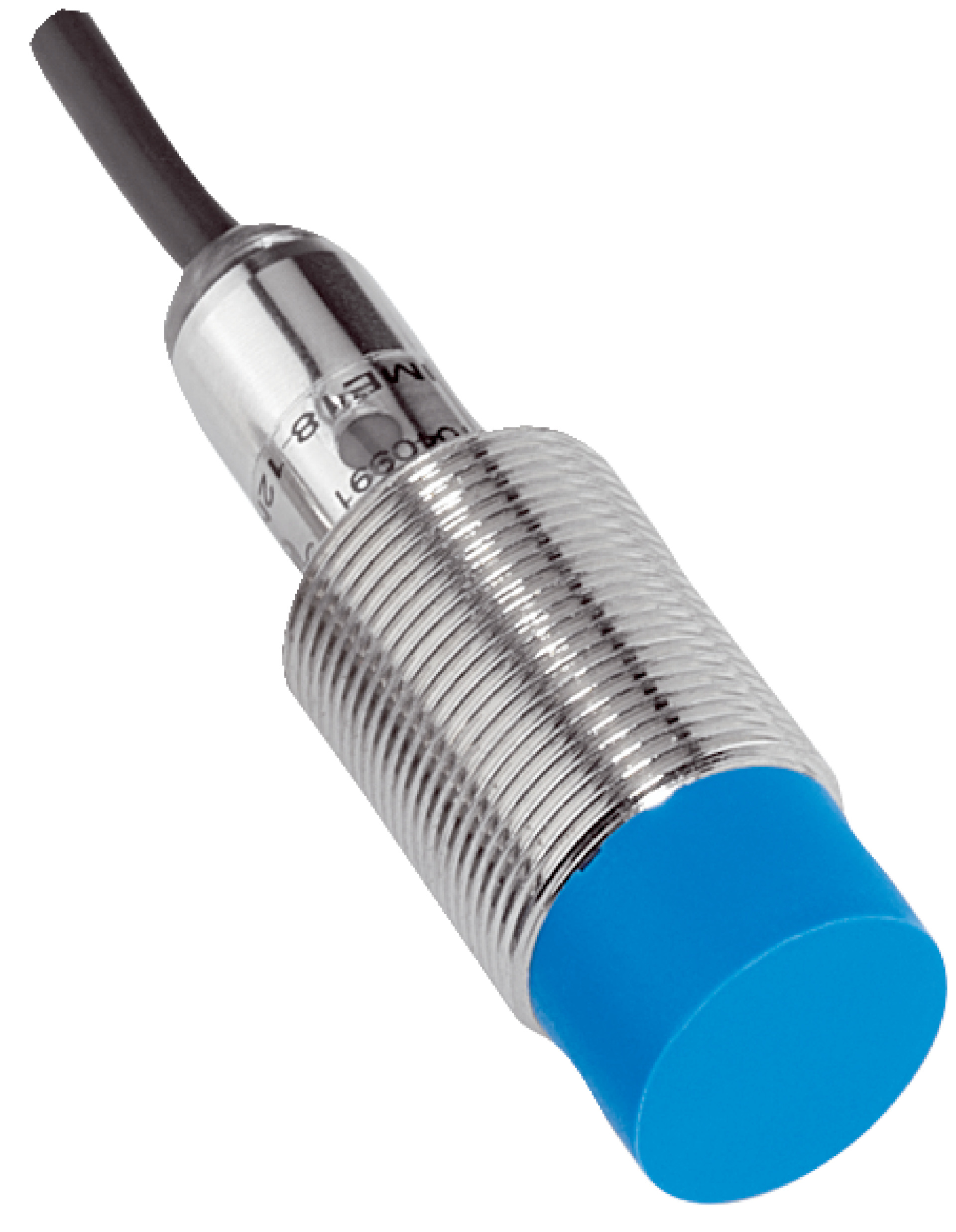

Inductive Proximity Sensor M18 | PNP Normally Closed | IP67 Rated | 12mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a PNP normally closed output and a sensing range of 12 mm. With an IP67 rated enclosure for dust and water protection, this sensor operates efficiently in temperatures from -25 °C to +75 °C, making it ideal for manufacturing lines and machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | PNP Normally Closed | IP67 Rated | 12mm Sensing Range | by SICK
Brand: SICK
SKU: 1040987
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, SICK M18 Sensor, PNP Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 1,000 Hz
- Output function: PNP normally closed (NC)
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: 3-wire, 2 m length, PVC material, 0.25 mm² conductor size
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M18 x 1
- Housing length: 48 mm
- Thread length: 23 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 48mm x 48mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- High switching frequency of 1,000 Hz
- PNP normally closed switching output
- Cable connection type with 3-wire, 2 m PVC cable
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer guidelines to ensure correct wiring and mounting torque.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

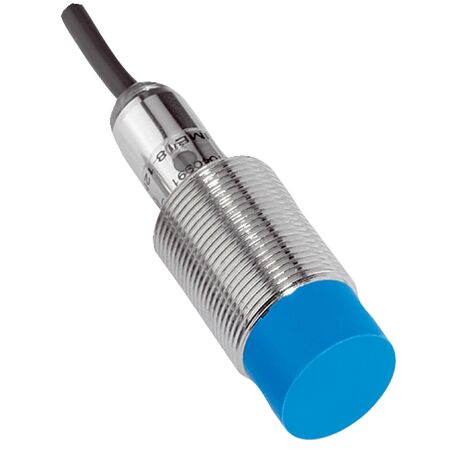

The SICK IME18-12NPOZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
