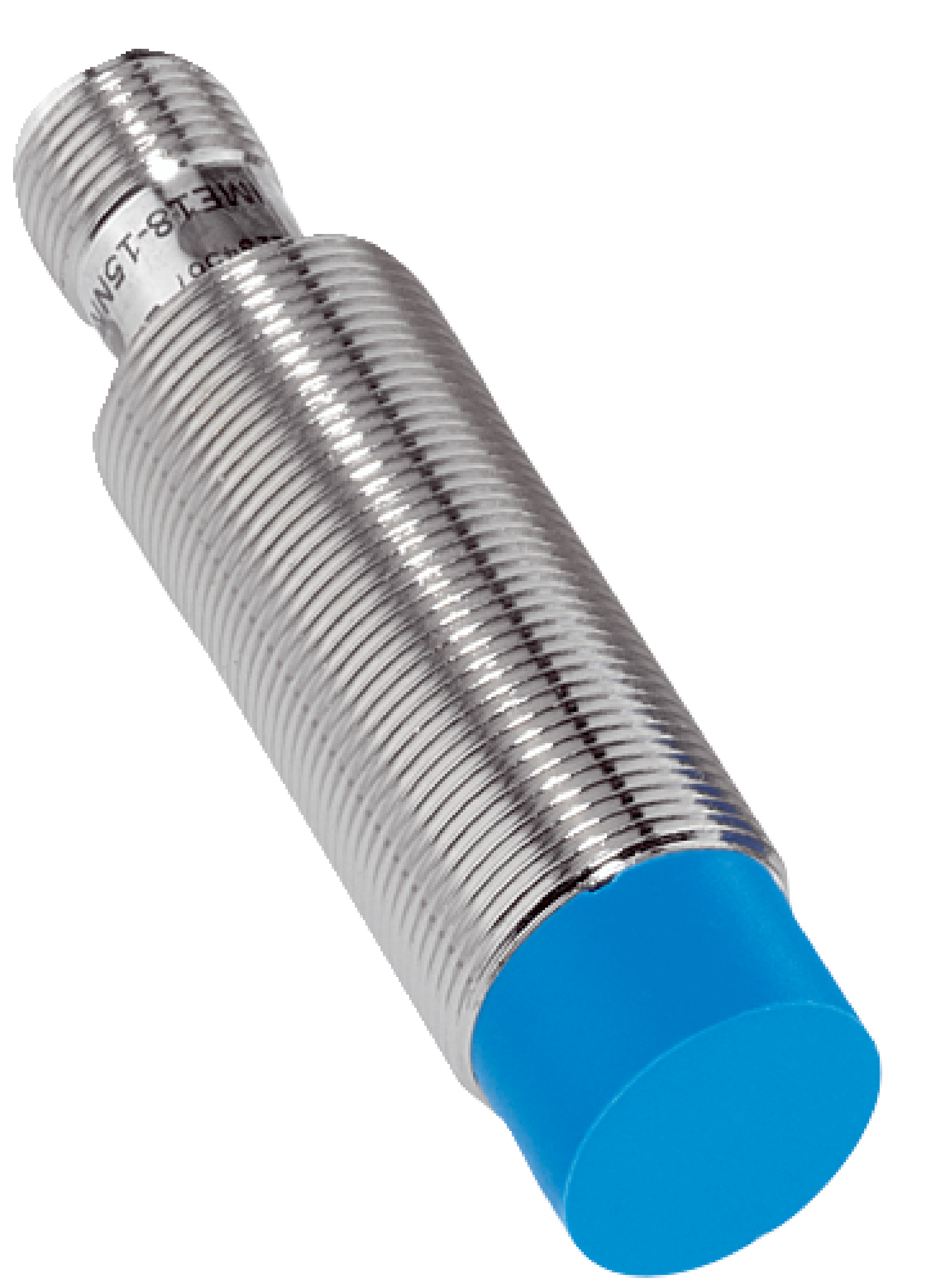

Inductive Proximity Sensor M18 | PNP Normally Open Output | IP67 Enclosure | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a PNP normally open output and an IP67 enclosure for dust and water protection. With a sensing range of 12 mm and a robust brass housing, it's perfect for harsh environments and manufacturing lines, ensuring durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | PNP Normally Open Output | IP67 Enclosure | by SICK
Brand: SICK
SKU: 1040982
Alternatively Known As: Inductive Proximity Sensor M18, SICK IME18 Sensor, PNP Proximity Switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP normally open
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M18 x 1 with non-flush installation type
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- Switching frequency up to 1,000 Hz with PNP normally open output
- Connection via male M12 4-pin connector
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant up to 30 g and 11 ms
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact detection in harsh environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

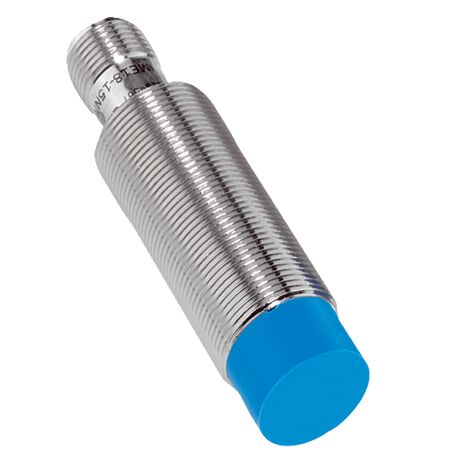

The SICK IME18-12NPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
