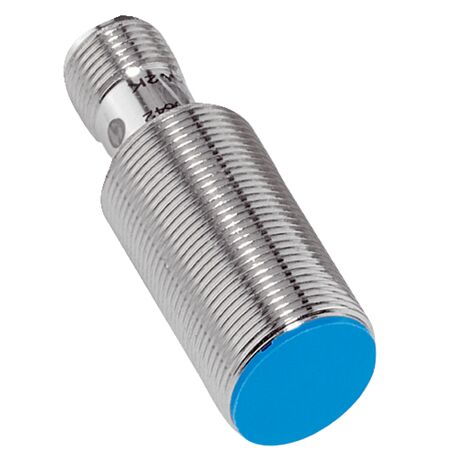

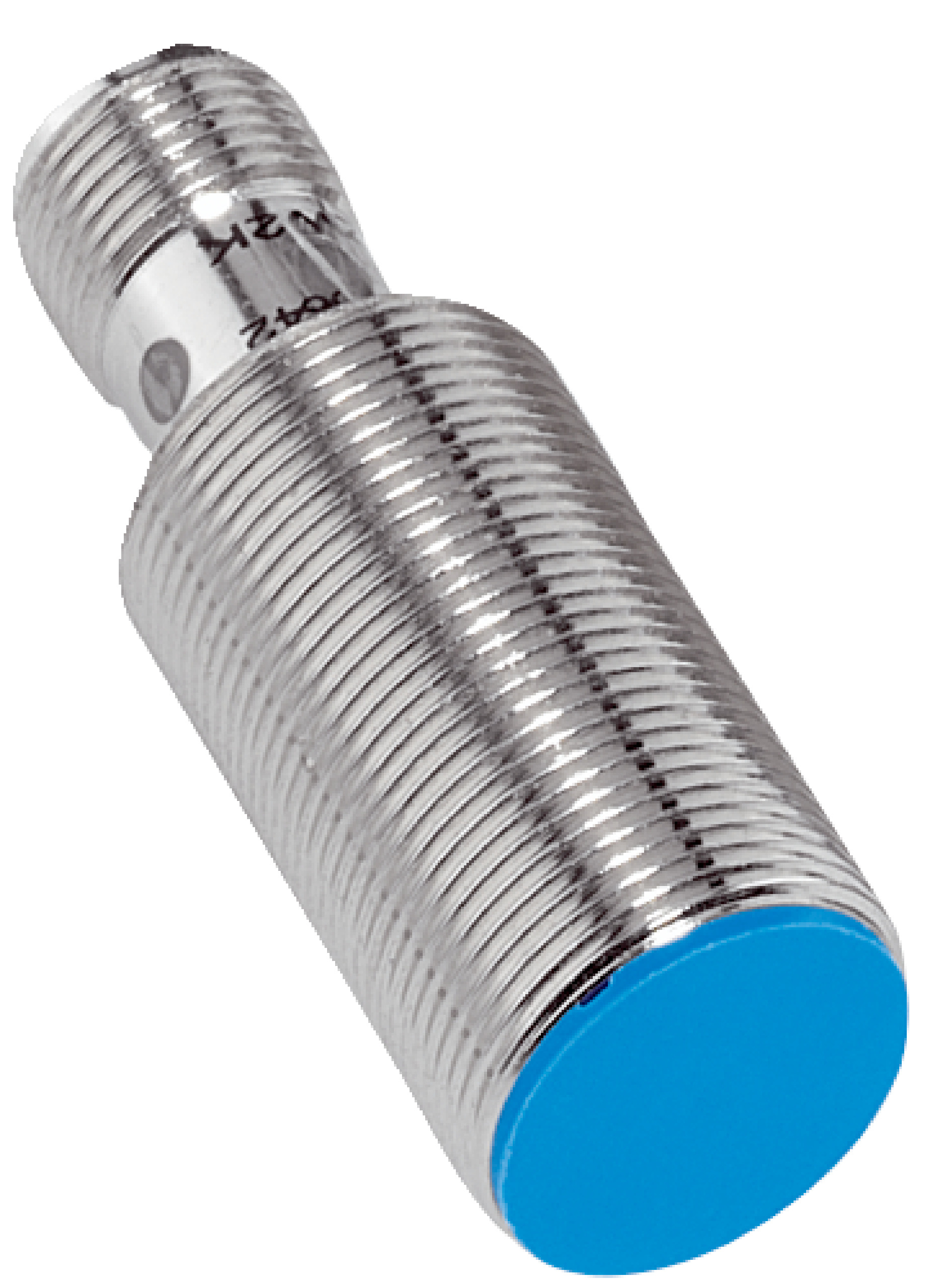

Inductive Proximity Sensor M18 | Short-Body Nickel-Plated Brass | 8mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a short-body nickel-plated brass housing and an 8mm sensing range. With a robust IP67 rating for dust and water protection, this sensor is perfect for metal detection and position sensing in manufacturing lines, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | Short-Body Nickel-Plated Brass | 8mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1040965
Alternatively Known As: Inductive Proximity Sensor M18, SICK IME18 Sensor, PNP Proximity Switch, Metal Proximity Sensor
Technical Specifications
- Housing: Short-body, nickel-plated brass
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Installation type: Flush
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 50 mm
- Thread length: 33 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Flush installation type
- Switching frequency of 1,000 Hz
- PNP switching output with normally open function
- Connection via male M12, 4-pin connector
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide supply voltage range from 10 V DC to 30 V DC
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-08BPSZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
