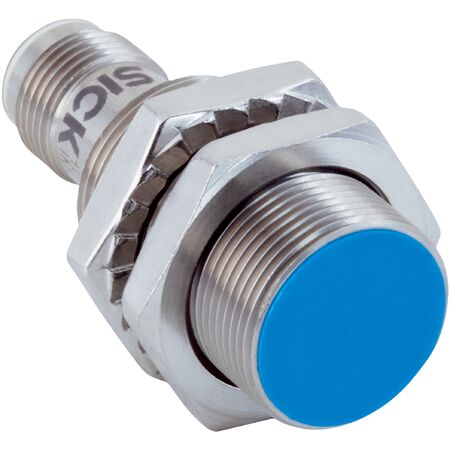

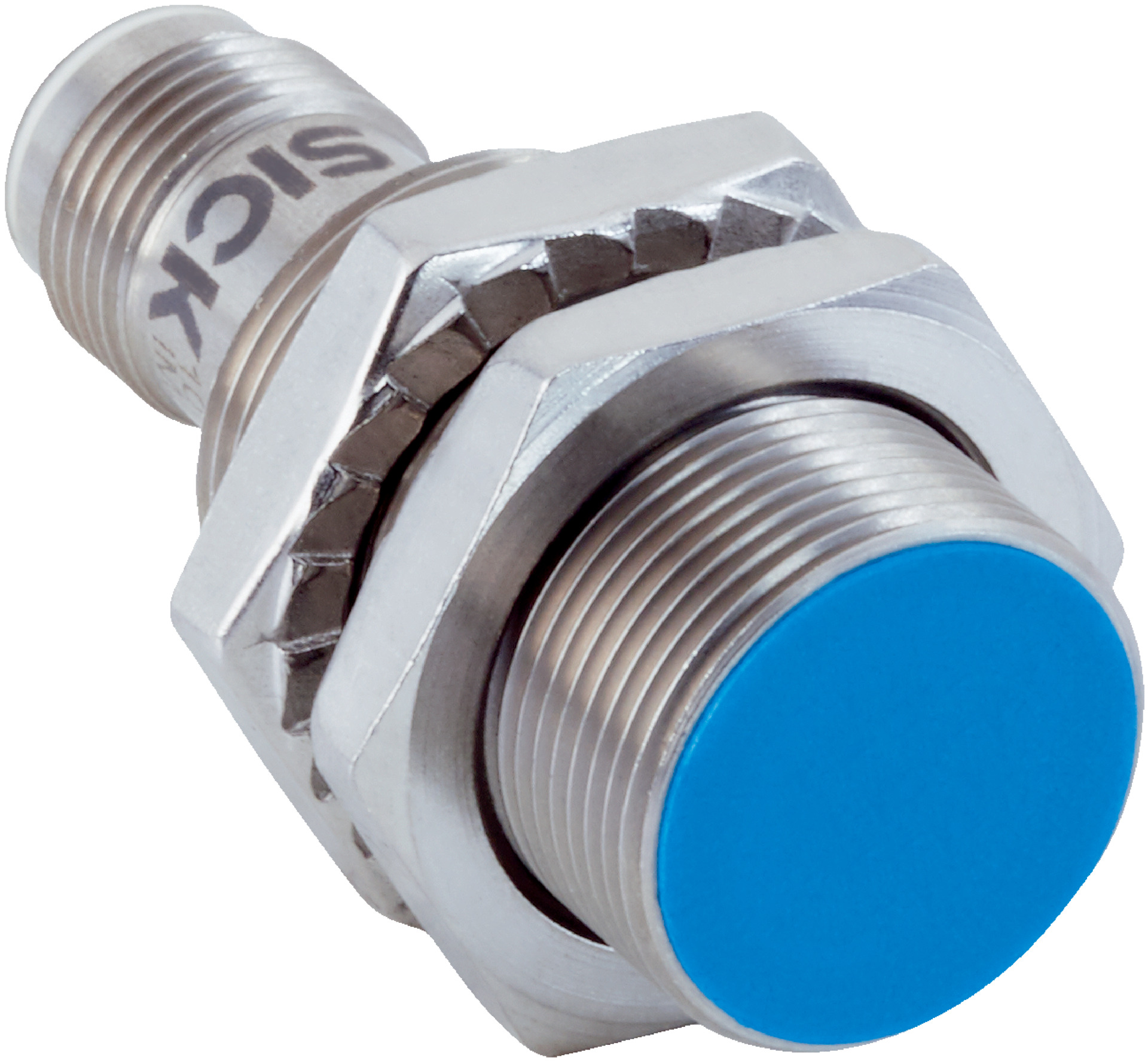

Inductive Proximity Sensor M18 | Short-Body Stainless Steel | 8mm Sensing Range | IP68 & IP69K Rated | by SICK
Inductive proximity sensor M18 designed for industrial automation, featuring a robust short-body stainless steel housing and an 8mm sensing range. With a high switching frequency of 1,000 Hz and IP68/IP69K ratings, this sensor is perfect for harsh environments, ensuring reliable object detection even in the presence of coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | Short-Body Stainless Steel | 8mm Sensing Range | IP68 & IP69K Rated | by SICK
Brand: SICK
SKU: 1072822
Alternatively Known As: Inductive Proximity Sensor M18, Proximity Switch, Inductive Sensor 8mm, PNP Proximity Sensor
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Installation type: Quasi-flush
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Protection class: III
- Dimensions (H x L x W): 45mm x 45mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Quasi-flush installation type
- Switching frequency up to 1,000 Hz
- PNP switching output with NC function
- DC 3-wire electrical wiring
- IP68 and IP69K rated enclosure for high protection
- Resistant against coolant lubricants
- Visual adjustment indicator and temperature resistance
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments extends product life
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB18-08BPOVC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
